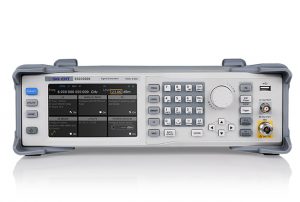

SSG5000X Series RF Signal Generator

  • Frequency up to 4 GHz/6 GHz
  • 001 Hz frequency setting resolution
  • Maximum output power up to +26 dBm (typ.)
  • Phase Noise: -120 dBc/ Hz @ 1 GHz, 20 kHz offset (typ.)
  • Single pulse, double pulse and pulse train generator
    (option)

Product Overview

SIGLENT’S SSG5000X series of signal generators can generate analog and vector signals, and have a frequency range of 9 kHz to 4 GHz/6 GHz. They feature industry-leading performance in phase noise, spectral purity, bandwidth, EVM, output power. The internal IQ modulation generator and waveform playback function make it easy to create even the most complex signal types. They also cover the most important RF band for digital wireless communications and include standard waveform files. The SIGLENT SSG5000X are powerful and cost-effective sources that are ideal for R&D, education, and manufacturing.

Frequency Range Amplitude Resolution Phase Noise I/Q Modulation Price

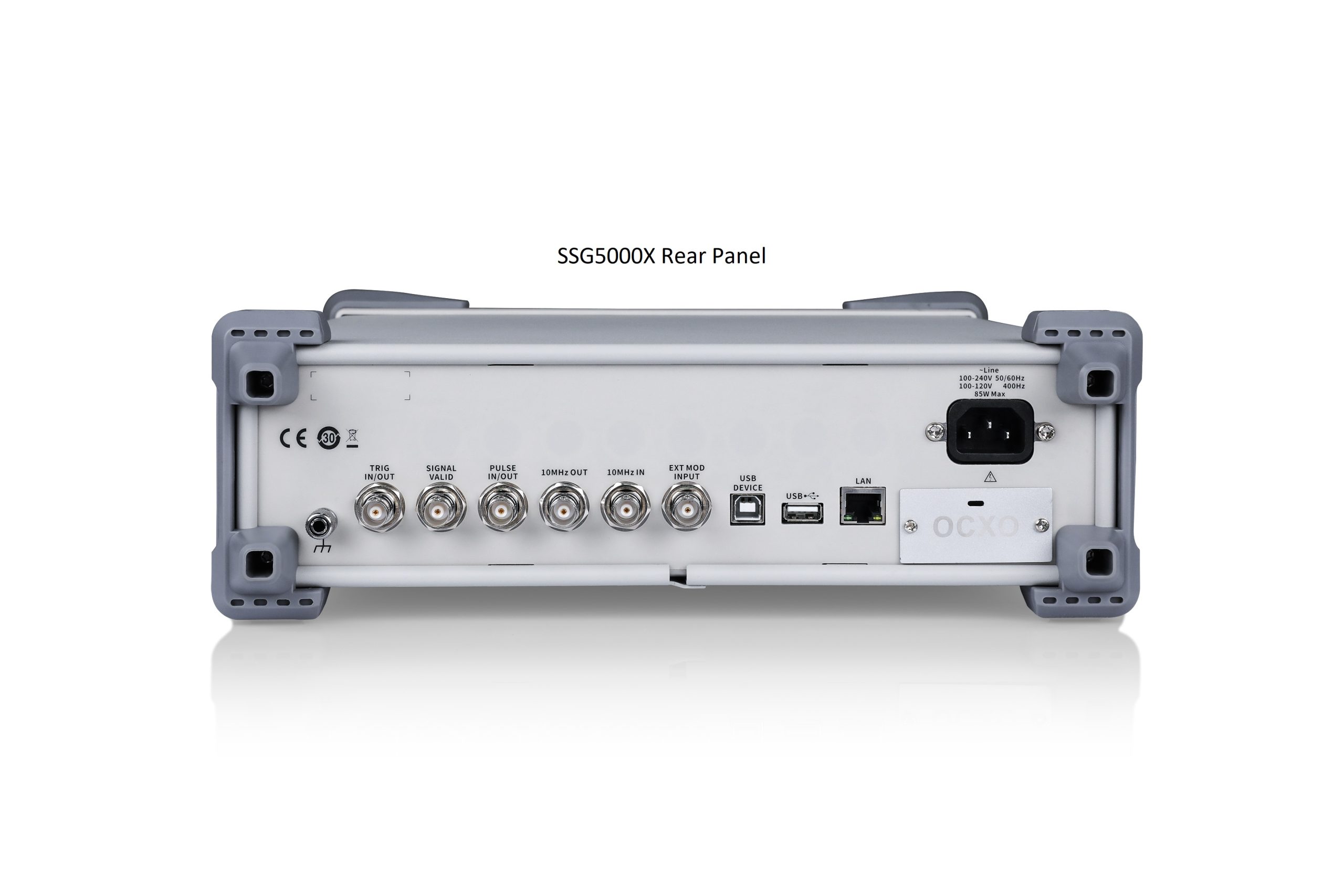

SSG5040X CW MODE 9 kHz-4 GHz 0.01 dB -120 dBc/Hz @1 GHz, offset 20 kHz (typ.) No € 5,299 Buy Now
SSG5060X CW MODE 9 kHz-6 GHz 0.01 dB -120 dBc/Hz @1 GHz, offset 20 kHz (typ.) No € 7,269 Buy Now

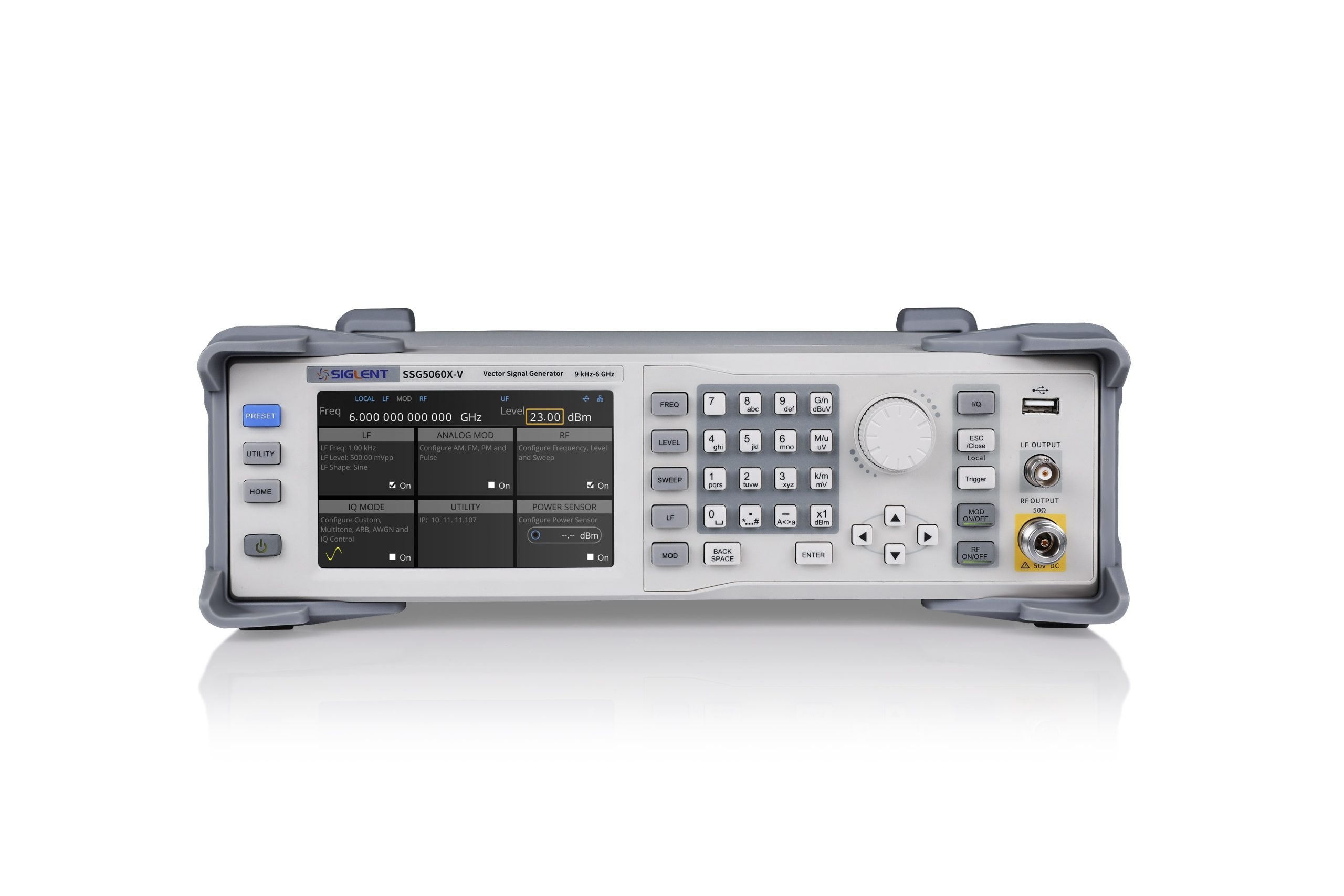

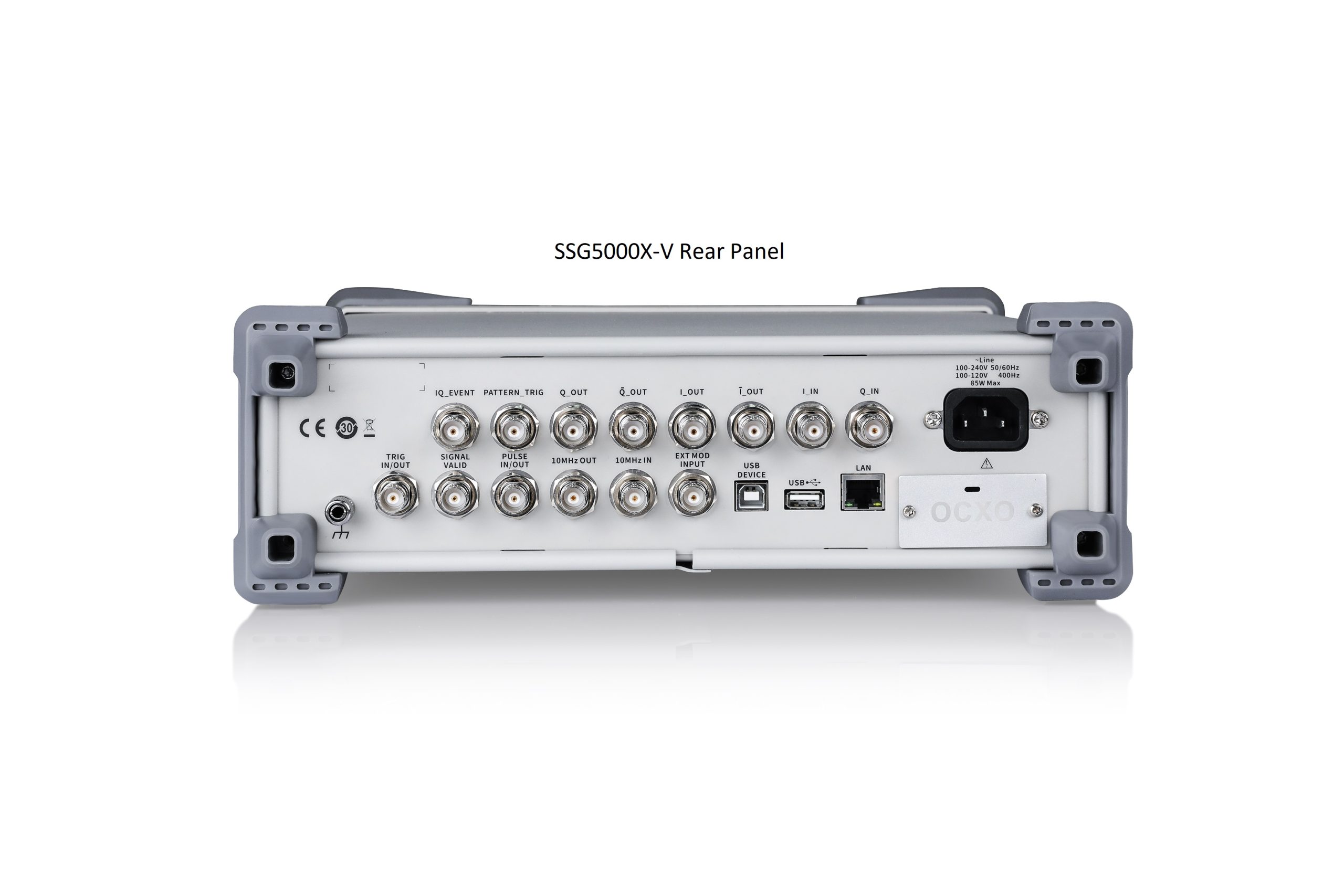

SSG5040X-V CW MODE 9 kHz - 4 GHz; IQ MODE 10 MHz - 4 GHz 0.01 dB -120 dBc/Hz @1 GHz, offset 20 kHz (typ.) Yes € 8,999 Buy Now
SSG5060X-V CW MODE 9 kHz - 6 GHz; IQ MODE 10 MHz - 6 GHz 0.01 dB -120 dBc/Hz @1 GHz, offset 20 kHz (typ.) Yes € 10,999 Buy Now

Key Features

  • Frequency up to 4 GHz/6 GHz
  • 001 Hz frequency setting resolution
  • Maximum output power up to +26 dBm (typ.)
  • Phase Noise: -120 dBc/ Hz @ 1 GHz, 20 kHz offset (typ.)
  • User-programmable flatness correction
  • Provides AM, FM, and PM analog modulation with internal, external, or Int+Ext source
  • Single pulse, double pulse, and pulse train generator (option)
  • SSG5000X-V: Internal IQ modulation with 150 MHz modulation bandwidth with perfect in-factory calibration
  • SSG5000X-V: Built-in digital communication standards, sample files for 5G-NR, LTE, WCDMA, WLAN, Blue-Tooth, CDMA
  • SSG5000X-V: Internal Custom mode to generate common IQ signals such as QAM, FSK, ASK, MSK
  • SSG5000X-V: Analog differential I/Q outputs
  • SSG5000X-V: External analog I/Q input
  • USB-power meter measurement
  • 5-inch TFT capacitive touch screen, mouse, and keyboard support
  • Web browser remote control on PC and mobile terminals
  • Standard interfaces: USB Host, USB Device (USB TMC), and LAN (VXI-11, Socket, Telnet). Optional interface: GPIB

“In a side-by-side comparison, the Siglent gear simply performed tasks that Keysight gear could not.”

– Darren M., Research & Development

Need more information? Call us now +49 821 666 0 111 0

Product Characteristics

Simplify signal creation and accelerate test View more

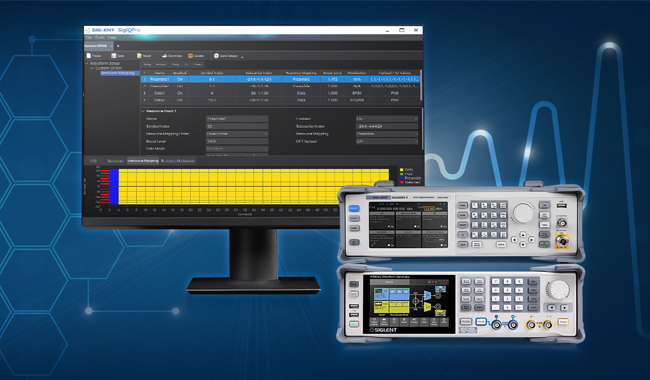

Simplify signal creation and accelerate test

  • SSG5000X-V and SigIQPro signal generation software integrate simulation, design and test to easily meet the needs of users at all stages of design, R&D, and production.
  • SigIQPro is a flexible PC-based signal generation software that takes signal generation to a whole new level, supporting Bluetooth, IoT, Custom OFDM, Custom IQ, and in the future, 5G NR, LTE and WLAN, and more.
  • SigIQPro is specially developed for easy generation of protocol and modulated signals, with a user interface that supports intuitive operation and provides relevant documentation that makes it easy to create standards-compliant waveforms for a wide range of applications.
  • TRY BEFORE YOU BUY! SigIQPro provides 30 free trials of each feature for unrestricted use of the functions with your existing compatible signal generators.
  • Click to view more SigIQPro signal generation software configuration, pricing, and device details.

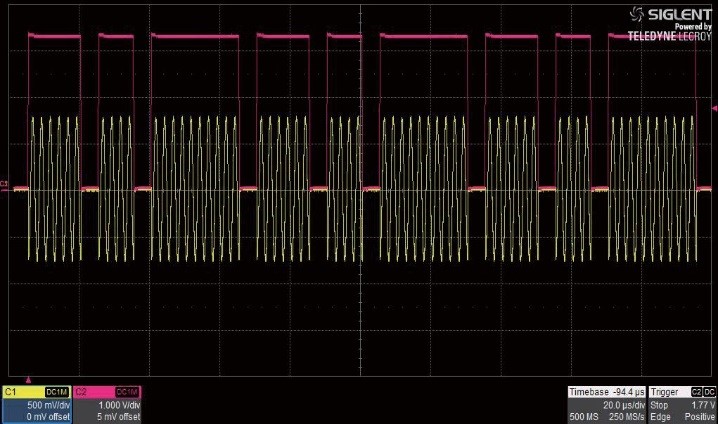

Double pulse modulation View more

Double pulse modulation

Pulse train generator View more

Pulse train generator

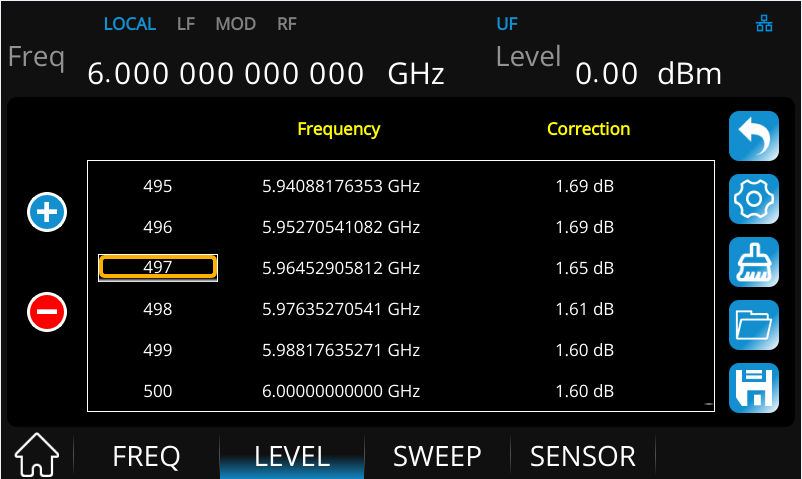

Use an external USB power sensor to compensate cable losses View more

Use an external USB power sensor to compensate cable losses

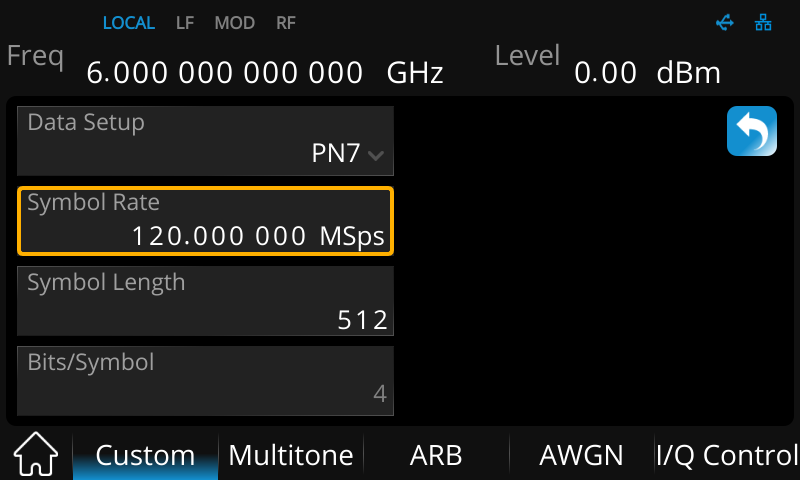

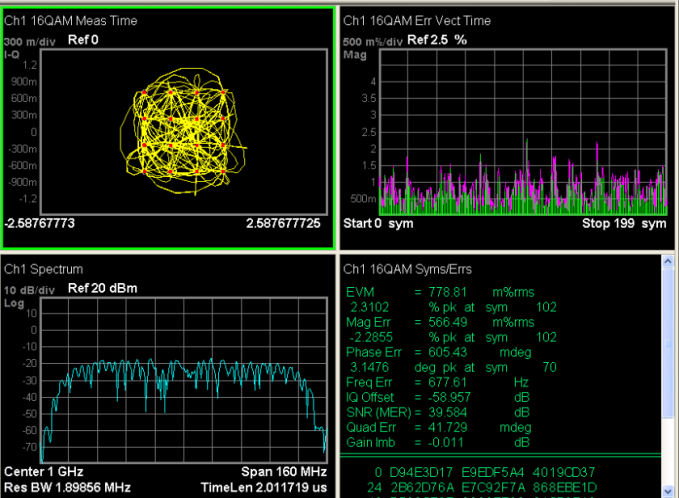

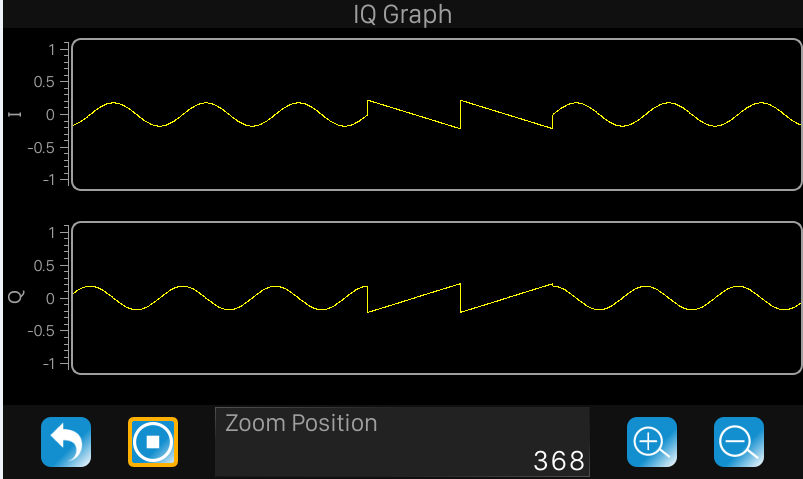

Custom mode can generate IQ modulated signals such as QAM, PSK, ASK, FSK, sample rate up to 120 Msps View more

Custom mode can generate IQ modulated signals such as QAM, PSK, ASK, FSK, sample rate up to 120 Msps

Multi-tone mode to output multi-tone signal waveform sequences View more

Multi-tone mode to output multi-tone signal waveform sequences

ARB mode to build and replay View more

ARB mode to build and replay

ARB mode to play back digital communication standard waveform files View more

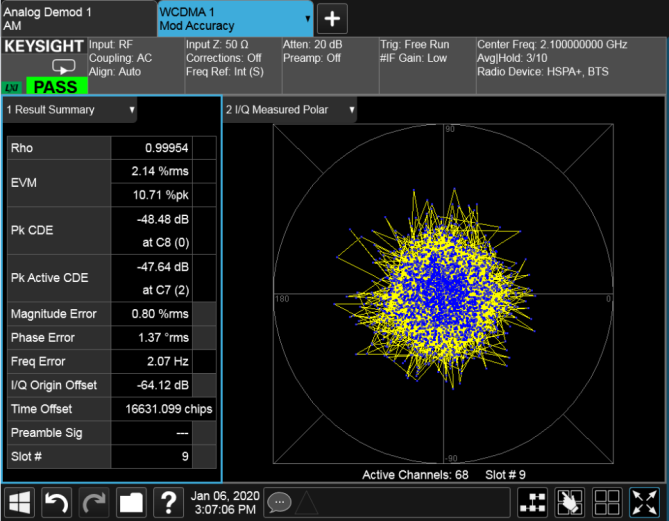

ARB mode to play back digital communication standard waveform files

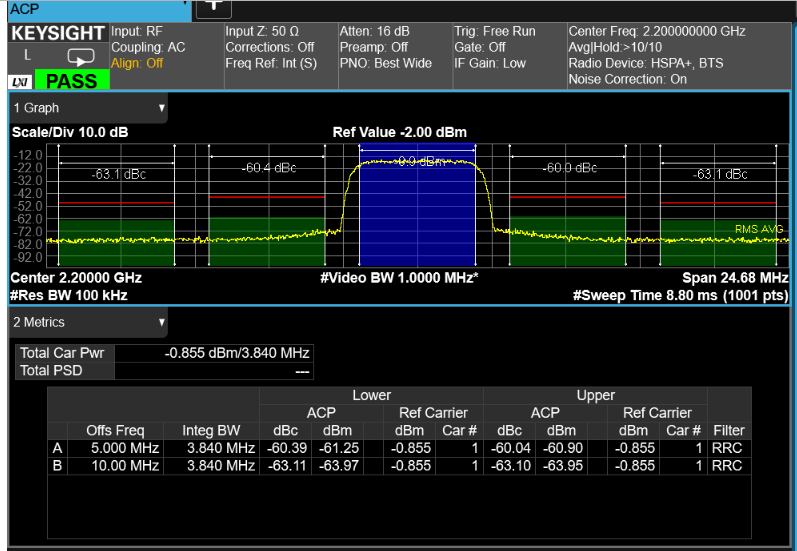

3GPP WCDMA TM1-64DPCH ACPR

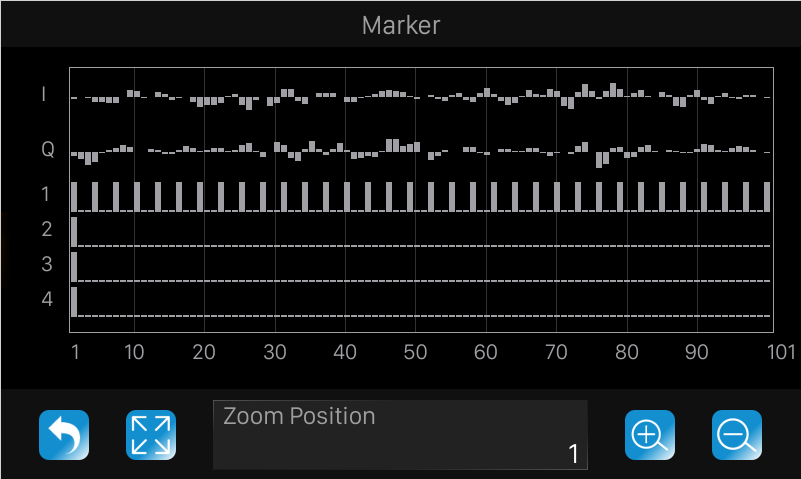

ARB mode can be used to marker label symbols of the waveform files and simultaneously output a pulse from the IQ_Event interface. Perfect for synchronize another device. View more

ARB mode can be used to marker label symbols of the waveform files and simultaneously output a pulse from the IQ_Event interface. Perfect for synchronize another device.

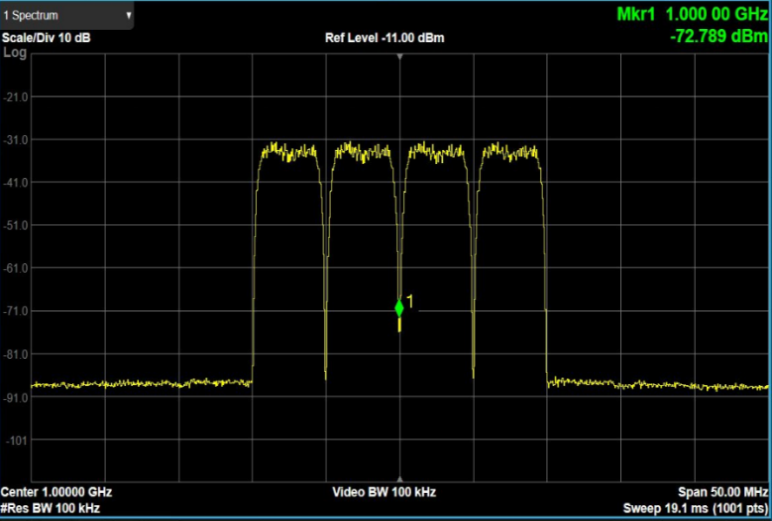

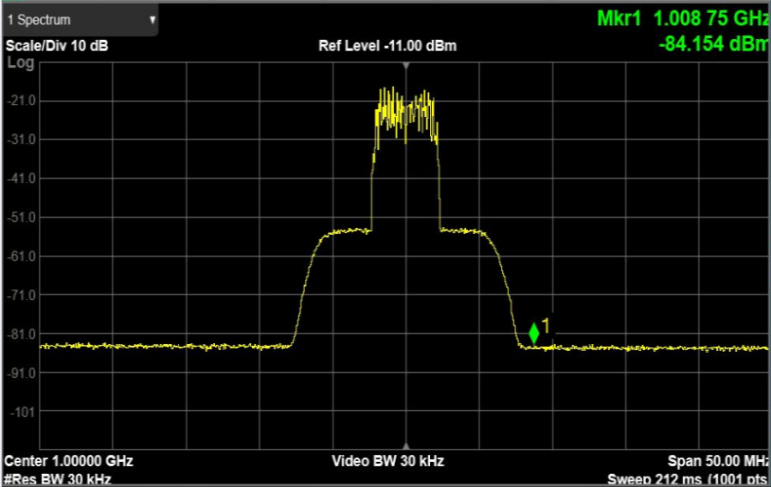

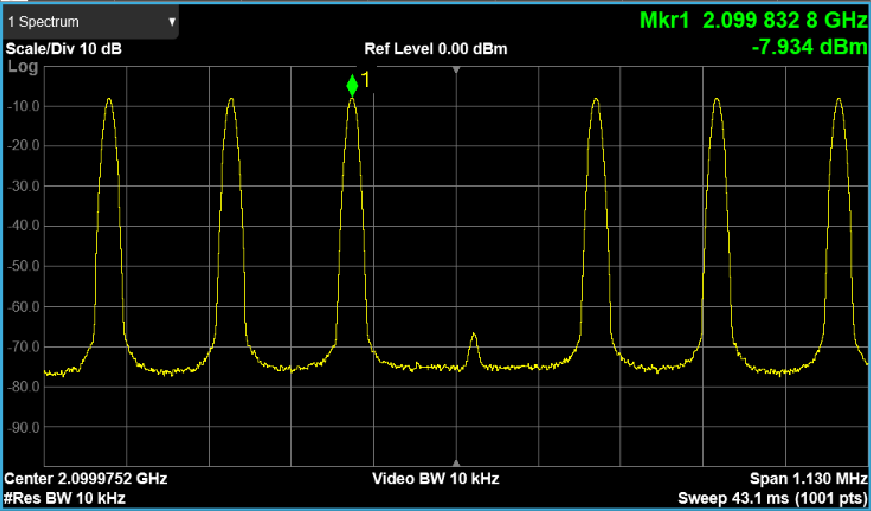

ARB mode to generate multi-carrier signals View more

ARB mode to generate multi-carrier signals

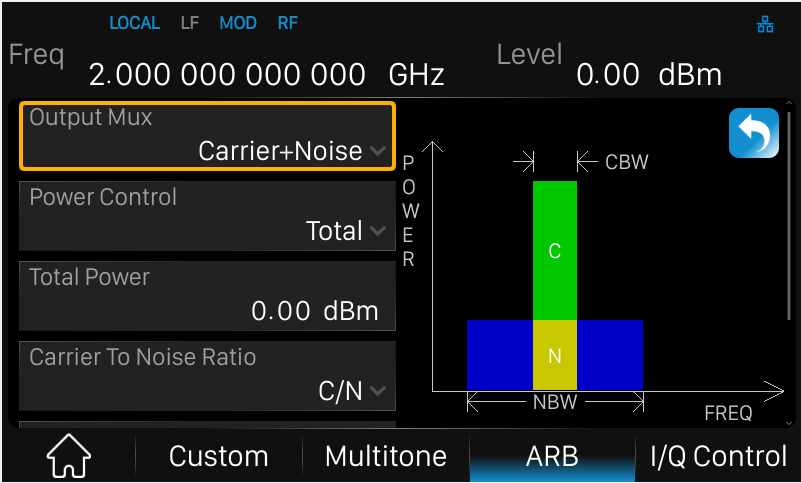

ARB mode to add real time AWGN to digital IQ signals for receiver performance tests View more

ARB mode to add real time AWGN to digital IQ signals for receiver performance tests

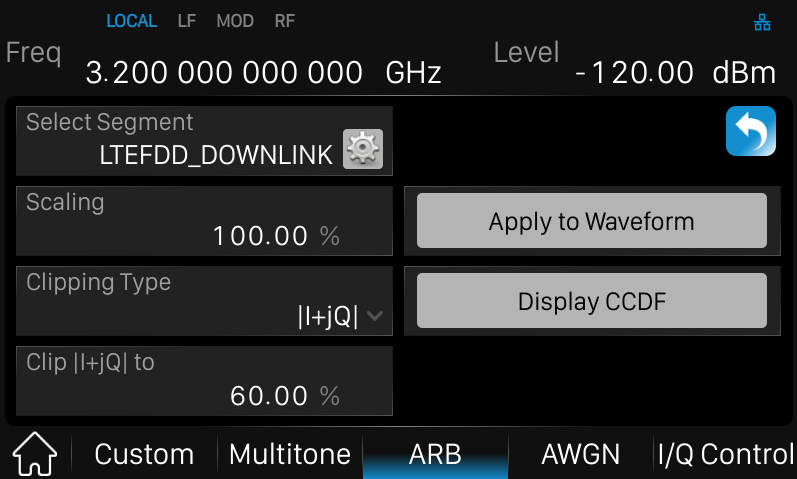

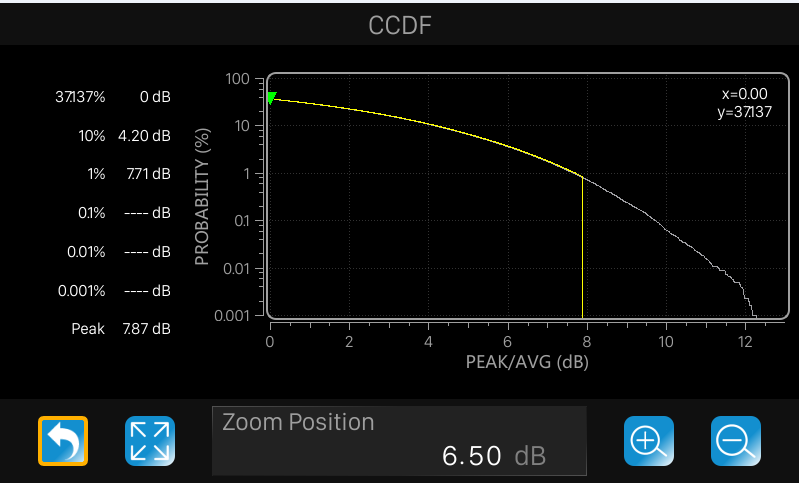

ARB mode to clip the signal of the peak power and display the CCDF (cytotoxic cell differentiation factor) View more

ARB mode to clip the signal of the peak power and display the CCDF (cytotoxic cell differentiation factor)
