SSU5000A User manual

The user manual of SSU5000A series mechanical switches.

The quick start of SSM5000A series switch matrix.

Used to connect instrument to PC for communication.

Rack Mount kit, Height 2U

Transport protective box，suitable for SNA5000A， SDS6000A ，SSA5000A，SDS5000X and SDS3000X-HDseries.   External dimensions: LxWxH=663x496x338 mm Internal dimensions: LxWxH=575x406x299 mm Weight (excluding foam sponge): 8.91kg Weight (including foam sponge): 10.61kg

USB-A to USB-B. Used to connect instrument to PC for communication.

The instrument comes standard with one power cord that meets the standards of the user’s country. Additional power cords for different regions can be purchased separately.

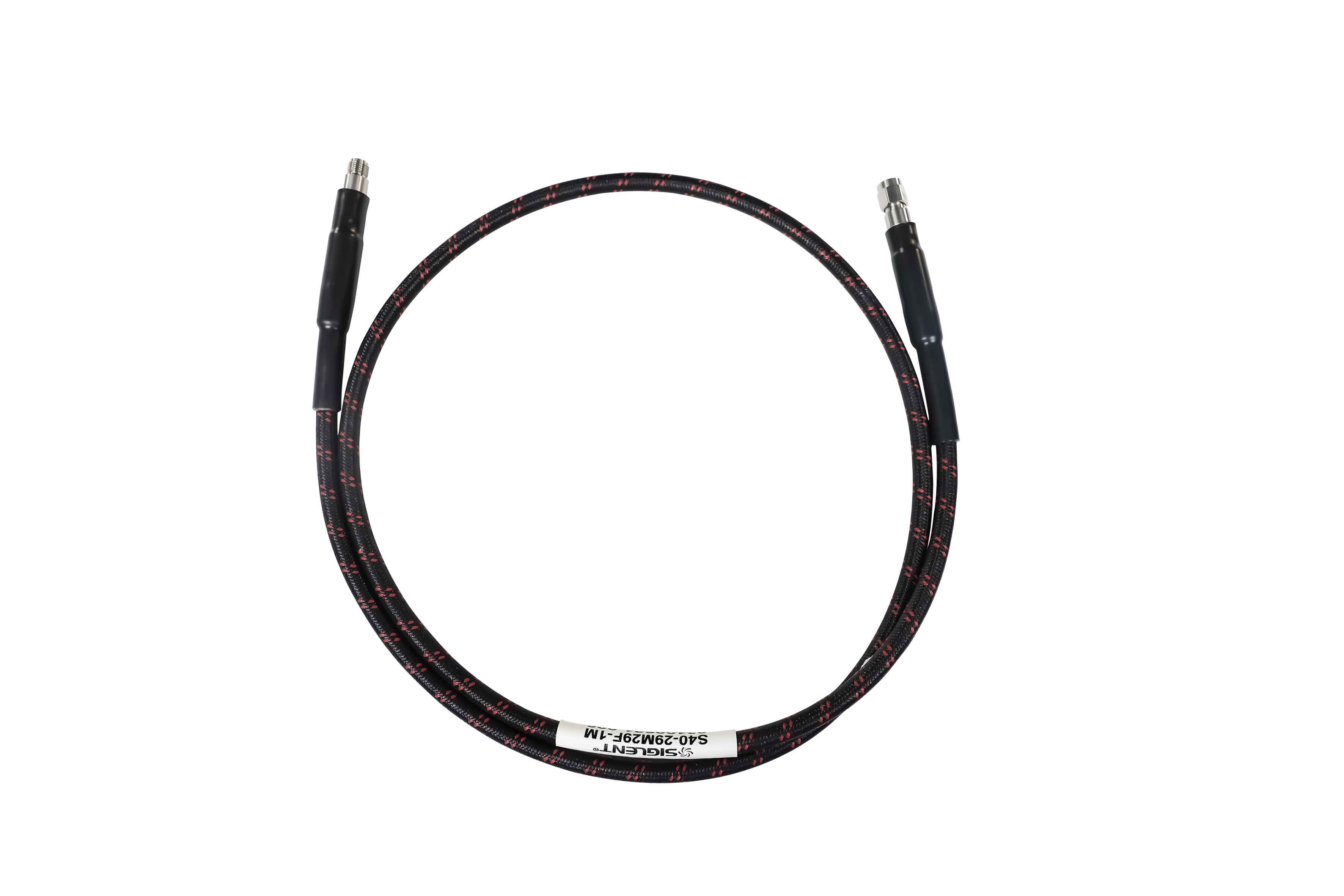

2.92F-2.92F-40A, DC~40 GHz
