SDM4065A 6½ Digits Dual-Display Digital Multimeters
- Real 6½ digits readings resolution (2,200,000 counts)
- Up to 50k rdgs/s of measurement speed
- 512 MB RAM, capable of saving up to 2M readings for caching
- Equipped with EasyDMM-X host computer control and sampling software

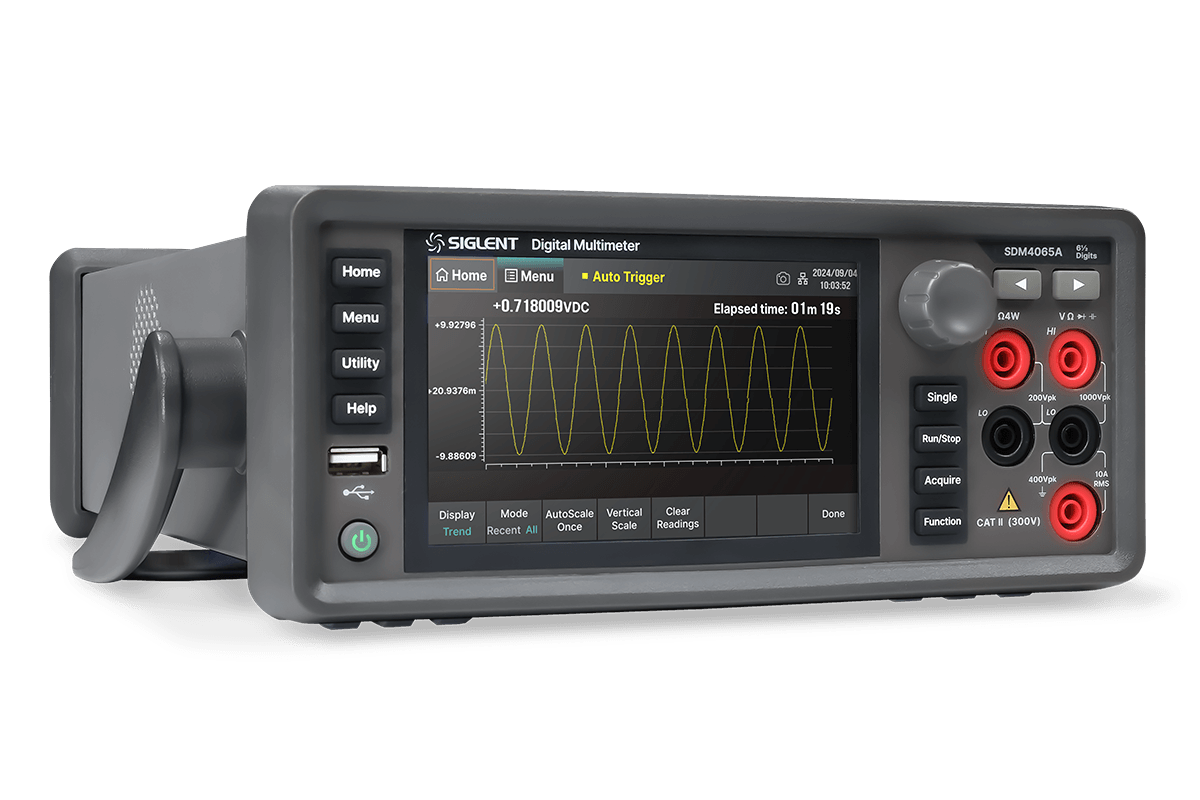

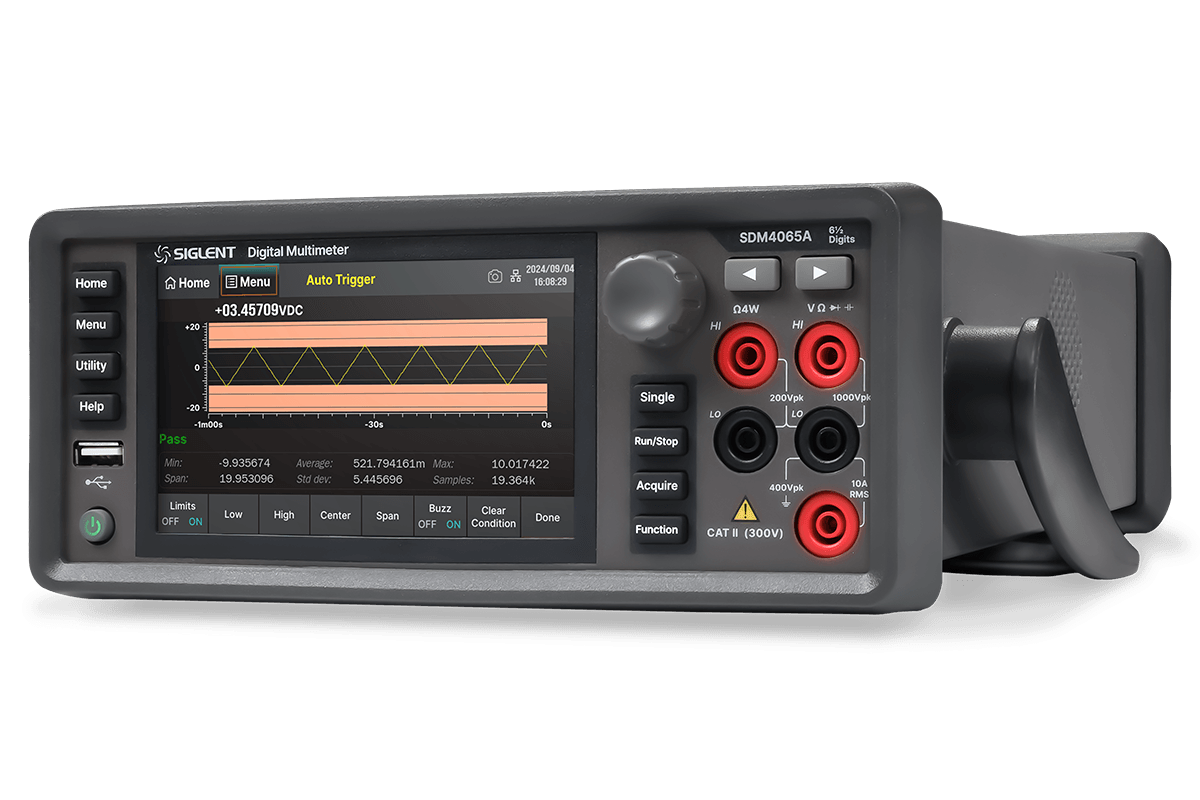

- 5-inch true color TFT-LCD display
Product Overview
SIGLENT SDM4065A and SDM4065A-SC Digital Multimeters are a 6 ½ digit DMM (2,200,000 counts) incorporating a dual–display. The SDM4065A series is especially well-suited for the needs of high-accuracy and high-precision applications measurement.
The SIGLENT SDM4065A-SC includes a multiplexer that provides multi-point measurement capabilities. The scanner features 12 multi-purpose + 4 current channels and supports the following measurement functions: DCV, ACV, DCI, ACI, 2WR, 4WR, CAP, FREQ, DIODE, CONT and TEMP ( RTD and Thermocouple ). It provides a convenient and versatile solution for test applications that require multiple measurement points or signals and is an ideal tool for R&D burn-in and production testing.
NOTE: The scanner is included on new SDM4065A-SC products only. It cannot be added to SDM4065A instruments at a later time.
| Reading Resolution | DC Voltage Accuracy in a Year | DC Voltage Measurement Range | AC Voltage Measurement Range | DC Current Measurement Range | Scanner Card | Price | ||
|---|---|---|---|---|---|---|---|---|
| SDM4065A | 6 1/2 | 0.0035% | 200 mV to 1000 V | 200 mV to 750 V | 200 µA to 10 A | No | €899 | Buy Now |
| SDM4065A-SC | 6 1/2 | 0.0035% | 200 mV to 1000 V | 200 mV to 750 V | 200 µA to 10 A | Yes | €1,118 | Buy Now |
Key Features
- Up to 50k rdgs/s of measurement speed

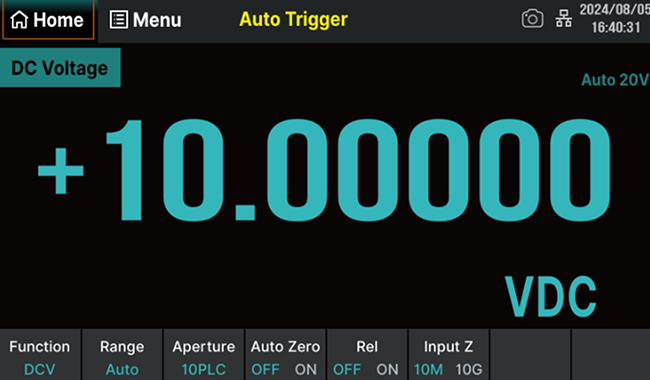

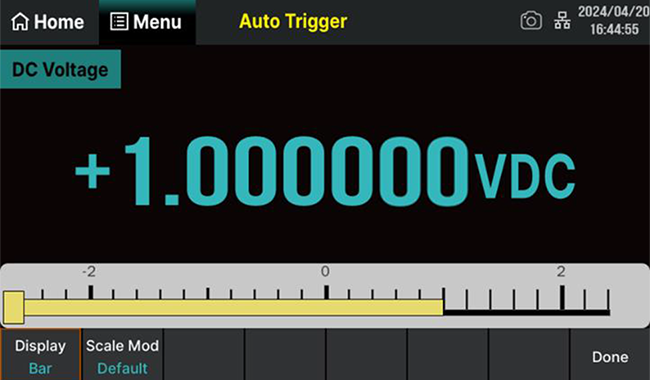

- 4 display modes: numerical, bar meter, trend chart and histogram
- 256 MB Nand Flash, supports storage of various types of files such as readings, images, configuration files
- Support standard SCPI remote control commands, equipped with EasyDMM-X host computer control and sampling software

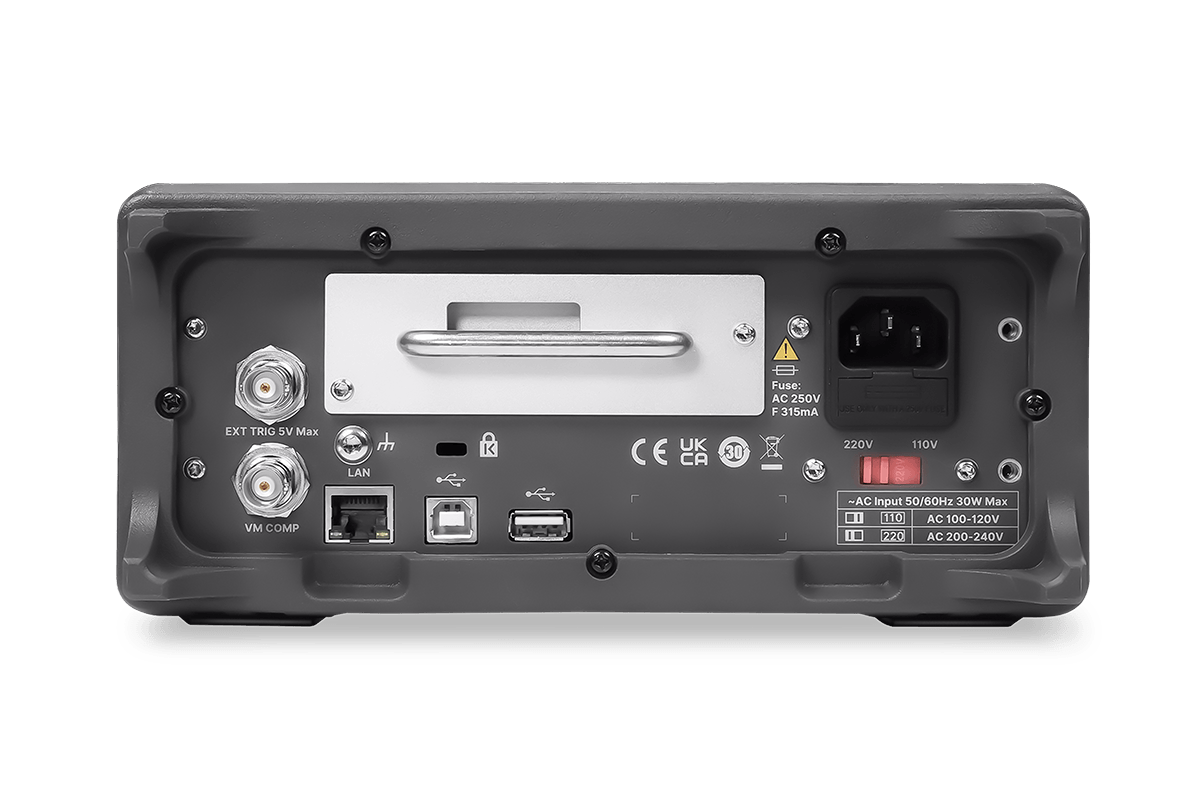

- Communications interface: USB Device (optional USB-GPIB adapter), USB Host, LAN
