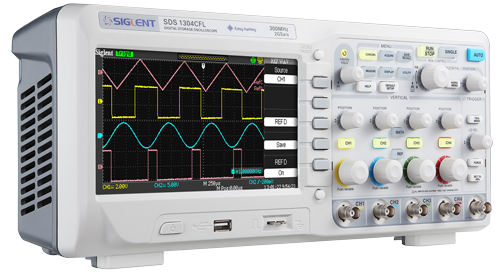

SDS1000CFL Series Digital Storage Oscilloscopes(Discontinued)
- 7″ Color TFT LCD display
- 2/4 channels, Bandwidth: 70 MHz-300 MHz
- Single channel real-time sampling rate is: 2 GSa/s, Equivalent sampling rate is 50 GSa/s
- Memory depth: 24 kpts
- Trigger types: Edge, Pulse, Video, Slope and Alternate
- Powerful Digital Filter function and Waveform recorder function
Product Overview
Siglent’s SDS1000CFL family of scopes offer faster sampling rates and higher bandwidths than other Siglent SDS1000 families of scopes. The CFL’s provide up to four channels with an external trigger input channel and bandwidths up to 300 MHz. With a set of separate vertical controls for each input channel, you don’t need to worry about accidentally modifying the wrong trace. No more switching between channels as found in some other 2 and 4 channel oscilloscopes. Powerful triggering and analysis capabilities make it easy to capture and analyze waveforms, greatly improving the test efficiency.
| Bandwidth | Channels | Real time sampling rate | Capture rate | Memory depth | Price | ||
| SDS1302CFL | 300 MHz | 2 | 2 GSa/s (half channel) 1 GSa/s (each channel) | - | 24 kpts (half channel) 12 Kpts (each channel) | €879 | Discontinued |
| SDS1304CFL | 300 MHz | 4 | 2 GSa/s (half channel) 1 GSa/s (each channel) | - | 24 kpts (half channel) 12 Kpts (each channel) | €1,139 | Discontinued |
| SDS1202CFL | 200 MHz | 2 | 2 GSa/s (half channel) 1 GSa/s (each channel) | - | 24 kpts (half channel) 12 Kpts (each channel) | €449 | Discontinued |
| SDS1204CFL | 200 MHz | 4 | 2 GSa/s (half channel) 1 GSa/s (each channel) | - | 24 kpts (half channel) 12 Kpts (each channel) | €809 | Discontinued |
| SDS1102CFL | 100 MHz | 2 | 2 GSa/s (half channel) 1 GSa/s (each channel) | - | 24 kpts (half channel) 12 Kpts (each channel) | €529 | Discontinued |
| SDS1104CFL | 100 MHz | 4 | 2 GSa/s (half channel) 1 GSa/s (each channel) | - | 24 kpts (half channel) 12 Kpts (each channel) | €739 | Discontinued |
| SDS1072CFL | 70 MHz | 2 | 2 GSa/s (half channel) 1 GSa/s (each channel) | - | 24 kpts (half channel) 12 Kpts (each channel) | €419 | Discontinued |
| SDS1074CFL | 70 MHz | 4 | 2 GSa/s (half channel) 1 GSa/s (each channel) | - | 24 kpts (half channel) 12 Kpts (each channel) | €599 | Discontinued |
Key Features
- Auto measurement of 32 parameters
- 2 / 4 groups’ reference waveforms. 20 groups of captured waveforms and 20 groups of setups. Internal save/recall function and USB flash drive save/recall function.
- Cursor types: Manual, Track, and Auto modes
- FFT waveform display on split or full screen
- Four Screen display styles: Classical, Modern, Tradition, Succinct
- Multiple Language User Interface
- Built-in help system
- Standard interfaces: Dual USB Host; USB Device; LAN Port; Pass/Fail Out
Product Characteristics
8×18 div wide screen View more
8×18 div wide screen

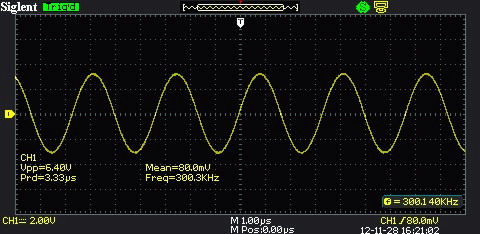

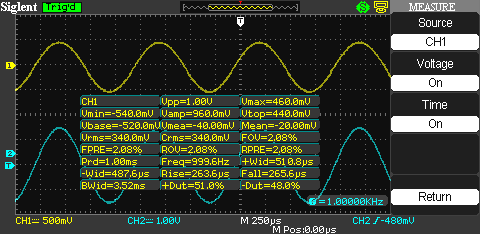

32 types of auto measurements View more
32 types of auto measurements

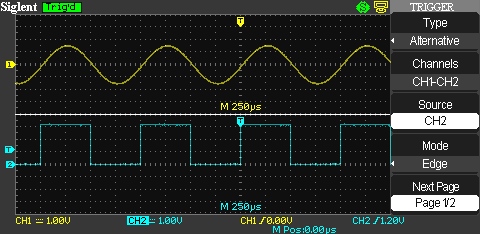

Alternative-trigger View more
Alternative-trigger

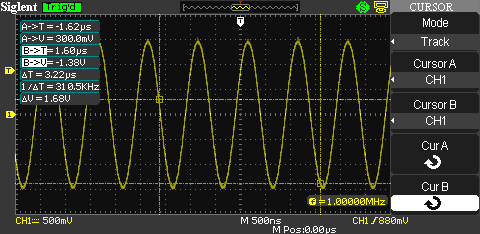

Cursor-measurements View more
Cursor-measurements

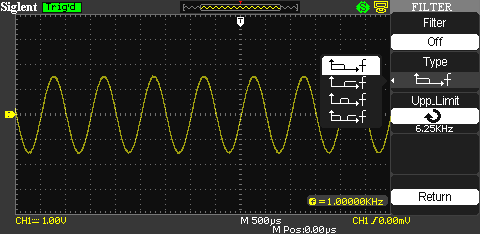

Digital Filter View more
Digital Filter

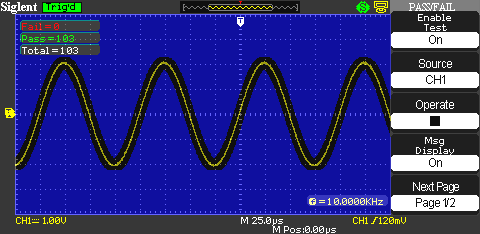

Pass/Fail View more
Pass/Fail

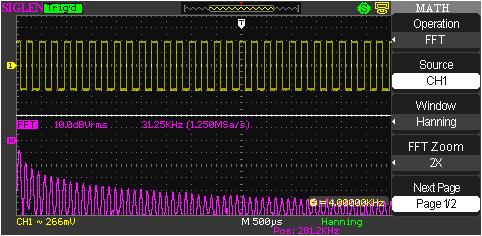

FFT View more
FFT

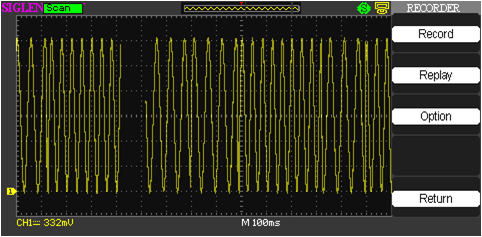

Data Recorder View more
Data Recorder

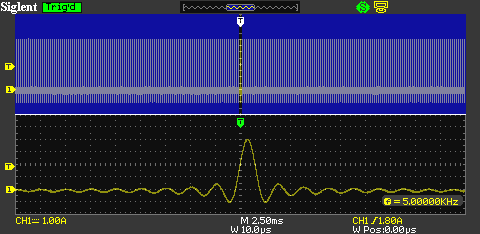

One key Zoom View more
One key Zoom
One key Zoom View more
One key Zoom

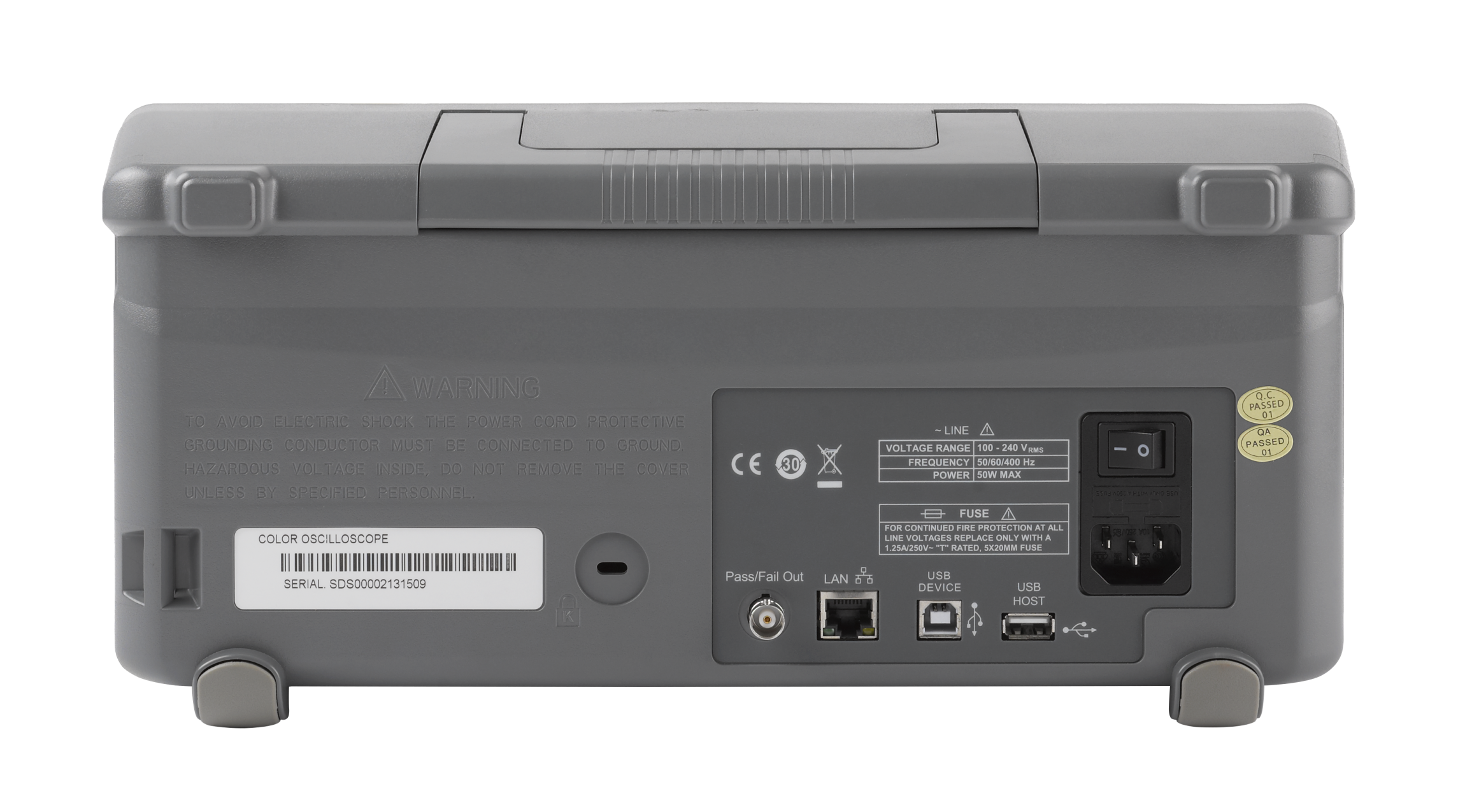

Multi interfaces View more
Multi interfaces

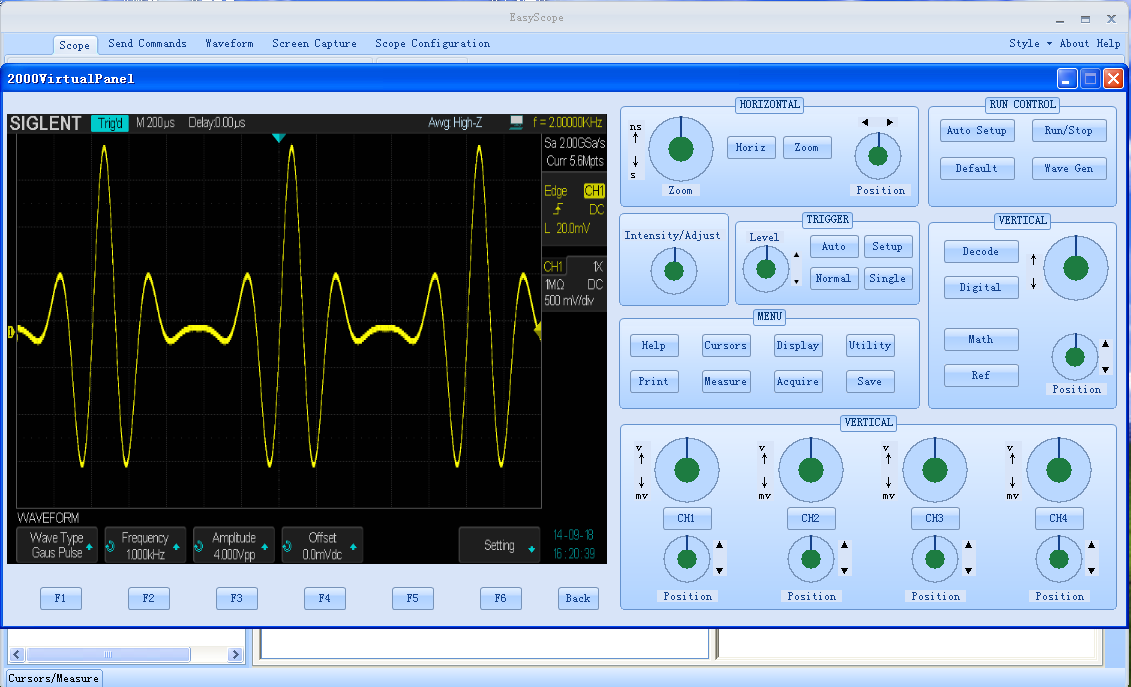

EasyScopeX software View more
