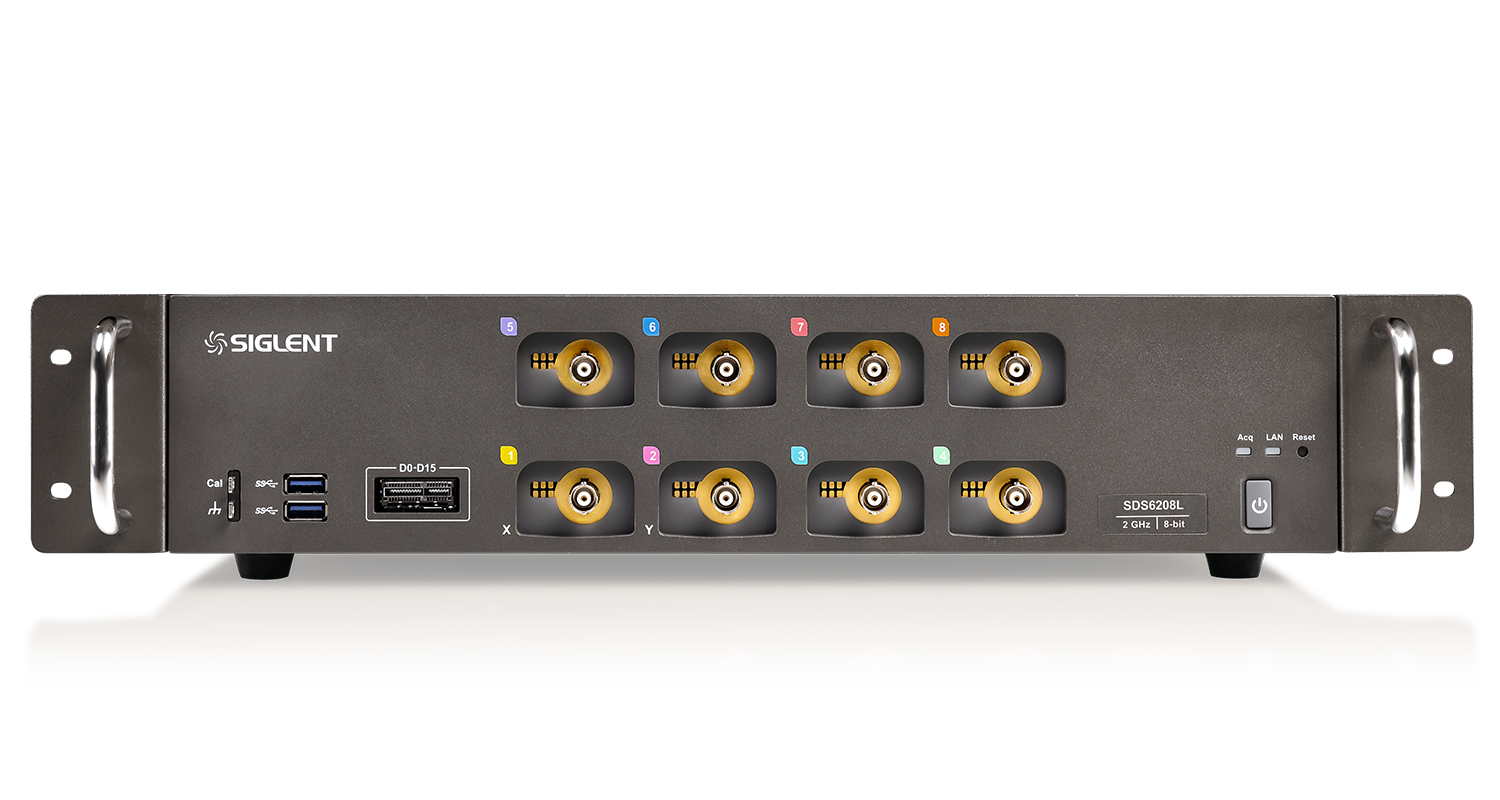

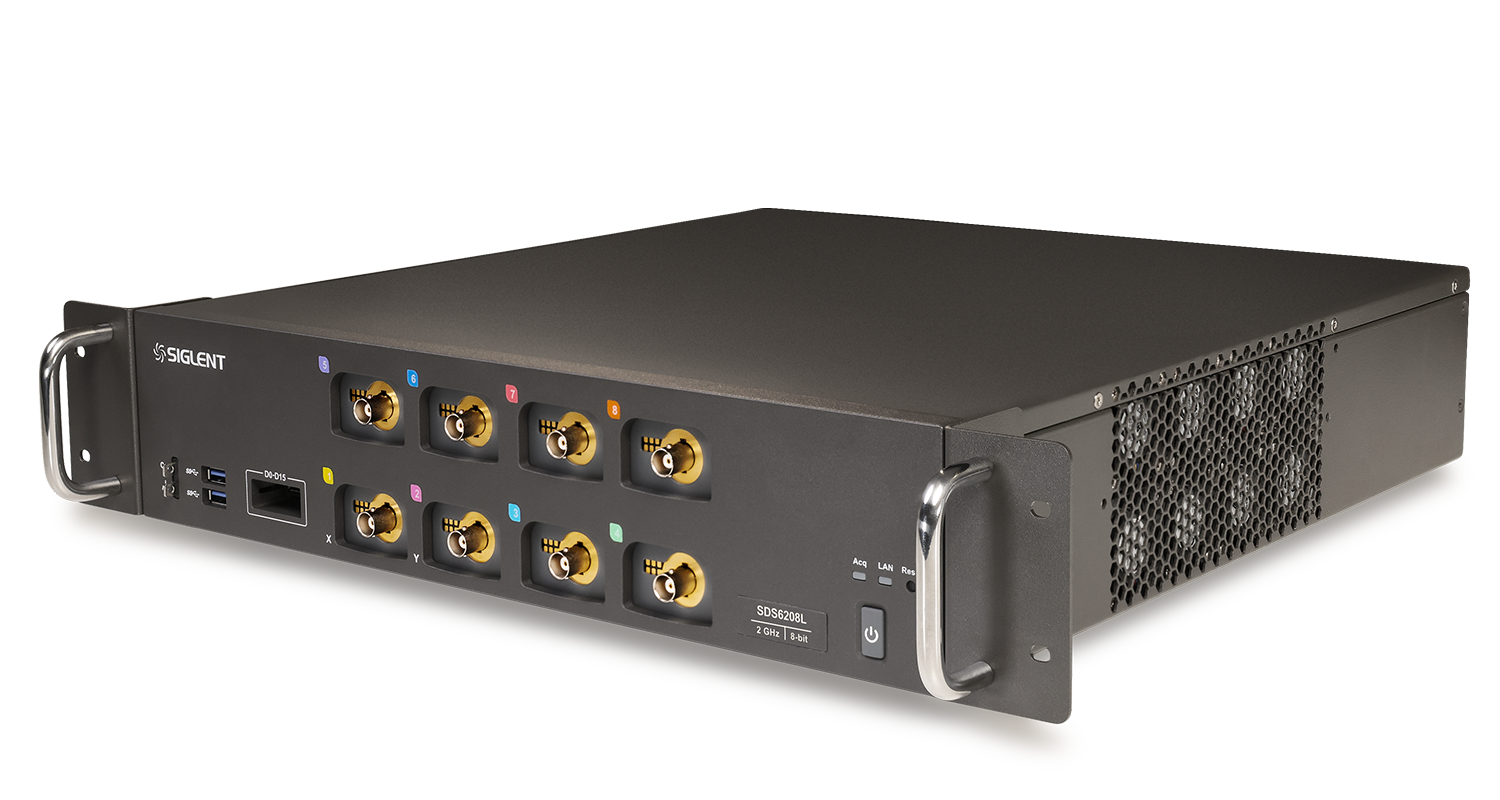

SDS6000L Low Profile Digital Storage Oscilloscope

  • 500 MHz, 1 GHz, 2 GHz models
  • 8/4 analog channels + 1 external trigger
  • 5 GSa/s (10 GSa/s ESR) per channel
  • Record Length up to 500 Mpts
  • SYNC-64 to Synchronize 64 x SDS6000L
  • Waveform capture rate up to 750,000 wfm/s (Sequence mode)
  • Serial bus triggering and decoder, supports I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT and Manchester

Product Overview

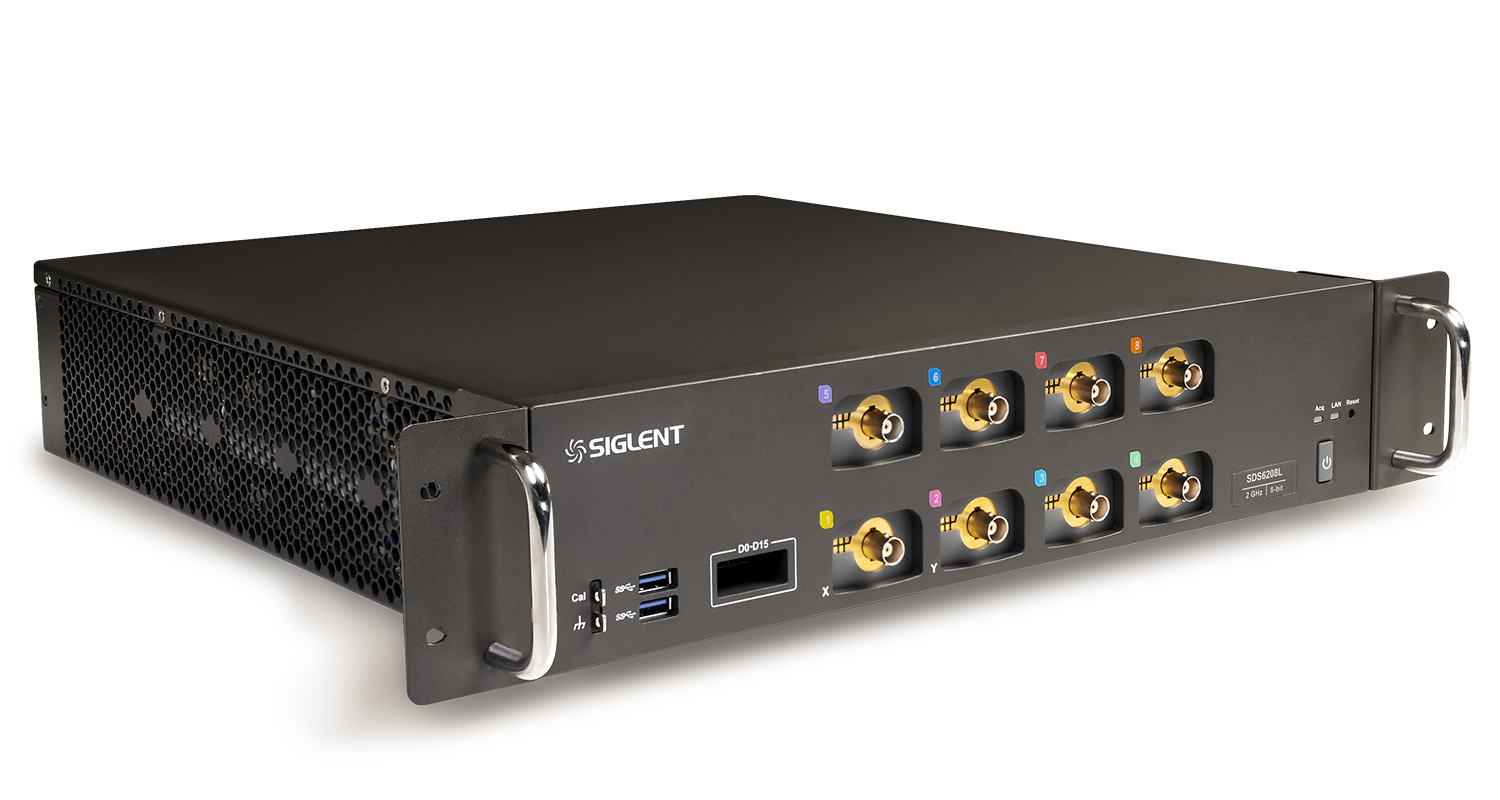

SIGLENT’s SDS6000L series Low Profile Digital Storage Oscilloscopes provide up to 8 analog channels + 16 digital channels in a space-saving chassis size. This series is available in bandwidths of 2 GHz / 1 GHz / 500 MHz, feature a maximum sample rate of 5 GSa/s (10 GSa/s ESR) for each channel, and a maximum record length of 500 Mpts/ch.

The SDS6000L series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 170,000 wfm/ s (normal mode, up to 750,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Power Analysis and Eye/ Jitter Analysis allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, and serial decoding are also features of the SDS6000L.

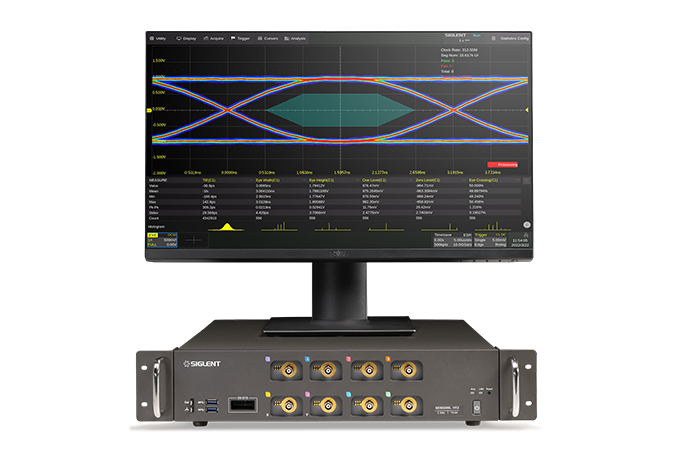

It can be used as a stand-alone oscilloscope by being connected to an external display and a mouse. It can also be remotely controlled over LAN thanks to the convenient built-in web server. Combined with a 64-channel synchronization distributor (SYN64), multiple SDS6000L modules can be organized as a high-speed acquisition system with up to 512 channels. A complete SCPI command set over the standard 1000M LAN connection provides very fast data acquisition to speed automated test applications.

Bandwidth Channels Real time
sampling rate
Capture rate Memory depth Price
SDS6208L 2 GHz 8 + EXT 5 GSa/s (10 GSa/s ESR) @ each channel 170,000 wfm/s (Normal mode), 750,000 wfm/s (Sequence mode) 500 Mpts/ch (single-channel), 250 Mpts/ch (dual-channel), 125 Mpts/ch (3 or 4 channels) €29,280 Buy Now
SDS6204L 2 GHz 4 + EXT 5 GSa/s (10 GSa/s ESR) @ each channel 170,000 wfm/s (Normal mode), 750,000 wfm/s (Sequence mode) 500 Mpts/ch (single-channel), 250 Mpts/ch (dual-channel), 125 Mpts/ch (3 or 4 channels) €13,280 Buy Now
SDS6108L 1 GHz 8 + EXT 5 GSa/s (10 GSa/s ESR) @ each channel 170,000 wfm/s (Normal mode), 750,000 wfm/s (Sequence mode) 500 Mpts/ch (single-channel), 250 Mpts/ch (dual-channel), 125 Mpts/ch (3 or 4 channels) €22,880 Buy Now
SDS6104L 1 GHz 4 + EXT 5 GSa/s (10 GSa/s ESR) @ each channel 170,000 wfm/s (Normal mode), 750,000 wfm/s (Sequence mode) 500 Mpts/ch (single-channel), 250 Mpts/ch (dual-channel), 125 Mpts/ch (3 or 4 channels) €10,580 Buy Now
SDS6058L 500 MHz 8 + EXT 5 GSa/s (10 GSa/s ESR) @ each channel 170,000 wfm/s (Normal mode), 750,000 wfm/s (Sequence mode) 500 Mpts/ch (single-channel), 250 Mpts/ch (dual-channel), 125 Mpts/ch (3 or 4 channels) €16,880 Buy Now
SDS6054L 500 MHz 4 + EXT 5 GSa/s (10 GSa/s ESR) @ each channel 170,000 wfm/s (Normal mode), 750,000 wfm/s (Sequence mode) 500 Mpts/ch (single-channel), 250 Mpts/ch (dual-channel), 125 Mpts/ch (3 or 4 channels) €7,380 Buy Now

Key Features

  • 8/4 analog channels + 1 external trigger. Designed for expansion. Combine multiple units for a high-speed acquisition system with up to 512 channels.
  • Up to 2 GHz bandwidth with 5 GSa/s (10 GSa/s ESR) sample rate at each channel
  • Low background noise, supports 0.5 mV/div to 10 V/div vertical scales
  • SPO technology
    • Waveform capture rates up to 170,000 wfm/s (normal mode), and 750,000 wfm/s (sequence mode)
    • Supports 256-level intensity grading and color temperature display modes
    • 500 Mpts Record length in total for all 4 channels
    • Digital trigger system
  • Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup / hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering
  • Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT and Manchester
  • Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
  • History waveform record (History) function, the maximum recorded waveform length is 80,000 frames
  • Automatic measurements on 50+ parameters, supports statistics with histogram, track, trend, Gating measurement, and measurements on Math, History, Memory and Ref
  • 4 Math traces (8 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor

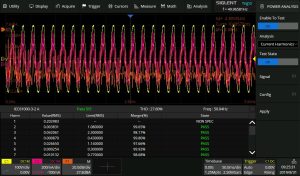

  • Abundant data analysis functions such as Search, Navigate, Digital Voltmeter, Counter, Waveform Histogram, Power Analysis and Eye/Jitter Analysis
  • 16 digital channels
  • 25 MHz function / arbitrary waveform generator, built-in multiple predefined waveforms
  • Interfaces include: 4x USB Hosts, USB Device (USBTMC), 1000M LAN(VXI-11/ Telnet/ Socket), micro SD card, Pass/Fail, Trigger Out, HDMI, 10MHz In、10MHz Out
  • Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard.

Need more information? Call us now +49 821 666 0 111 0

Product Characteristics

Flexible Multi-channel High-speed Acquisition System View more

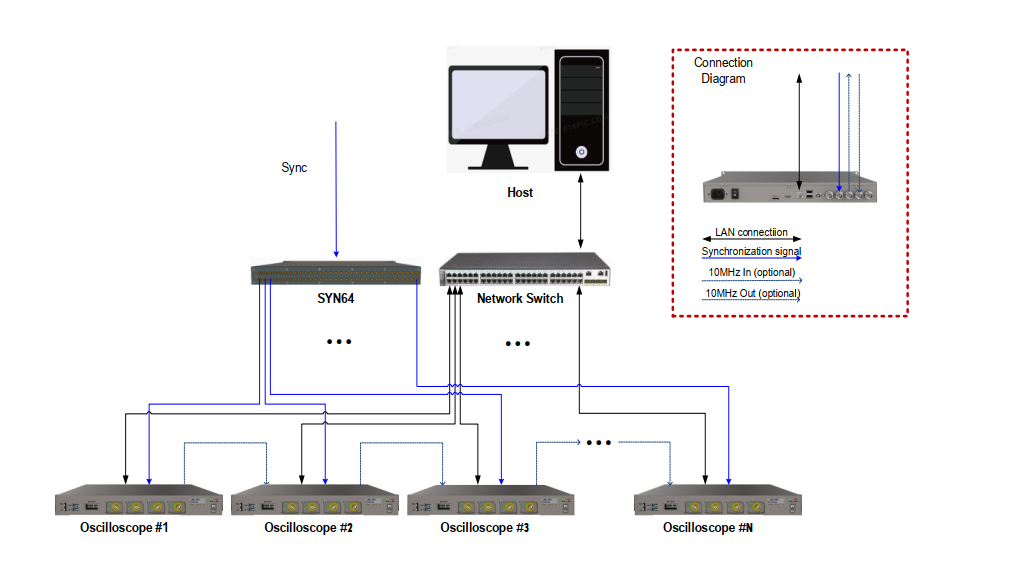

Flexible Multi-channel High-speed Acquisition System

  • Standard sizes: 4 – channel models – 1U,8-channel models – 2U
  • Multiple units are combined to create a high-speed acquisition system with up to 512 channels by being triggered with low-skew synchronization signals from the 64-channel synchronization distributor SYN64
  • The host can access each unit over 1000M LAN. A complete SCPI command set as well as LabVIEW and IVI drivers are provided for easy data acquisition. The LAN port is LXI compliant
  • Sample clocks are synchronized between all units in the test system by cascading the 10 MHz In and 10 MHz Out clocks in a daisy chain

High Waveform Update Rate View more

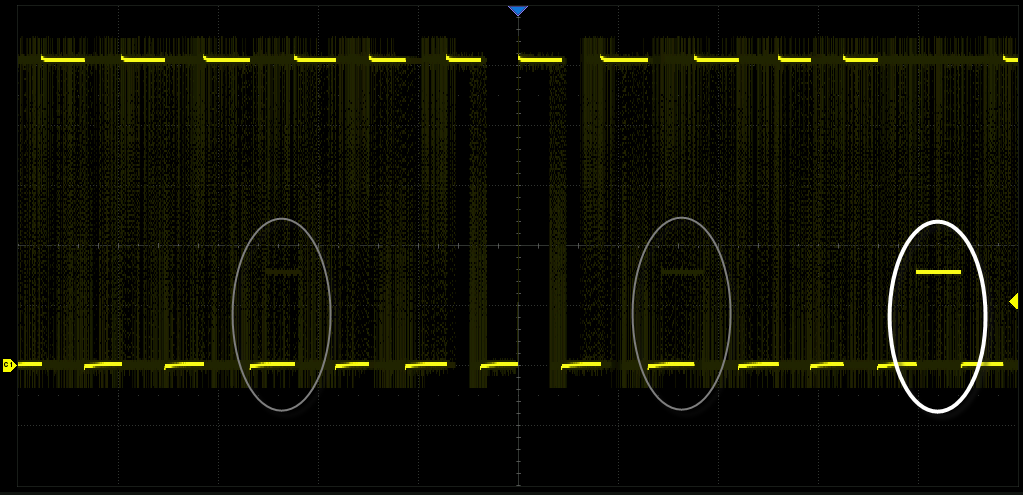

High Waveform Update Rate

With a waveform update rate of up to 170,000 wfm/s, the oscilloscope can easily capture unusual or low-probability events. In Sequence mode, the waveform capture rate can reach 750,000 wfm/s.

Deep Record Length View more

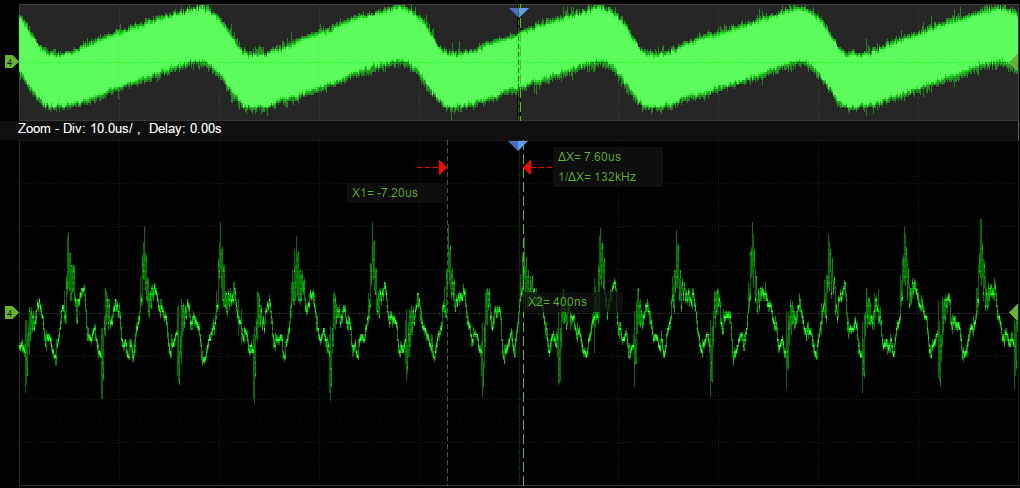

Deep Record Length

Using a hardware-based Zoom technique and record length of up to 500 Mpts, users can select a slower timebase without compromising the sample rate, and then quickly zoom in to focus on the area of interest.

Multiple Trigger Functions View more

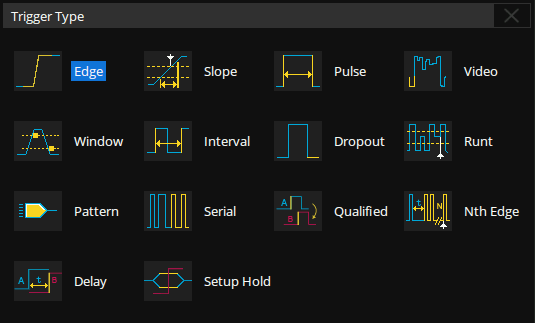

Multiple Trigger Functions

Edge, Slope, Pulse, Video, Windows, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/ hold, Delay, and serial trigger.

Measurements of a Variety of Parameters View more

Measurements of a Variety of Parameters

Parameter measurements include 4 categories: horizontal, vertical, miscellaneous, and CH delay providing a total of 50+ different types of measurements. Measurements can be performed within a specified gate period. Measurements on Math, Reference, and History frames are supported.

Serial Bus Decode View more

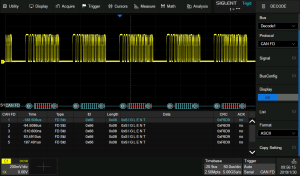

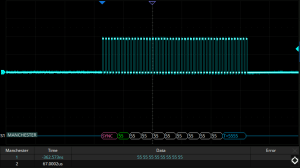

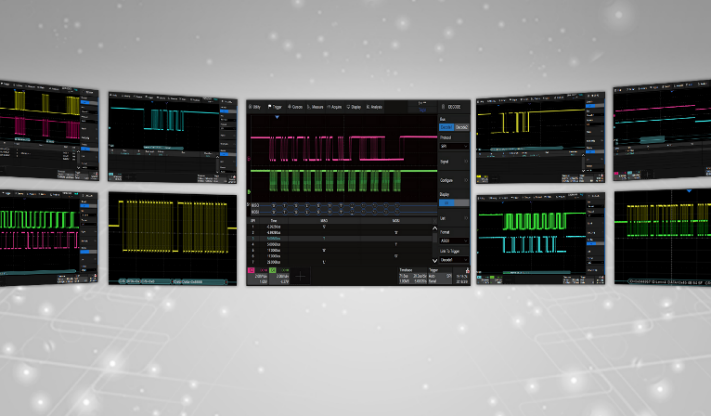

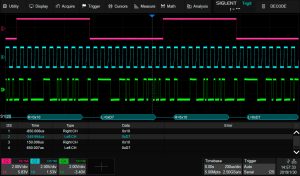

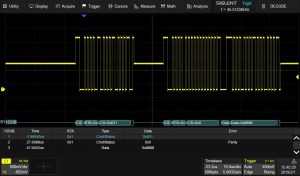

Serial Bus Decode

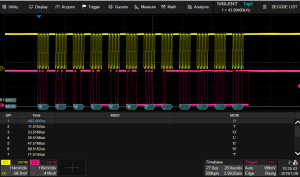

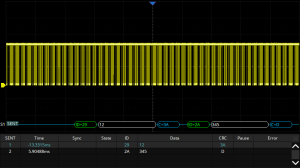

Display the decoded characters through the events list. Bus protocol information can be quickly and intuitively displayed in tabular form. I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, and Manchester are supported.

Eye / Jitter Analysis View more

Eye / Jitter Analysis

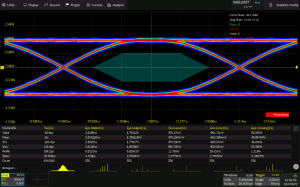

Supports eye diagram and jitter analysis / measurement. It can automatically extract the embedded reference clock from serial data and create an eye diagram. Measurement on multiple eye / jitter parameters is provided and mask testing of eye diagrams is supported.

Digital Channels / MSO (Optional) View more

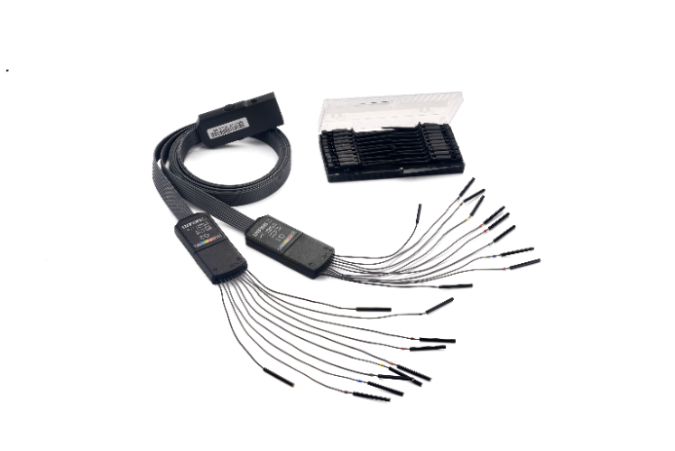

Digital Channels / MSO (Optional)

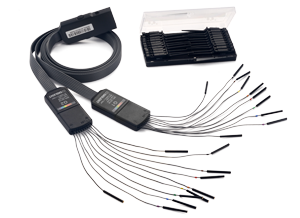

Four analog channels plus 16 digital channels enable users to acquire and trigger the waveforms and then analyze the pattern, simultaneously with one instrument.

25 MHz Function/Arbitrary Waveform Generator (Optional) View more

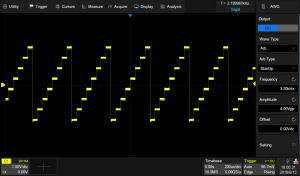

25 MHz Function/Arbitrary Waveform Generator (Optional)

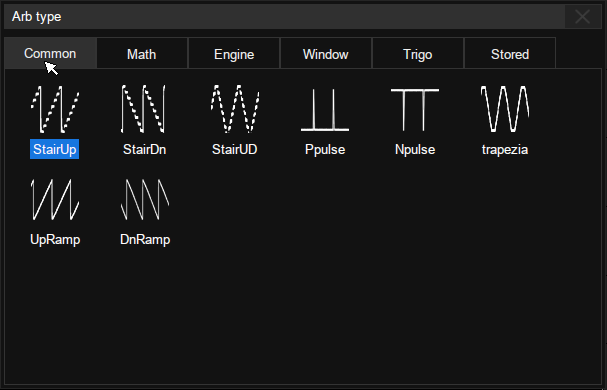

The built-in Function / Arbitrary waveform generator can output waveform with up to 25MHz frequency and ±3V amplitude. Six basic waveforms plus multiple types of arbitrary waveforms are built-in.

Complete Connectivity View more

Complete Connectivity

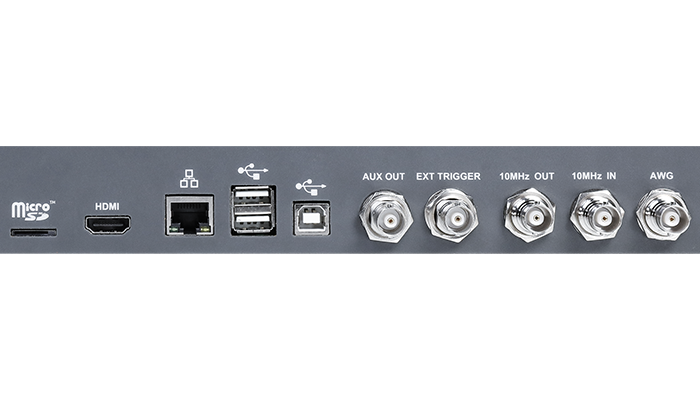

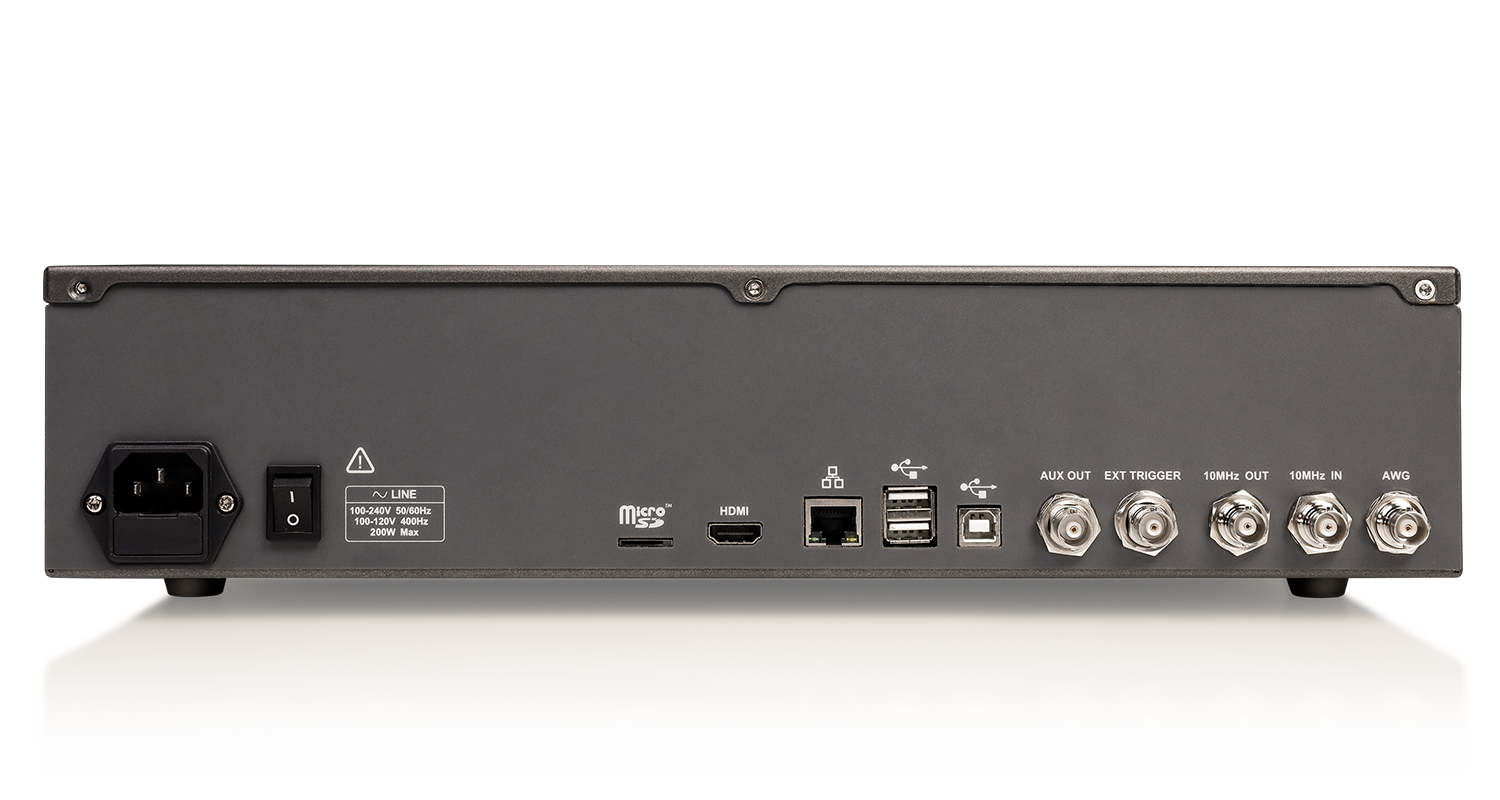

HDMI (1280 x 800) x1, USB Host 3.0 x2, USB Host 2.0 x2, USB Device 2.0 (USBTMC) x1, 1000M LAN (VXI-11 / Telnet / Socket)x1, micro SD card x1, Auxiliary output (Pass / Fail, Trigger Out) x1, 10 MHz In x1, 10 MHz Out x1.
