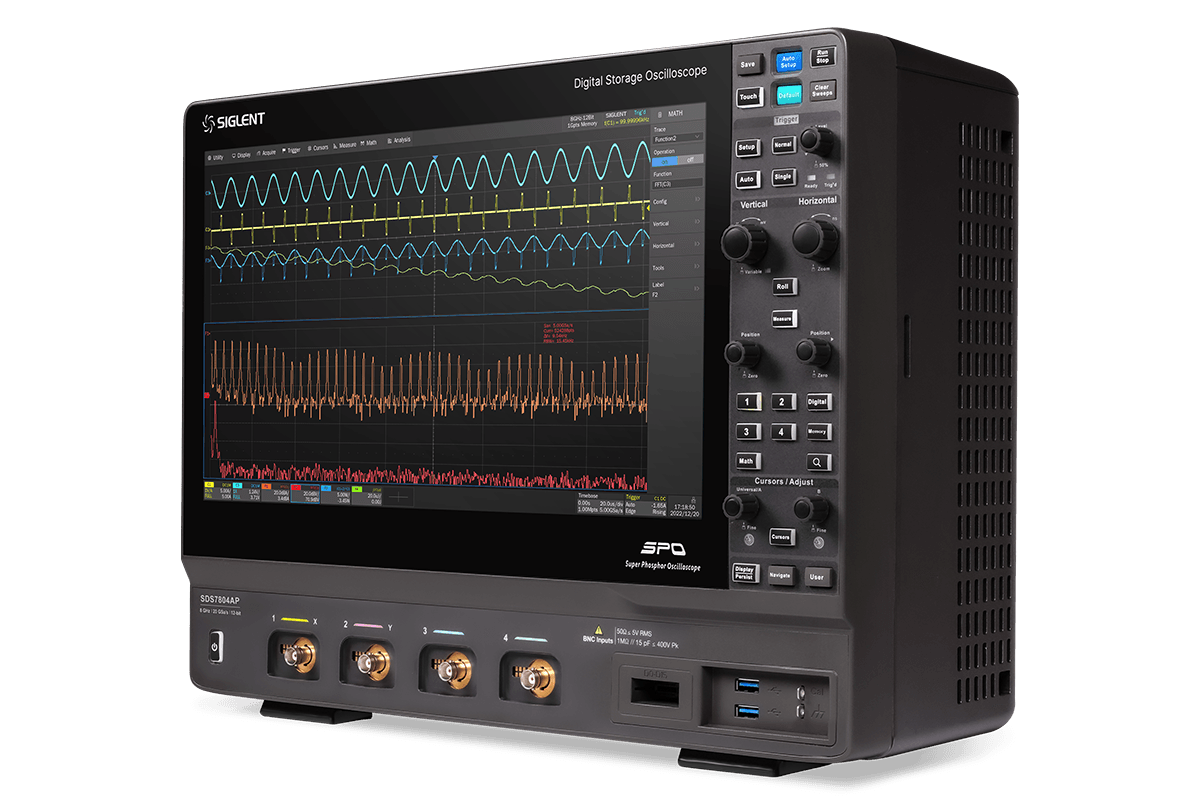

SDS7000A Digital Storage Oscilloscope
- Bandwidth up to 6 GHz, 12-bit ADC resolution
- Real-time sampling rate up to 20 GSa/s
- Record Length up to 1 Gpts
- Waveform capture rate up to 1,000,000 wfm/s

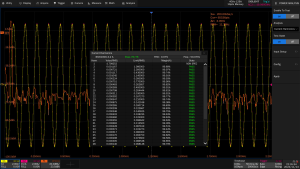

- Eye diagram, Jitter analysis, Compliance Test, Power analysis, Bode plot, decode, MSO, AWG
- SAP5000D, 5 GHz High-speed differential probe
Product Overview

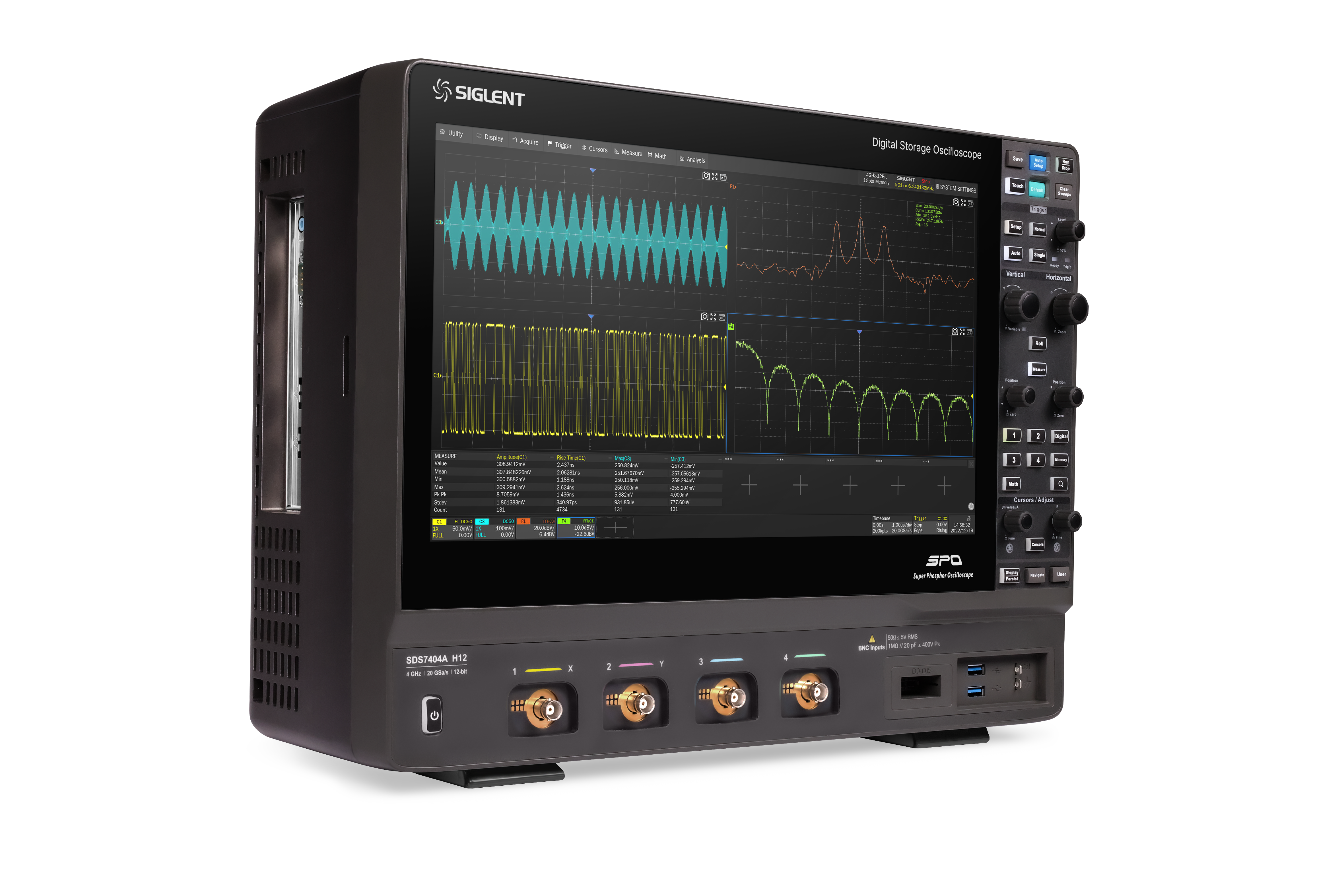

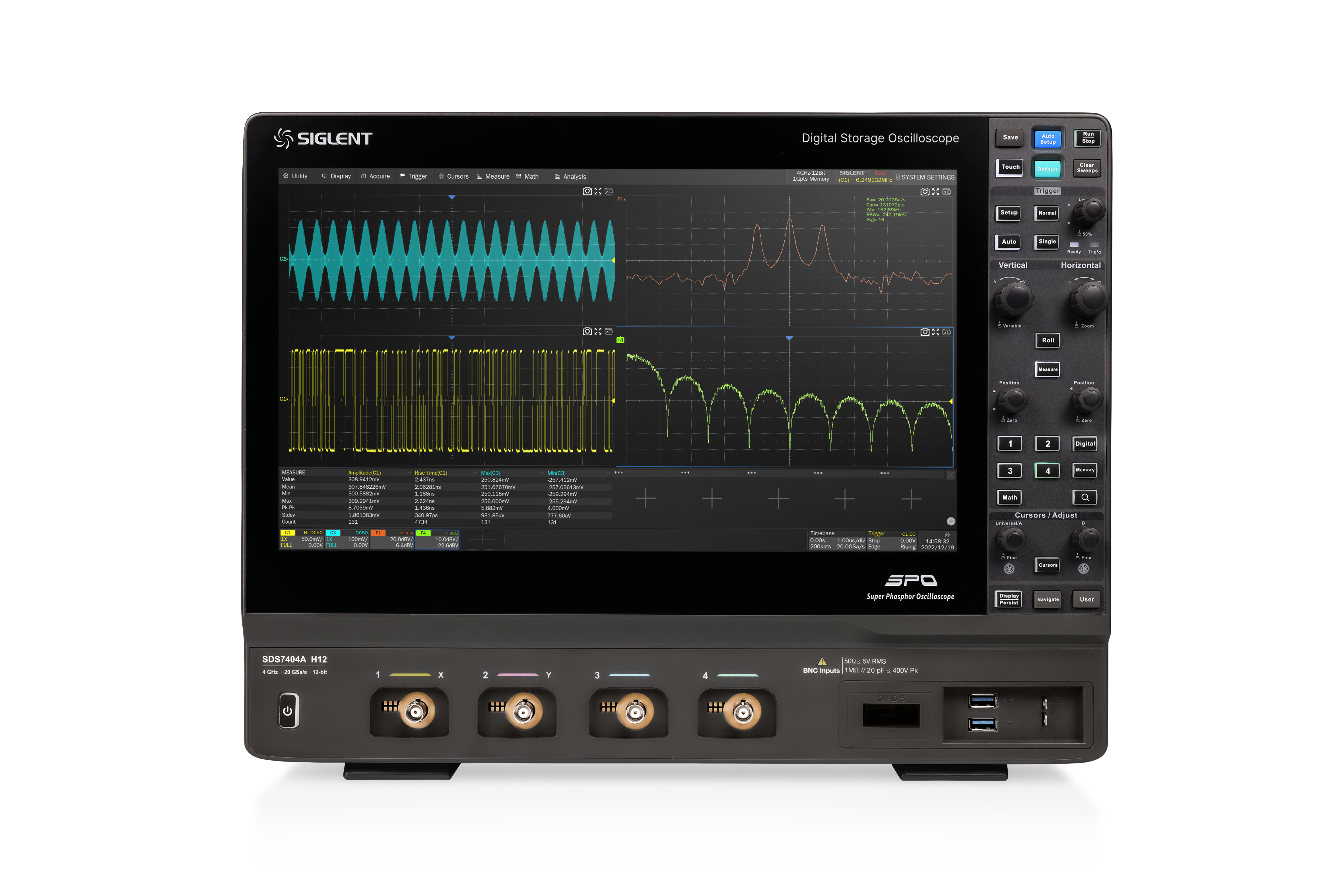

SIGLENT’s SDS7000A series Digital Storage Oscilloscopes are available in bandwidths of 6 GHz、4 GHz and 3 GHz, have 12-bit ADCs with sample rate up to 20 GSa/s, maximum record length of 1Gpts/ch, and display up to 4 analog channels + 16 digital channels for high performance mixed signal analysis.
The SDS7000A series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 1,000,000 wfm/ s, 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Signal Scan, Mask Test, Bode Plot, Power Analysis, Eye/Jitter Analysis and Compliance Test allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 50 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS7000A .
The large 15.6’’ HD display capacitive touch screen supports multi-touch gestures, with the addition of user-friendly UI design, can greatly improve the operational efficiency. It also supports mouse control, and remote web control over LAN.
| Bandwidth | Channels | Real time sampling rate |
Capture rate | Memory depth | Price | ||
| SDS7604A H12 | 6GHz | 4 + EXT | 20 GSa/s (dual-channel) | 1,000,000 wfm/s | Standard: 500 Mpts/ch Optional: 1 Gpts/ch | €35,690 | Buy Now |
| SDS7404A H12 | 4 GHz | 4 + EXT | 20 GSa/s (dual-channel) | 1,000,000 wfm/s | Standard: 500 Mpts/ch Optional: 1 Gpts/ch | €24,690 | Buy Now |
| SDS7304A H12 | 3 GHz | 4 + EXT | 20 GSa/s (dual-channel) | 1,000,000 wfm/s | Standard: 500 Mpts/ch Optional: 1 Gpts/ch | €18,990 | Buy Now |
Key Features
- 4 analog channels, up to 6 GHz bandwidth with up to 20GSa/s sample rate
- 12-bit ADC
- Low background noise: 260 μVrms @ 6 GHz bandwidth
- SPO technology
- Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering
- Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester, ARINC429 and USB 2.0
- Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 124,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
- History waveform record (History) function, the maximum recorded waveform length is 124,000 frames
- Automatic measurements on 50+ parameters, supports statistics with histogram, track, trend, Gating measurement, and measurements on Math, History and Memory traces
- 4 Math traces (32 Mpts FFT, Filter, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
- Abundant data analysis functions such as Search, Navigate, SignalScan, Digital Voltmeter, Counter, Waveform Histogram, Bode plot, Power Analysis, Eye/Jitter Analysis and Compliance Test
- High Speed hardware-based Average, Hi-Res; High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks

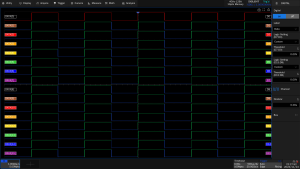

- 16 digital channels
- Built-in 50 MHz waveform generator
- Large 15.6” HD TFT-LCD display with 1920 * 1080 resolution; Capacitive touch screen supports multi-touch gestures.

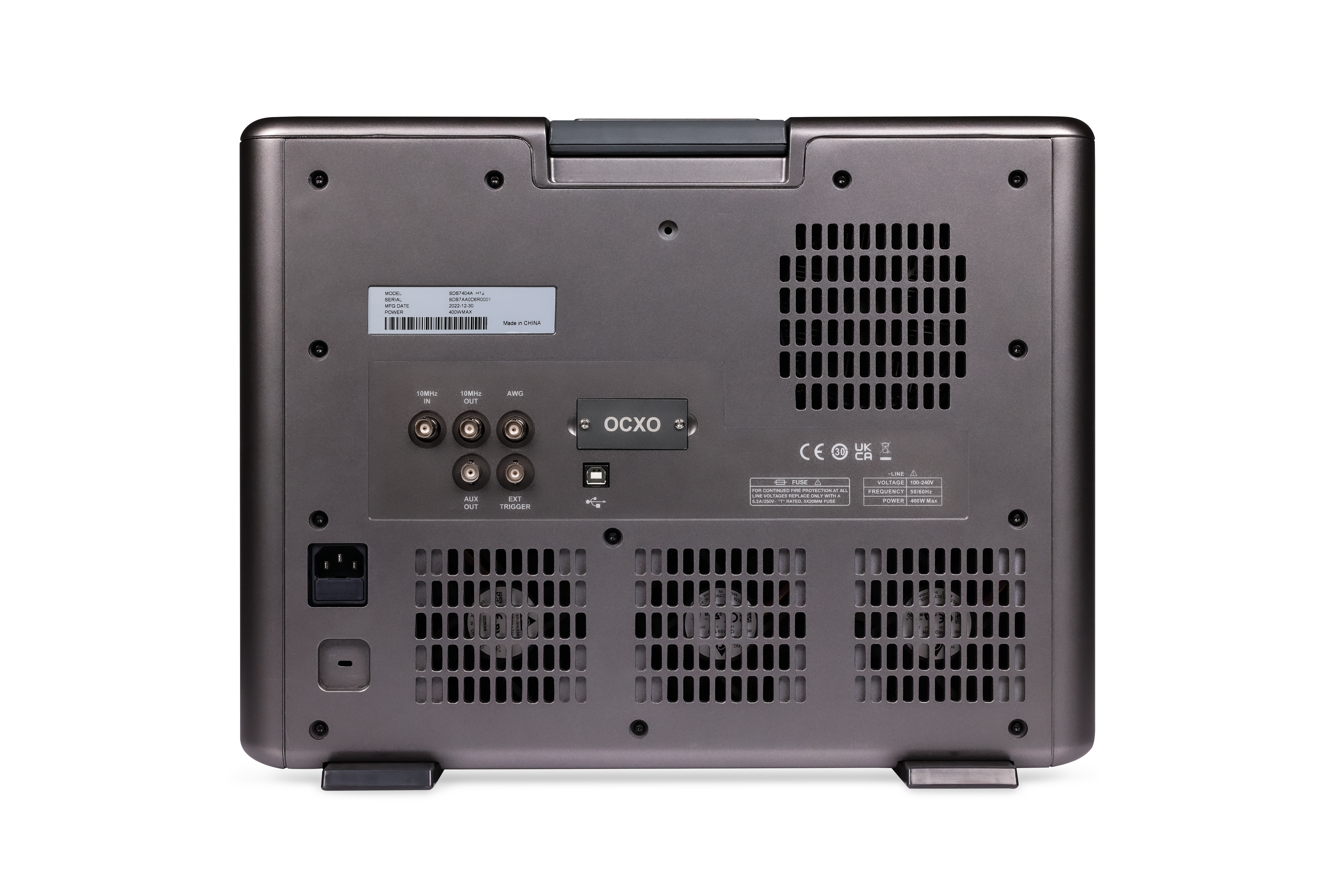

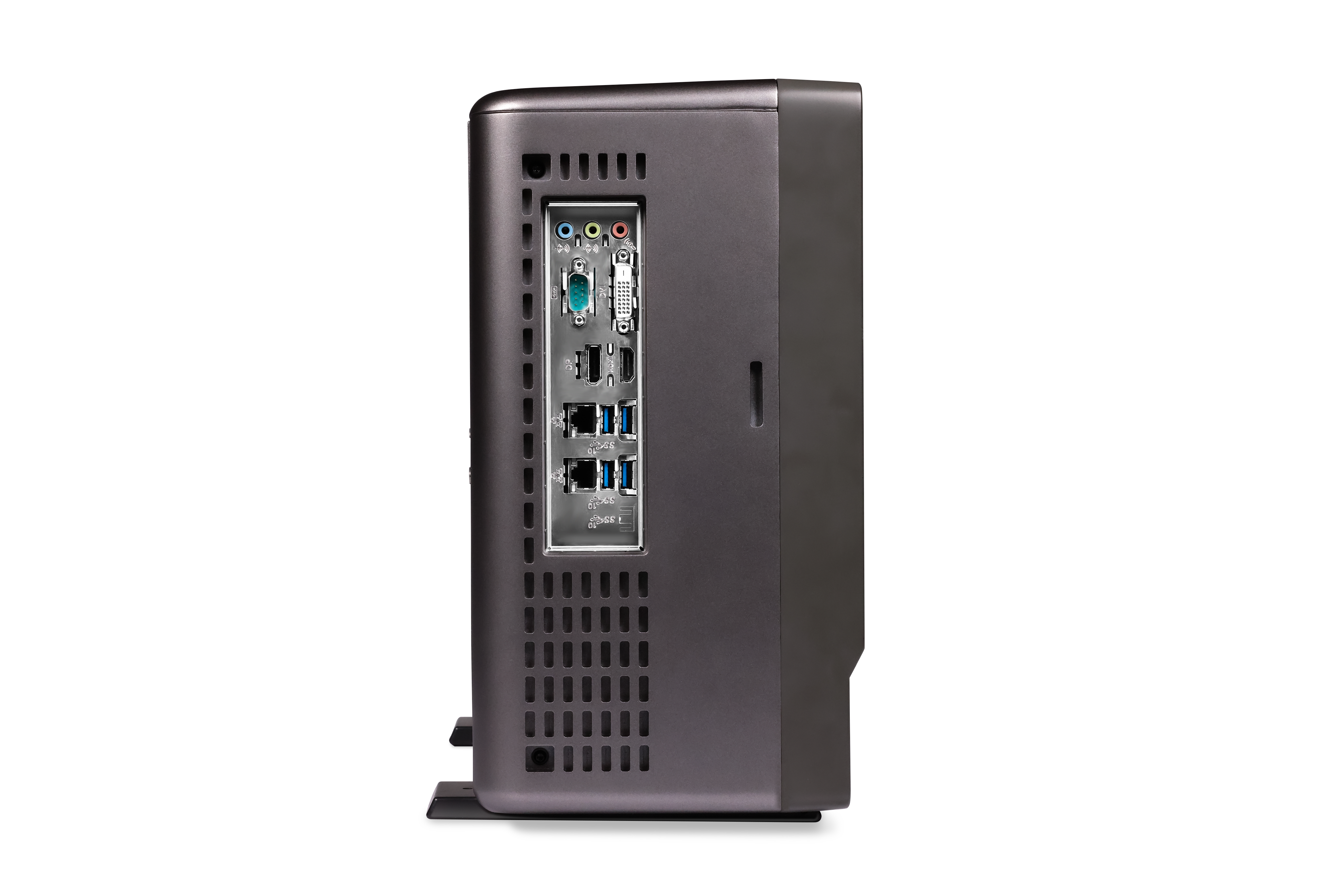

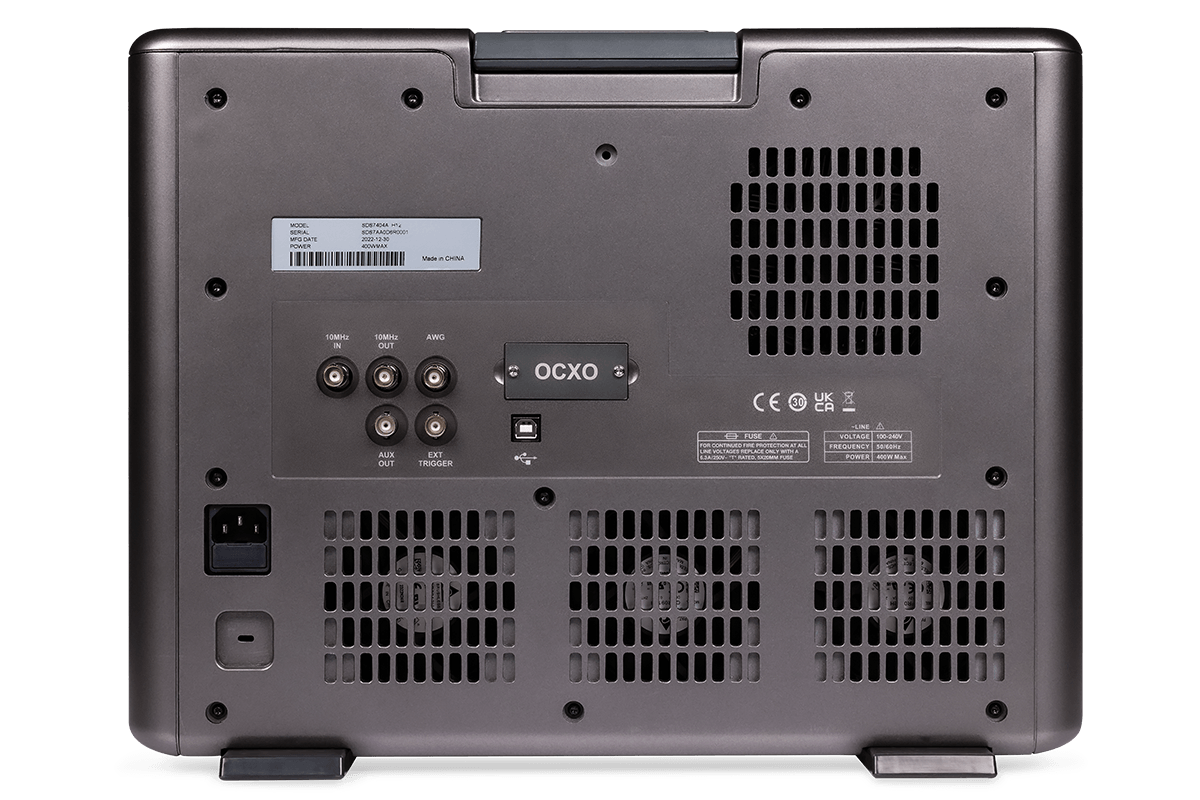

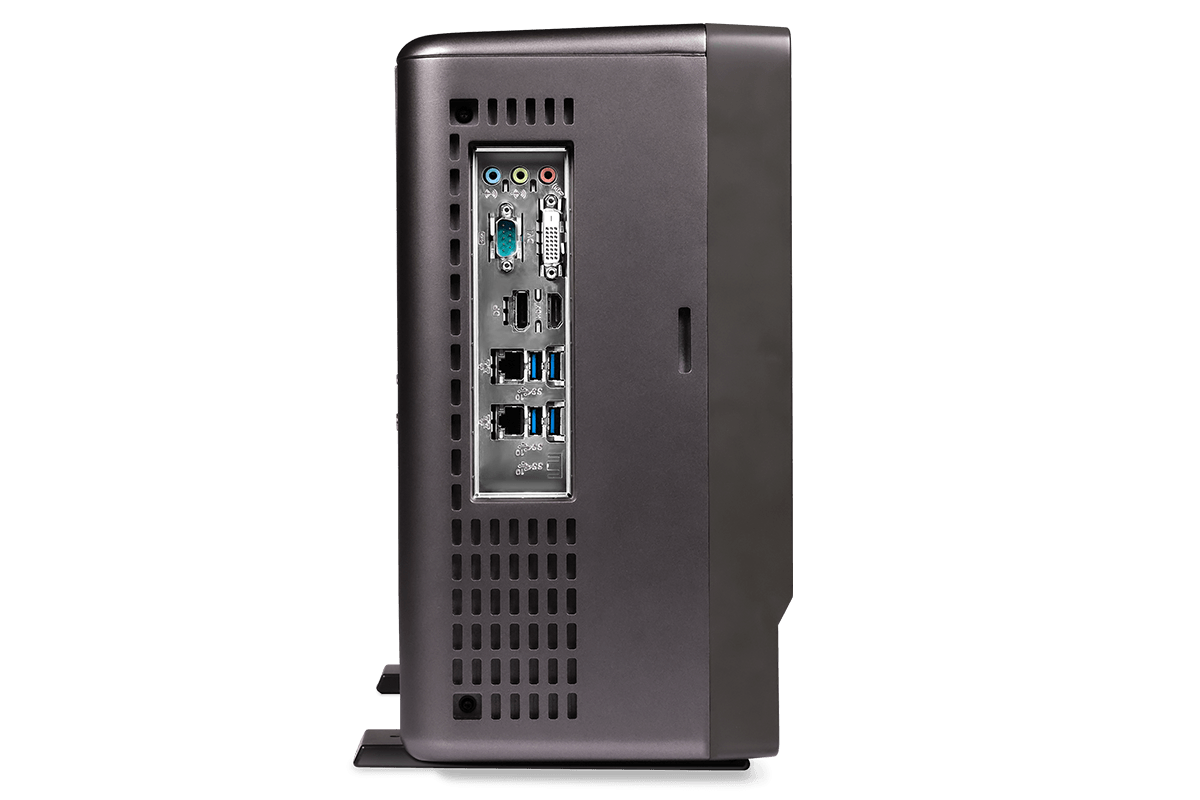

- Interfaces include: 4x USB Host 3.1 Gen 1，2x USB 3.0 Host，USB 2.0 Device，2x 1000M LAN，DVI-D，DP 1.2， HDMI 1.4，Audio, External Triger In, Aux Out (Pass/Fail, Trigger Out), 10 MHz In，10 MHz Out
- Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard
Product Characteristics
12-bit high resolution View more

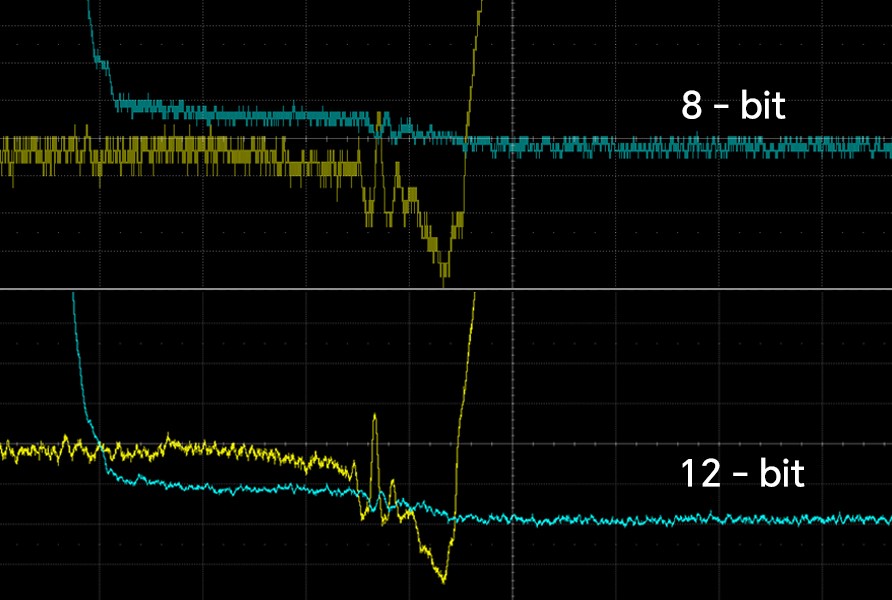

12-bit high resolution
The resolution of 12-bit is realized by hardware, which makes the waveform details clearer and the measurement results more accurate.

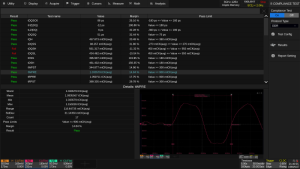

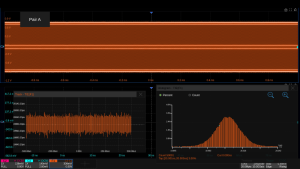

Compliance Test View more

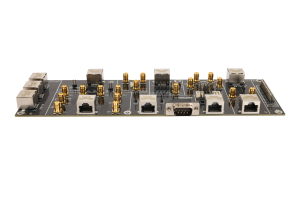

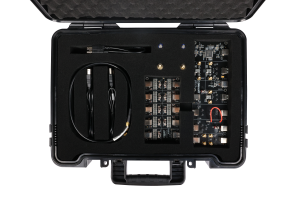

Compliance Test

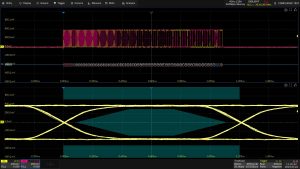

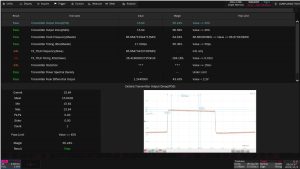

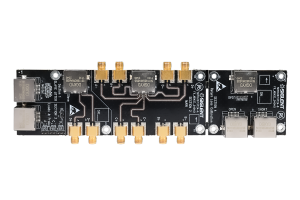

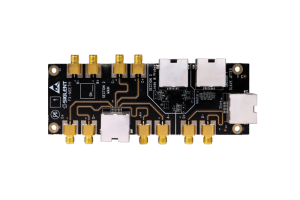

USB 2.0, 100Base-TX, 1000Base-T, 100Base-T1, 1000Base-T1 protocol conformance testing are available. When the user sets up the environment according to the prompts, by using the related test fixture, the oscilloscope and related instruments can be automatically set up and related measurement, calculation, decoding and other functions will be used for testing, helping the user to complete each test project quickly and efficiently, and reports are generated automatically.

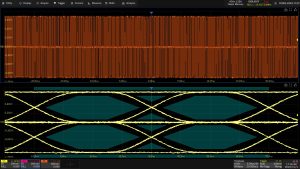

Eye/Jitter Analysis View more

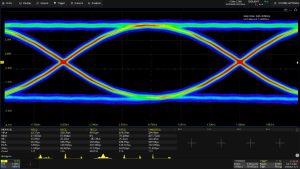

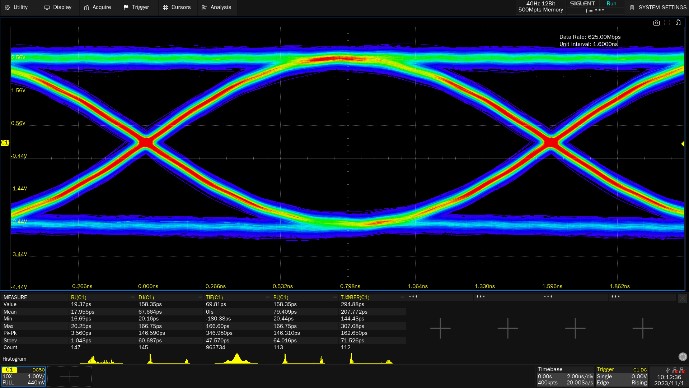

Eye/Jitter Analysis
Supports eye diagram and jitter analysis/measurement. It can automatically extract the embedded reference clock from serial data and create the eye diagram. Measurement on multiple eye/jitter parameters is provided. Mask test on eye diagrams is supported

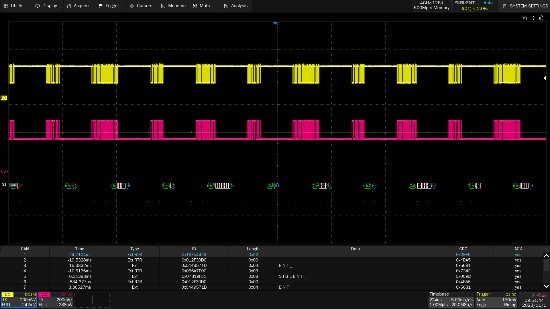

Serial Bus Decode View more

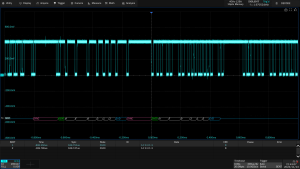

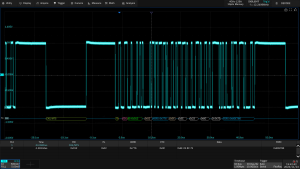

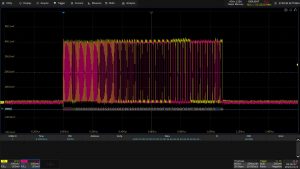

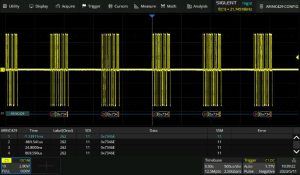

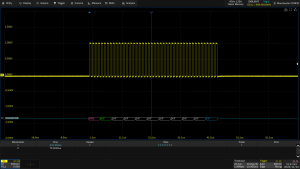

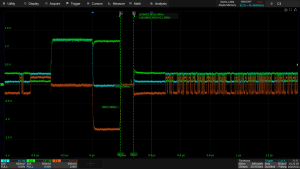

Serial Bus Decode

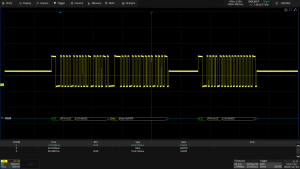

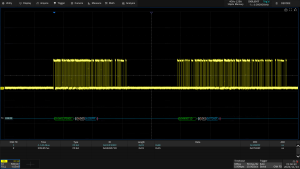

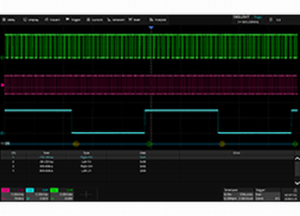

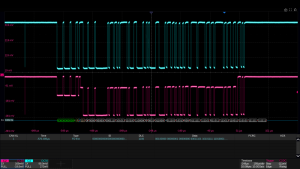

Display the decoded characters through the events list. Bus protocol information can be quickly and intuitively displayed in tabular form. I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT, Manchester , ARINC429 and USB 2.0 are supported
Hardware-based High Speed Mask Test Function View more

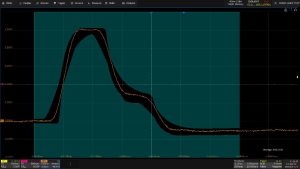

Hardware-based High Speed Mask Test Function
The oscilloscope utilizes a hardware-based Mask Test function, performing up to 80,000 Pass / Fail decisions each second. It is easy to generate user-defined test templates to provide trace mask comparisons, making it suitable for long-term signal monitoring or automated production line testing
Multiple Trigger Functions View more

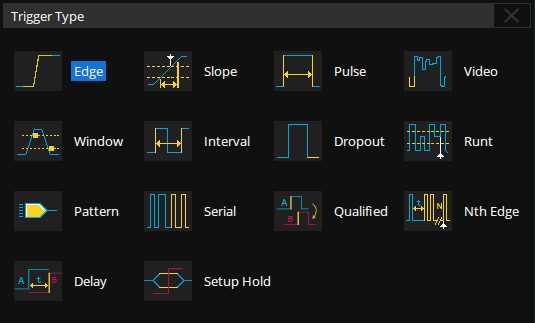

Multiple Trigger Functions
Edge, Slope, Pulse, Video, Windows, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and serial trigger
Bode Plot View more
Bode Plot
The oscilloscope can control the Built-in waveform generator, SIGLENT isolated USB AWG module or a stand-alone SIGLENT SDG generator, to scan the amplitude and phase-frequency response of the DUT, and display the data as a Bode Plot. This makes it possible to replace expensive network analyzers in some applications

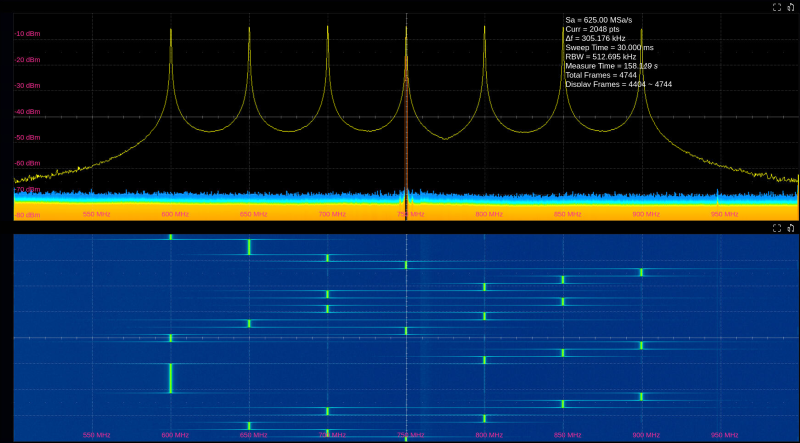

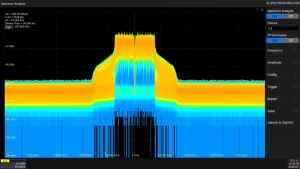

Deep Memory FFT View more

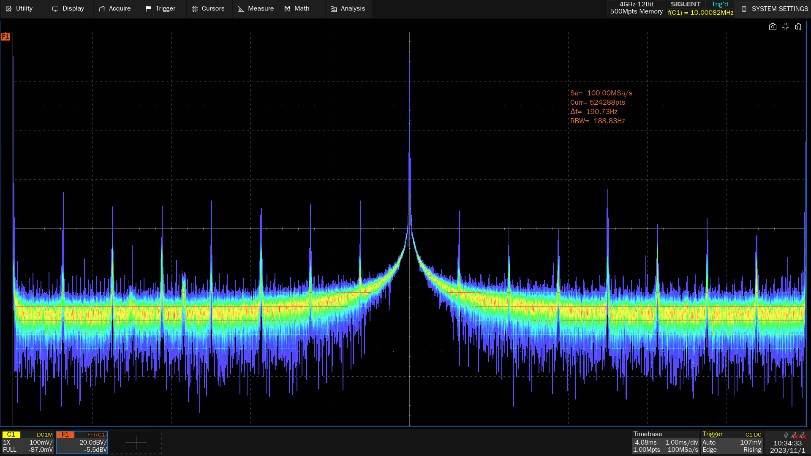

Deep Memory FFT
FFT supports up to 32 Mpts operation. This provides high-frequency resolution with a fast refresh rate. The FFT function also supports a variety of window functions so that it can adapt to different spectrum measurement needs. Three modes (Normal, Average, and Max hold) can satisfy different requirements for observing the power spectrum. Auto peak detection and markers are supported.
Zone Trigger View more

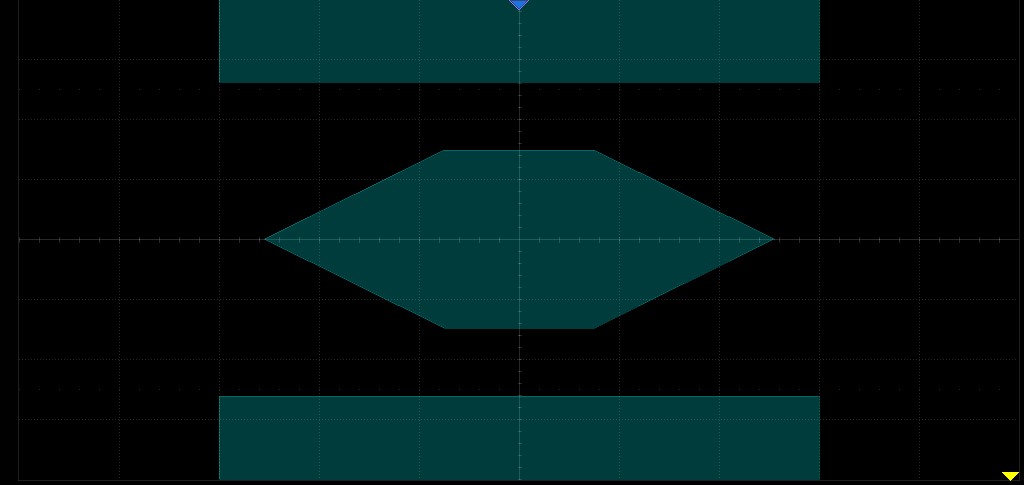

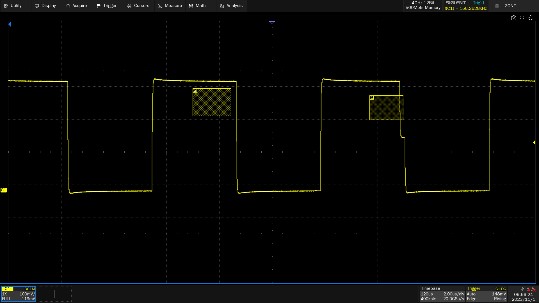

Zone Trigger
Zone Trigger is available for advanced triggering. Combine spatial triggering with common trigger modes to isolate signals of interest
Search and Navigate View more
Search and Navigate

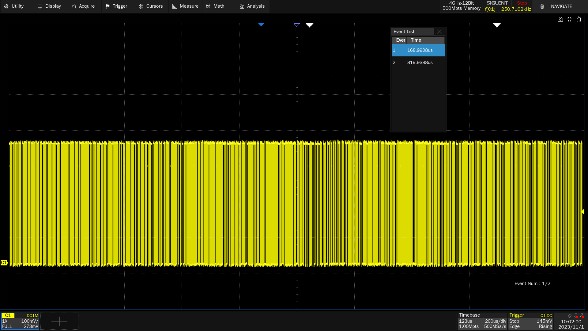

The oscilloscope can search events specified by the user in a frame. Events flagged by the Search can be recalled automatically using Navigate. It can also navigate by time (delay position) and history frames

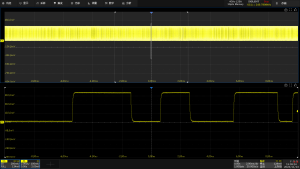

Deep Record Length View more
Deep Record Length
Using hardware-based Zoom technique and record length of up to 1 Gpts, users can select a slower timebase without compromising the sample rate, and then quickly zoom in to focus on the area of interest

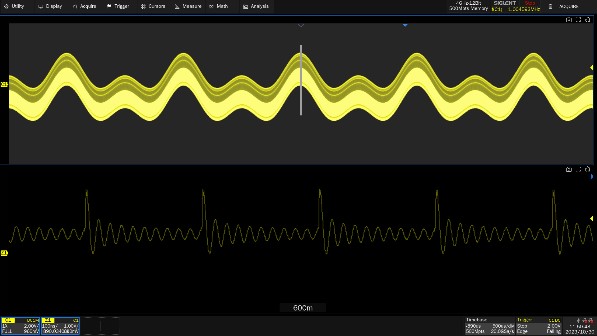

High Waveform Update Rate View more

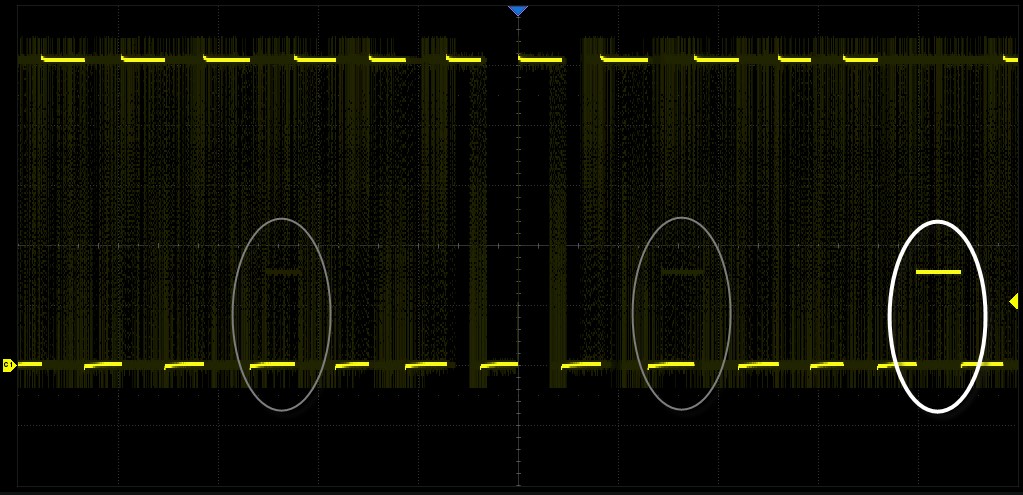

High Waveform Update Rate
With a waveform update rate of up to 1,000,000 wfm/s, the oscilloscope can easily capture unusual or low-probability events. In Sequence mode, the waveform capture rate can reach 1,100,000 wfm/s

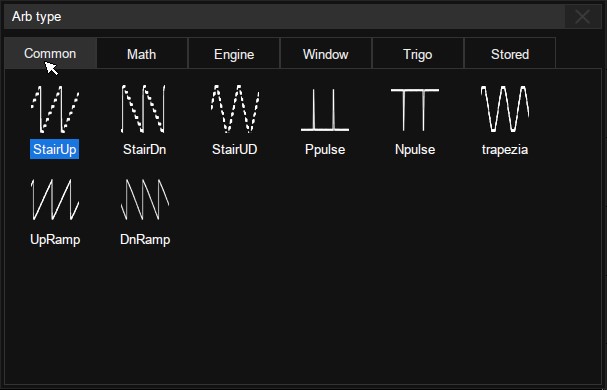

Builit-in 50 MHz Function/Arbitrary Waveform Generator View more

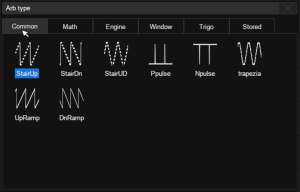

Builit-in 50 MHz Function/Arbitrary Waveform Generator
The oscilloscope can control the built-in waveform generator to output waveform with up to 50 MHz frequency and ±3 V amplitude. Six basic waveforms plus multiple types of arbitrary waveforms are built-in

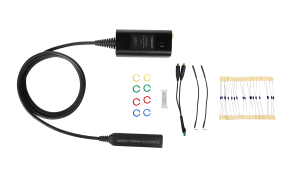

5 GHz Active Differential Probe（SAP5000D） View more
5 GHz Active Differential Probe（SAP5000D）

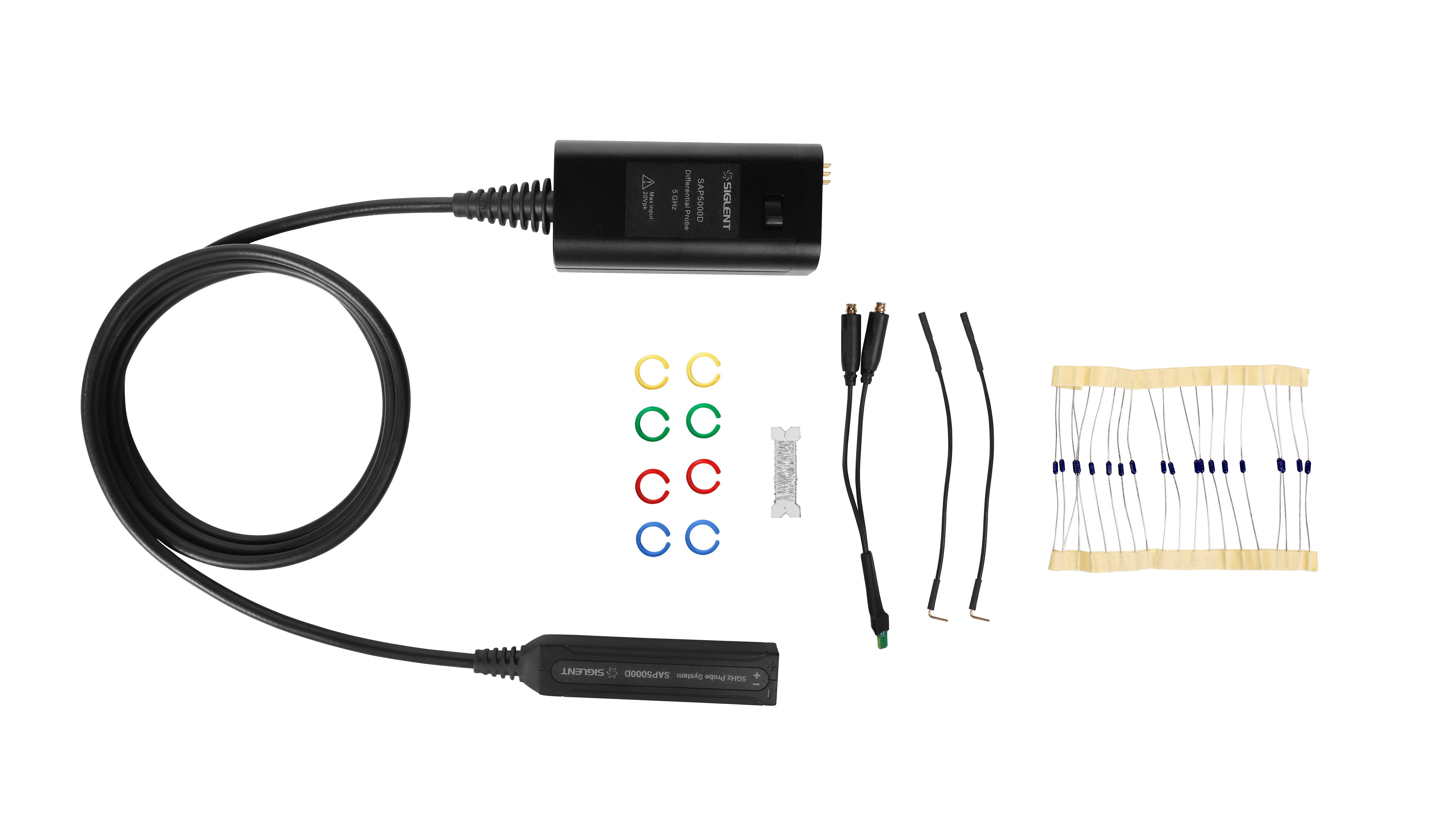

The SAP5000D differential probe is provided with 5GHz bandwidth, 80 ps rise time, 400 fF differential input capacitance, and 10:1 attenuation ratio

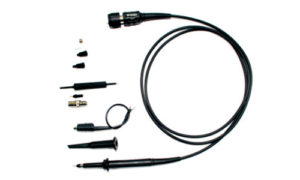

Standard Accessories

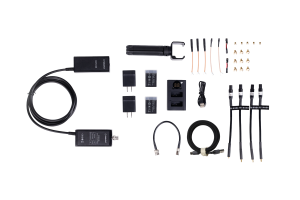

Optional Accessories
Power Rail Probe SAP4000P
4 GHz power rail probe for use with all Siglent SAPBus enabled oscilloscopes. To learn more, click on the SAP4000P User Manual Bandwidth 4 GHz Low frequency resistance 20 kΩ High frequency resistance 50 Ω Offset voltage range ±24 V Attenuation ratio 1.1:1 Dynamic range ±600 mV
Learn more
SP6150A 1.5 GHz Oscilloscope probe
Bandwidth: 1.5 GHz (X10) Input Resistance (Probe + Scope) 500Ω±10Ω Input Capacitance 1.8pF Scope Input Coupling 50Ω Operating Temperature: 0-50℃ For more information, view the SP6150A Datasheet
Learn more
