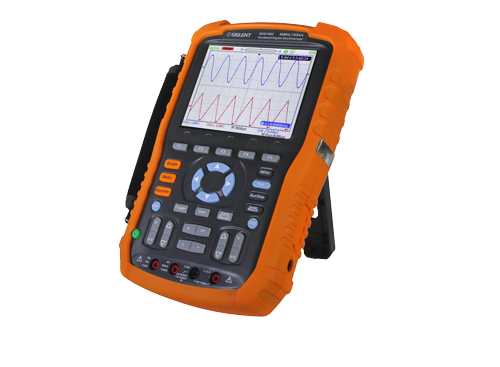

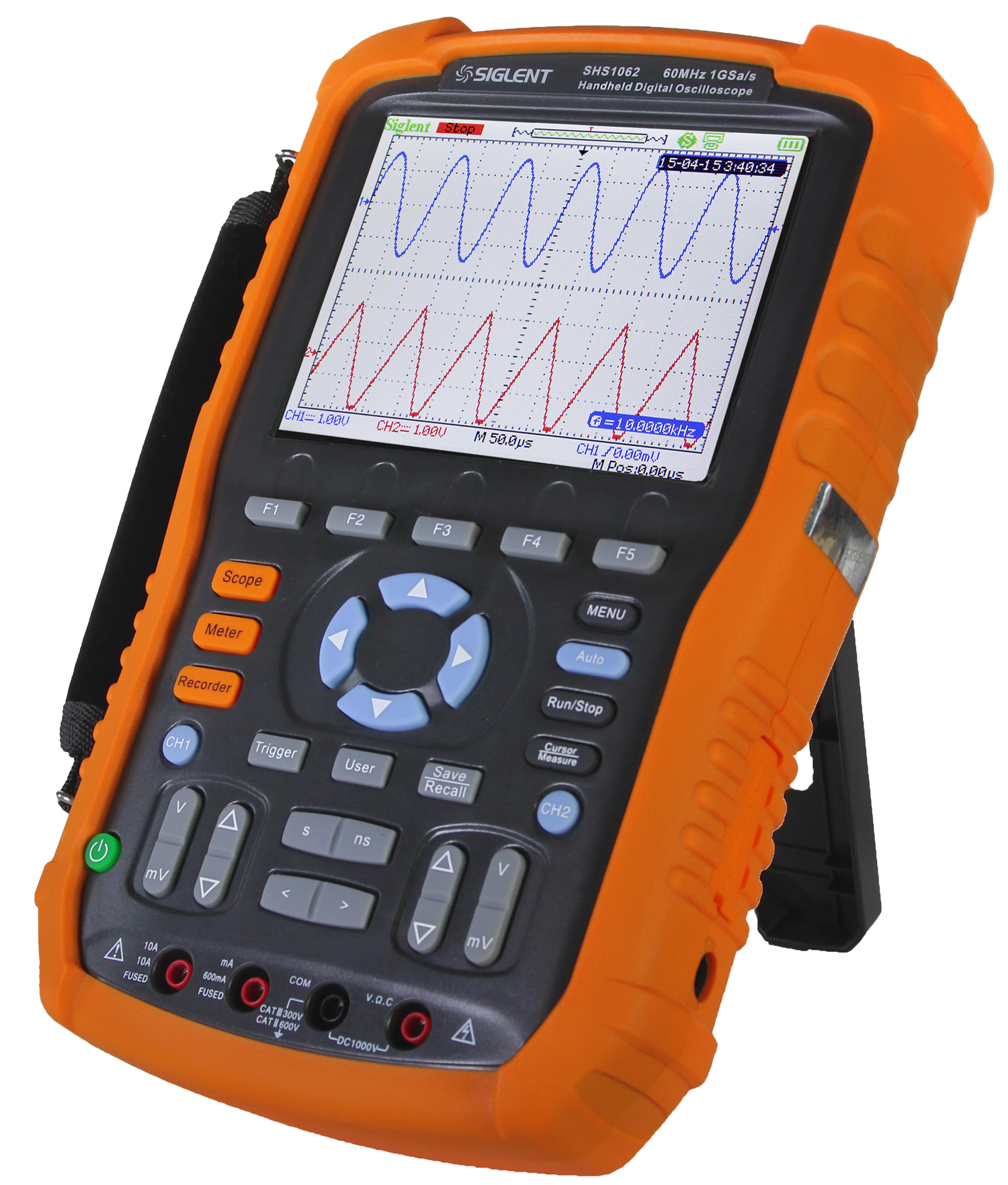

SHS1000 Series Isolated Handheld Digital Oscilloscopes (Discontinued 12.2021)
- Completely isolated oscilloscope input channels, including oscilloscope and multimeter channels
- Combines the functions of an oscilloscope, multimeter and recorder in-one
- Oscilloscope isolation level: CAT II 1000 V and CAT III 600 V
- Quick waveform printing and USB storage
- 60/100 MHz bandwidths, 2 input channels, 2 Mpt memory depth
Product Overview
Siglent’s SHS1000-series handheld digital oscilloscopes take advantage of years of SIGLENT research and development. It adopts many dedicated integrated circuits which allows for a simpler layout, low power consumption and a very small footprint.
| Bandwidth | Channels | Real Time Sampling Rate | Multimeter | Isolation Level | Memory Depth | Price | ||
| SHS1102 | 100 MHz | 2 | 1 GSa/s | voltage, current, resistance. etc 8 regular functions | 1000 V CAT II, 600 V CAT III | 2 Mpts | €1,399 | Discontinued |
| SHS1062 | 60 MHz | 2 | 1 GSa/s | voltage, current, resistance. etc 8 regular functions | 1000 V CAT II, 600 V CAT III | 2 Mpts | €1,099 | Discontinued |
Key Features
- 1 GSa/s real time sampling rate, 50 GSa/s equivalent sampling rate
- Equipped with a high precision multimeter (DCV/I, ACV/I, continuity, and more)
- 3 kinds of cursor modes, 32 automatic waveform measurements
- 5.7 inches color TFT-LCD
- Supports trend plotting and long-duration data recorder function
Product Characteristics
High performance oscilloscope View more
High performance oscilloscope
Isolation from earth and between channel grounds.

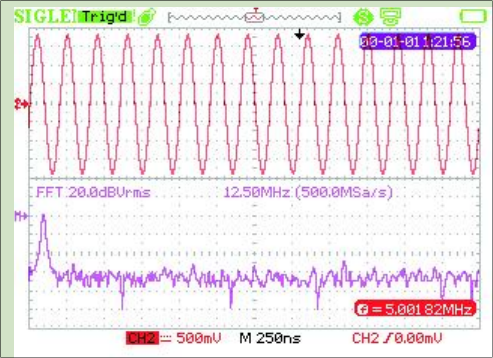

Channel math functions include add, subtract, multiply, divide, FFT.
Digital filter functions: LP, HP, BP, BR
Data recorder View more
Data recorder
Scope Trend Plot
Meter Trend Plot

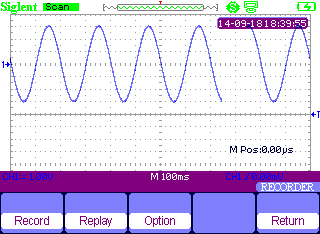

Scope Recorder
Digital multimeter View more

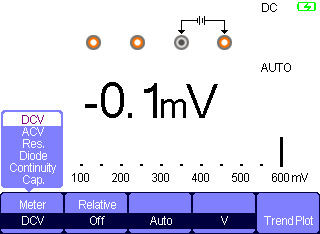

Digital multimeter
3 1/2 digit display.
Measures DCV, ACD, DCI, ACI, Resistance, Diode Test, Capacitance, Continuity
Trend plot View more

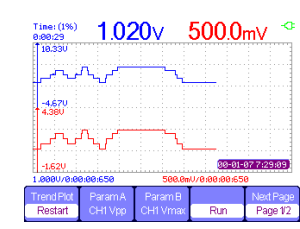

Trend plot
Scope Trend Plot
Meter Trend Plot
Scope Recorder
