SigIQPro Signal Generation Software

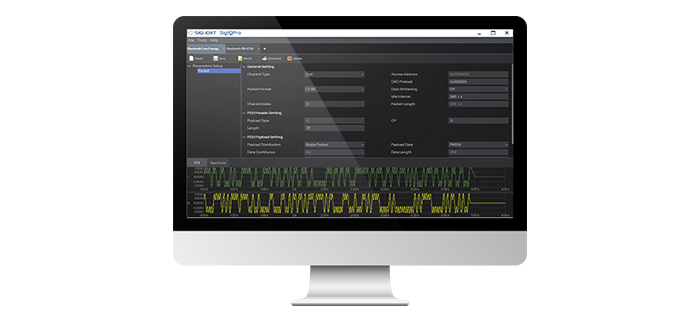

Bluetooth

• Create signals for BR, EDR, LE specifications
• Support 2 Ms/s symbol rate for higher data rate
• Basic and enhanced data rate modulated data streams
• Fully-coded Bluetooth packets with 2-DHx, 2-EVx, 3-DHx, and 3-EVx packet types

IoT (Internet of Things)

• A principally outdoor, low data rate wireless network
• Typically employ mesh or peer-to-peer multi-hop technology to communicate with an access point

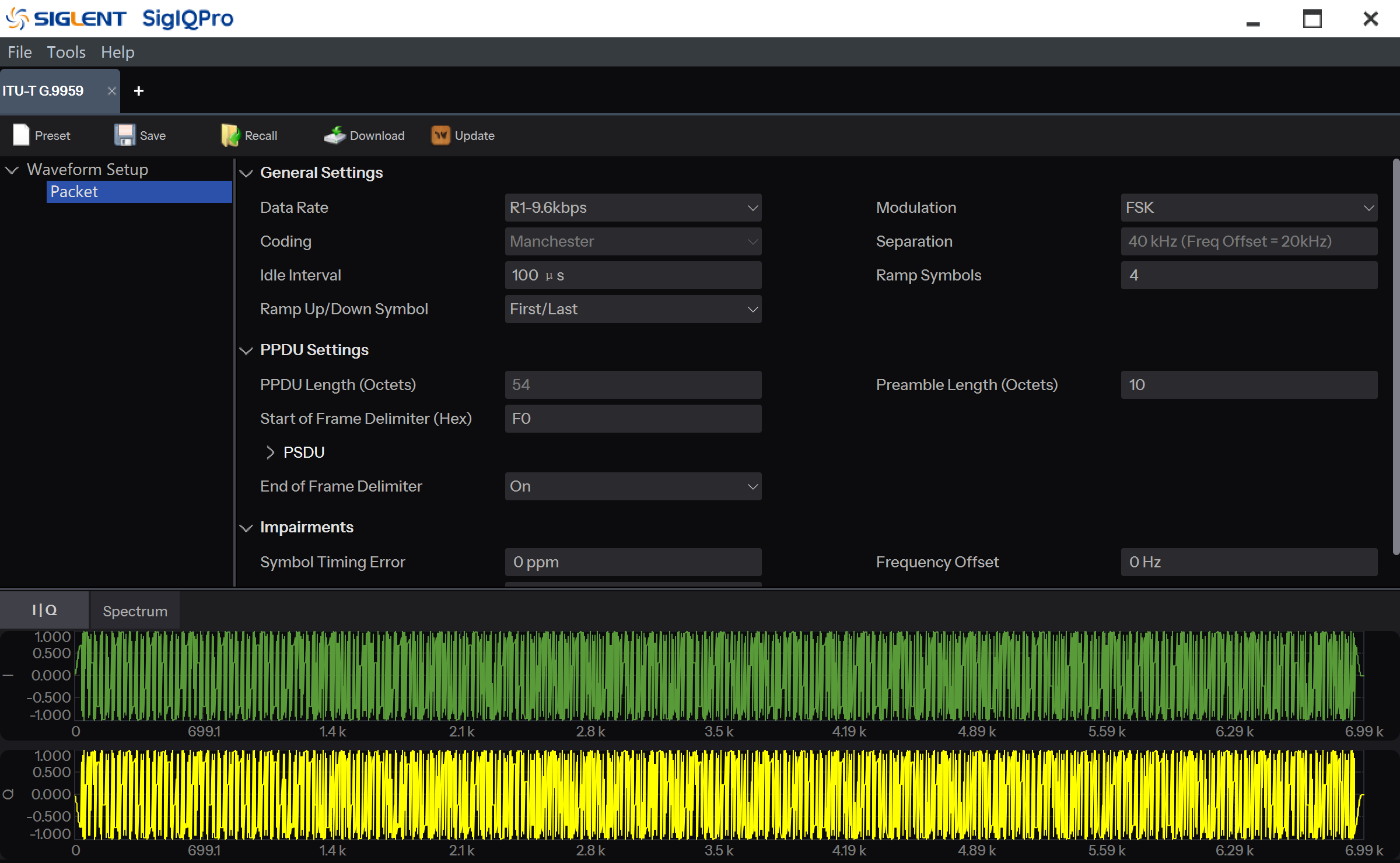

• Create signals for IEEE 802.15.4 SUN FSK and IEEE 802.15.4 SUN OFDM specifications
• Create signals for IEEE 802.15.4 O-QPSK / BPSK ZigBee and ITU-T G.9959 FSK / GFSK Z-Wave specifications

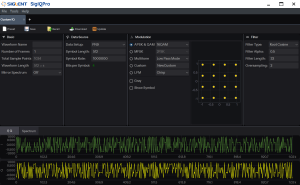

Custom Modulation (Custom IQ and Custom OFDM)

• Custom IQ and Custom OFDM, including Digital modulation, Custom modulation, Multitone and LFM sweep
• Modulation Format:

-2ASK, PR-ASK

-2FSK, 4FSK to 16FSK, MSK

-8QAM, 16QAM to 4096QAM

-BPSK, OQPSK, QPSK, 8PSK, DBPSK, DQPSK, D8PSK, PI/4-DQPSK, PI/8-D8PSK, 16APSK, 32APSK

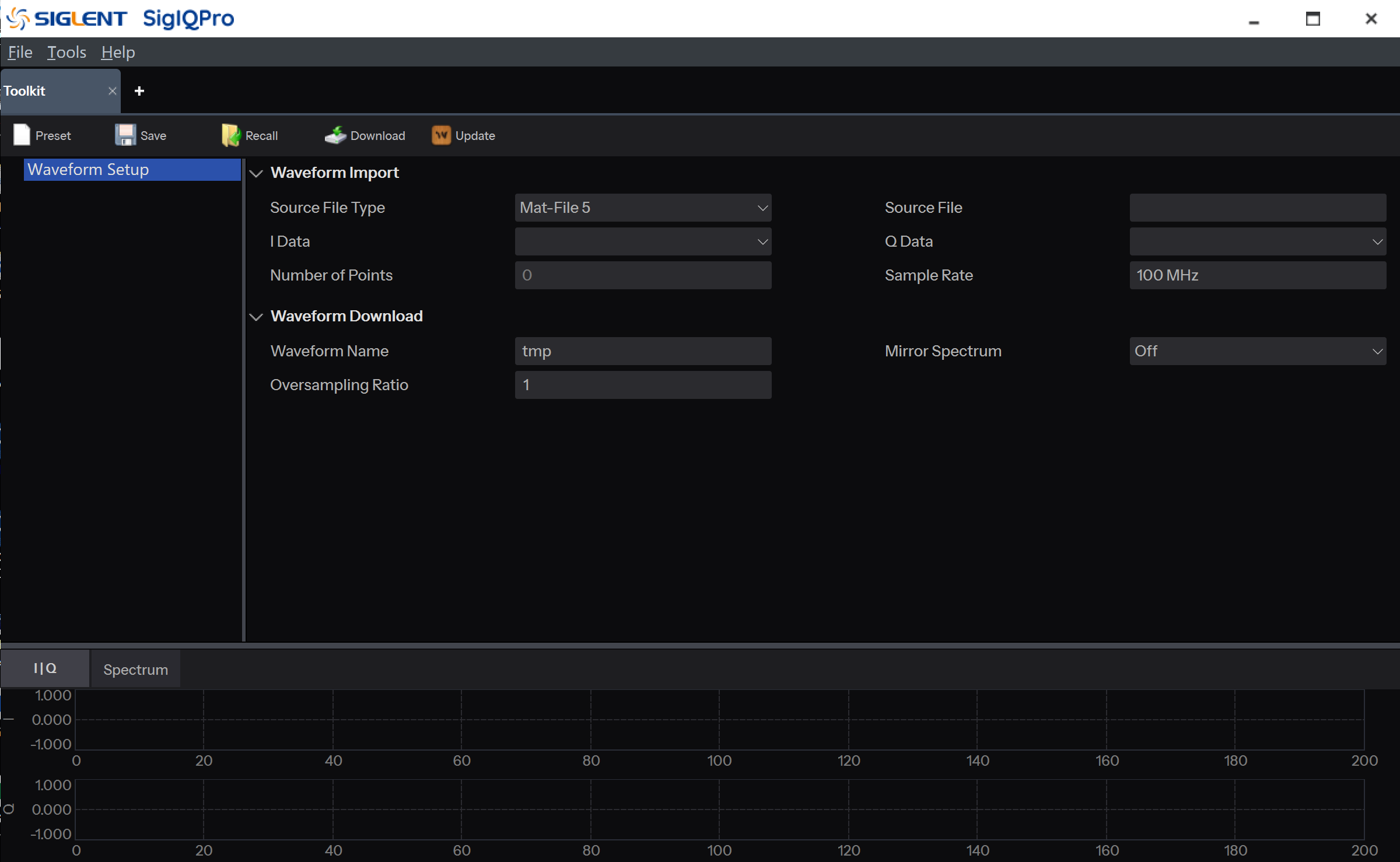

Toolkit

• A file conversion tool, compatible with conversion of various data formats
• Export waveform files (*.arb), project file (*.project) or state files (*.state)
• Import SIGLENT encrypted waveforms (*.arb) or user defined waveforms ( *.txt/.csv/.dat, *.mat, *.project, *.state, etc)

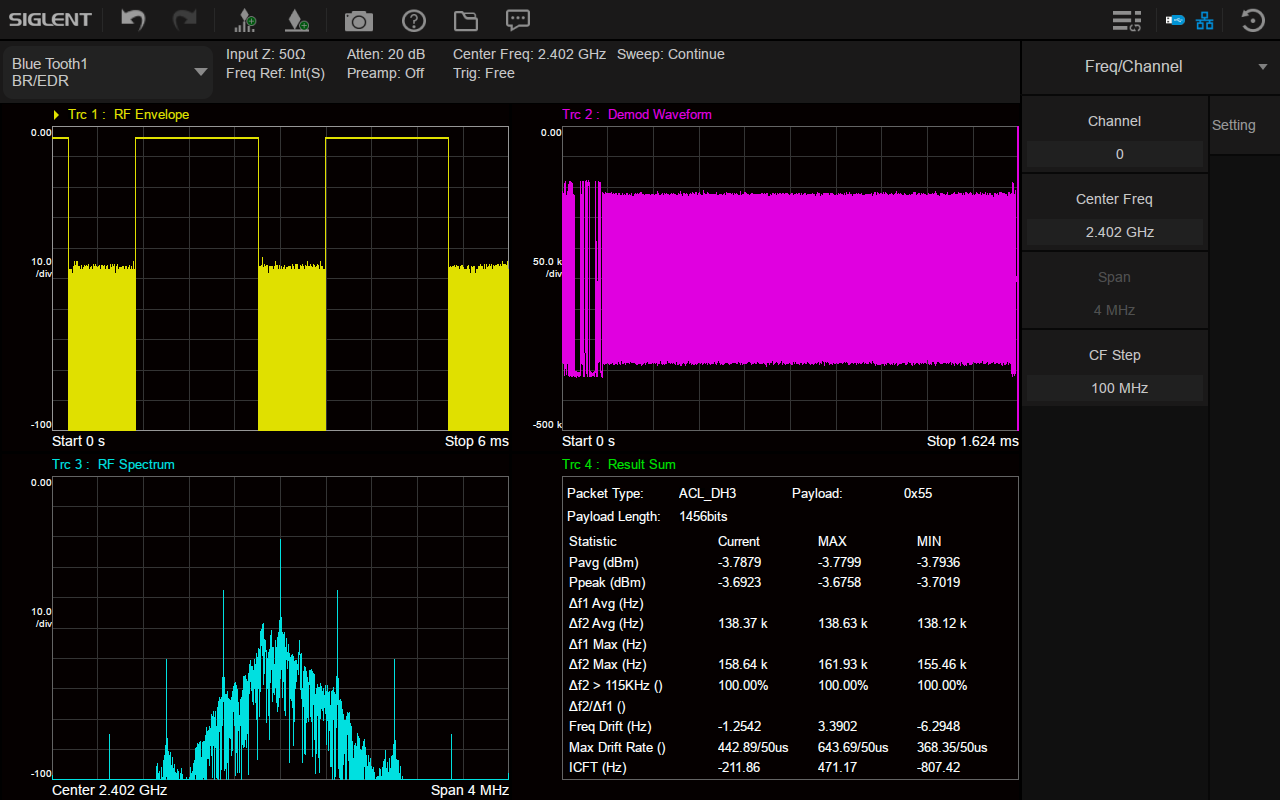

SIGLENT Bluetooth® signal generation and signal analysis solution

Together with SigIQPro signal generation software and SDG7000A/SSG5000X-V, SSA5000A forms an economical and efficient SIGLENT Bluetooth signal generation and signal analysis solution, which accelerates the process from signal generation to data information to evaluation conclusion.

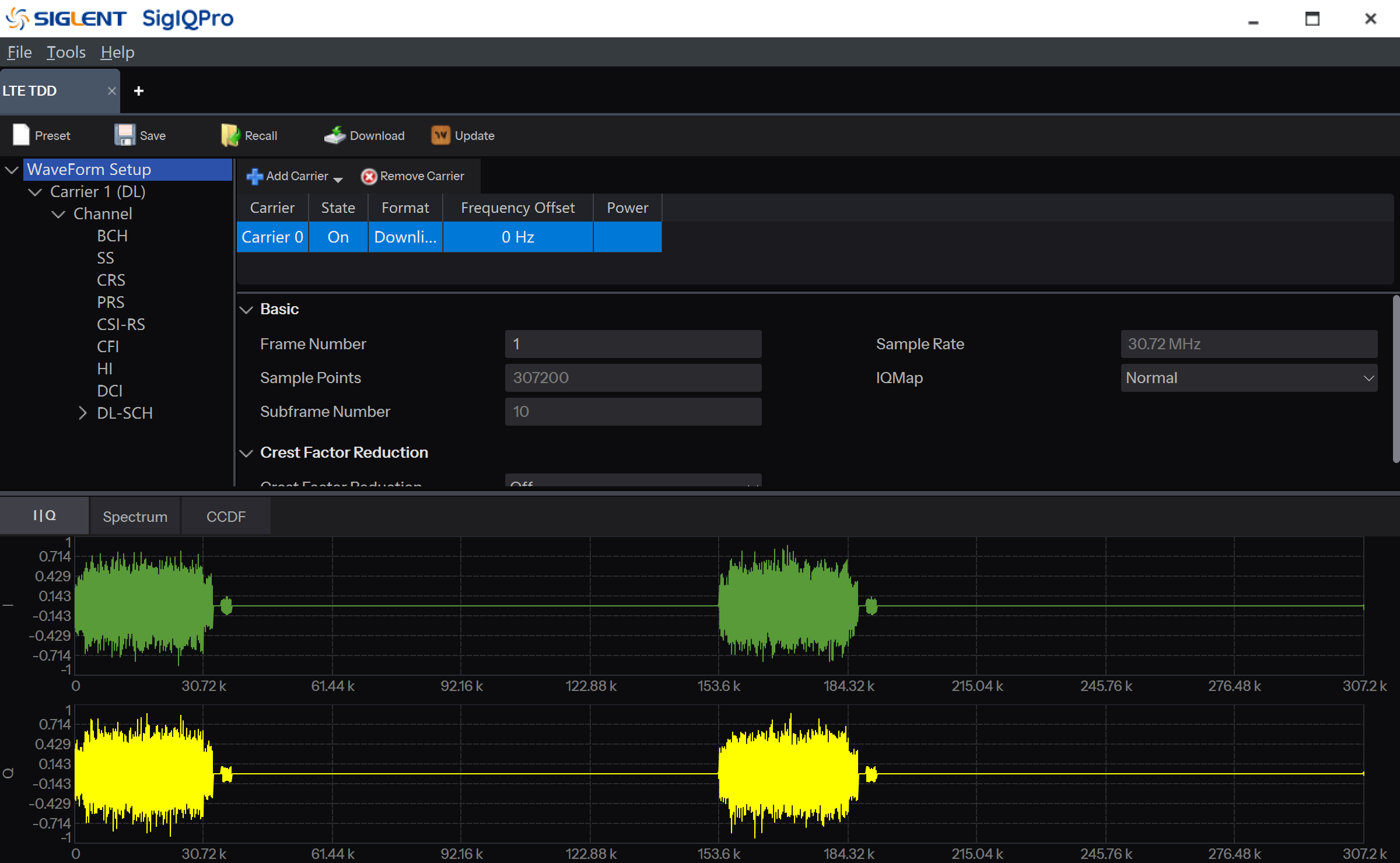

LTE/LTE-A FDD/TDD

• Support the generation and download of signals conforming to 3GPP LTE and LTE-A specifications, and has undergone strict verification and performance optimization.
• Support E-UTRA test model (E-TM) predefined settings conforming to the latest 3GPP protocol.
• Support predefined settings of PUCCH test model conforming to the latest 3GPP protocol.
• Support fixed reference channel (FRC) predefined settings in line with the latest 3GPP protocol.
• Support the predefined setting of reference measurement channel (RMC) conforming to the latest 3GPP protocol.
• arb file waveform export and. sta file parameter export, for users to quickly preset parameters and signal demodulation.

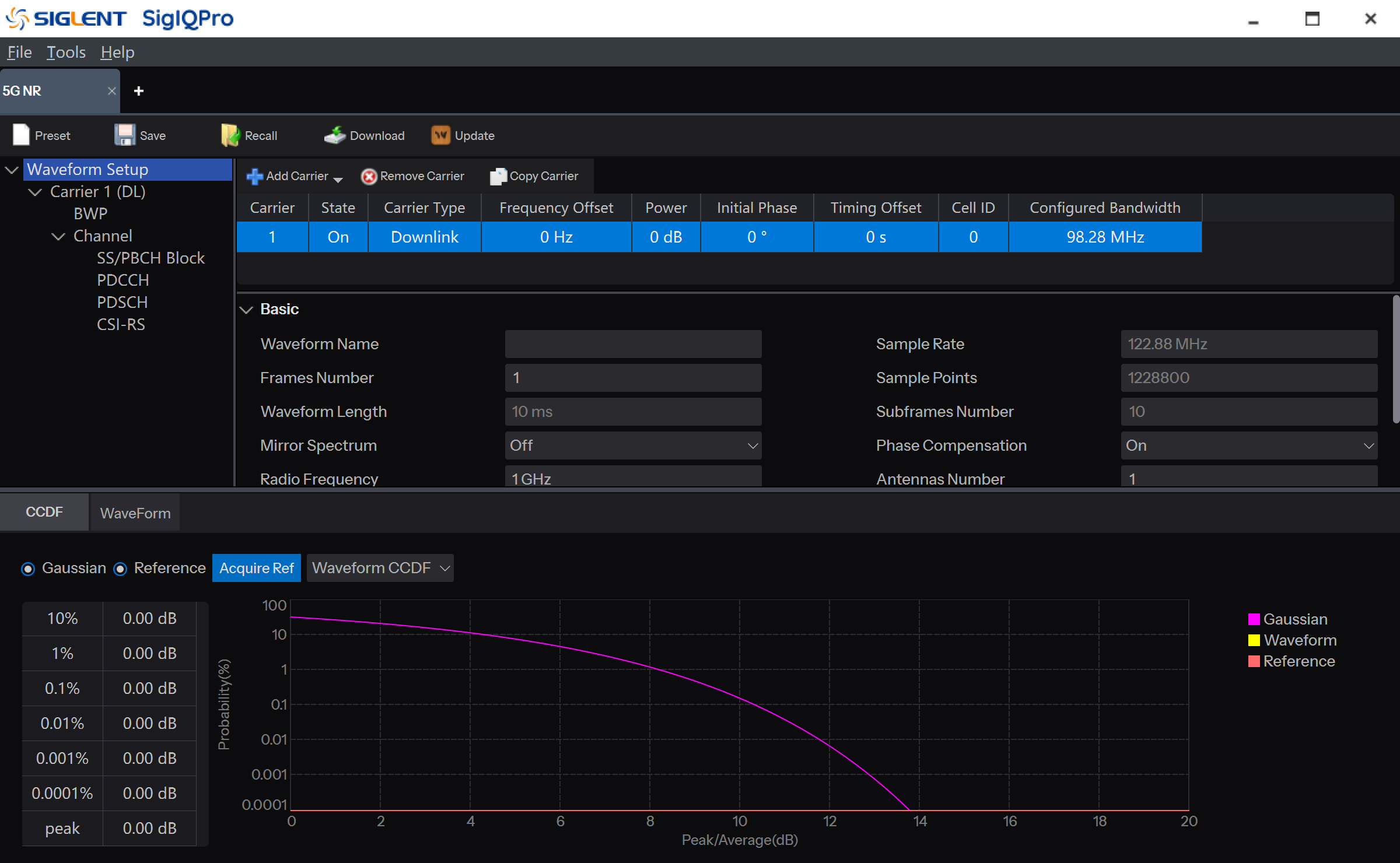

5G NR

• Support the generation and download of cellular protocol standard signals conforming to 3GPP 5G NR specifications, covering 5G NR FR1/FR2-1/FR2-2 frequency bands.
• Parameter preset of NR reference measurement channel (RMC), fixed reference channel (FRC) and Test Model defined by 3GPP standard.
• Support NTN (non-terrestrial network) test mode preset in accordance with 3GPP NR-NTN specification, including RMC\FRC\Test Model test mode.
• Parameter configuration supporting single-carrier and multi-carrier signals
• Support the generation of complex scene signals, and can add parameters such as phase noise and frequency offset to simulate real channel environment.
• Support the multi-channel configuration of downlink PDC \ PUCH \ CSI-RS and uplink PUCH \ PUCH \ SRS, and support the PRACH and downlink SS\BPCH Block channels.
• Support. arb file waveform export and. sta file parameter configuration export, for users to quickly preset parameters and signal demodulation.

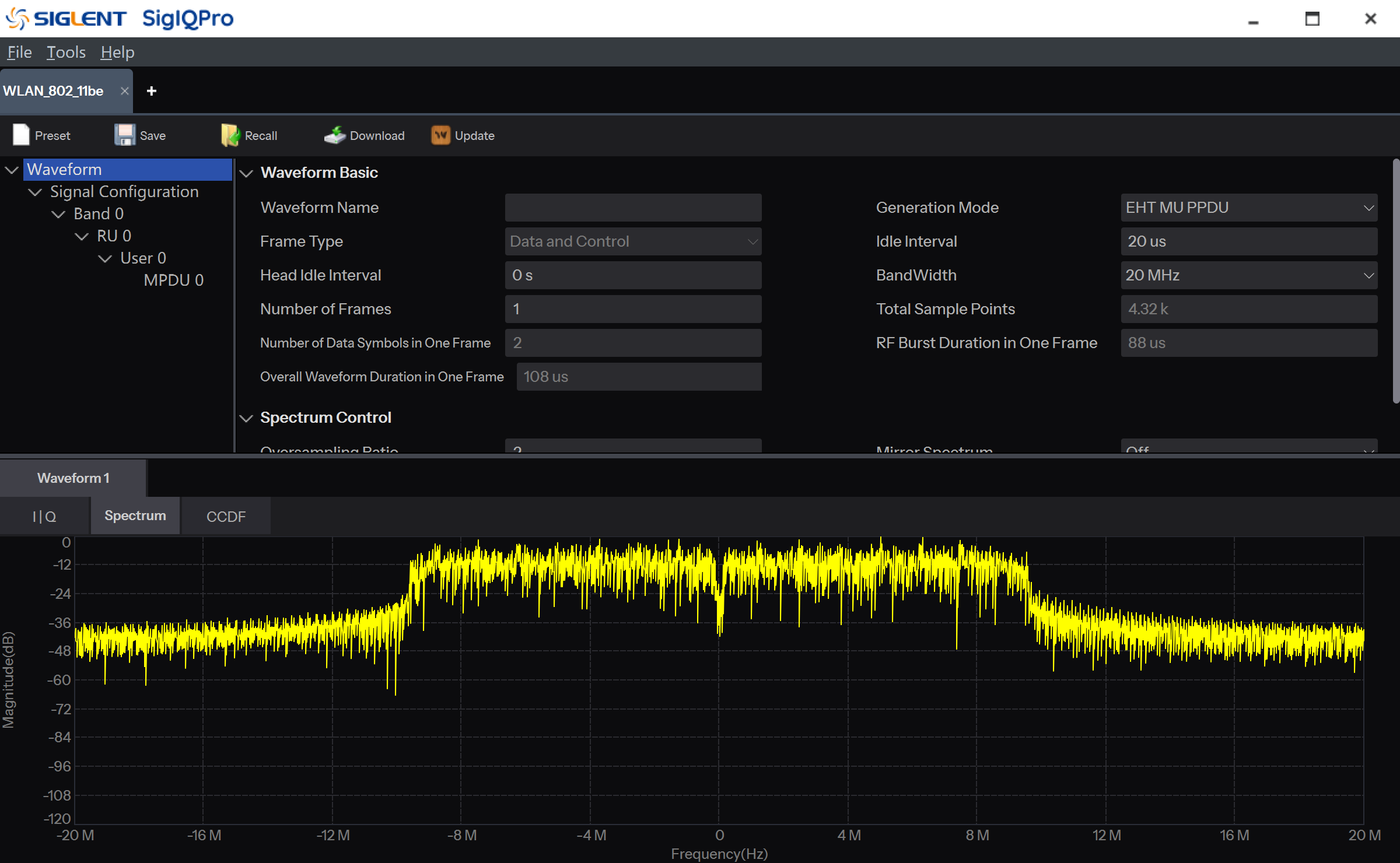

IEEE 802.11ax/be

• Strictly follow the IEEE 802.11ax(Wi-Fi 6) and 802.11be(Wi-Fi 7) standards to generate high-precision reference signals, which are strictly verified and optimized.
• Flexible allocation of OFDMA resource units (RUs) is supported, and RU types such as 26/52/106/242/484/996-tone are dynamically allocated to meet the needs of multi-user scenarios and spectrum fragmentation.
• Support 20/40/80/160/320MHz bandwidth and discontinuous channel aggregation, and is compatible with 20MHz subchannel Puncturing to maximize spectrum utilization.
• Support BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM and 4096QAM modulation and dual-carrier aggregation modulation (DCM) to improve single-stream rate and anti-interference ability.
• Support BCC (Binary Convolutional Code) and LDPC (Low Density Parity Check Code), covering 1/2 to 5/6 coding rate.
