Spectrum Analyzers

Siglent’s innovative spectrum analyzers provide reliable measurement precision and a wide range of RF measurement functions. They incorporate all-digital IF technology and have frequency ranges from 9 kHz to 26.5 GHz for use for almost any application.

Compare Models

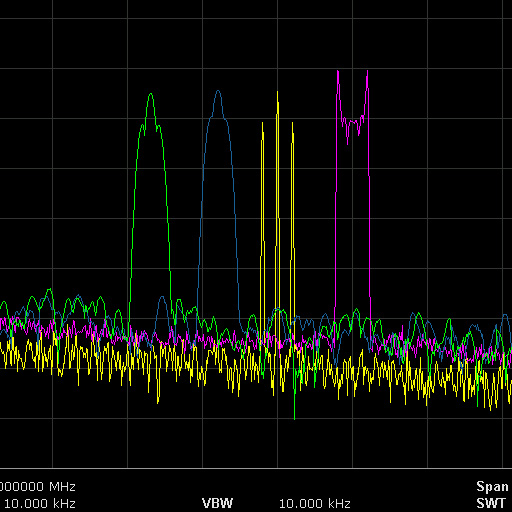

Powerful and Reliable Automatic Measurements

Siglent’s spectrum analyzers offer a frequency range of 9 KHz to 1.5/2.1/3.2/7.5/13.6/26.5 GHz. With their light weight, small size, and friendly user interface, they present a bright easy to read display, powerful and reliable automatic measurements, and plenty of impressive features.

Siglent’s spectrum analyzers include EasySpectrum software, which provides a remote control interface for SIGLENT SSA3000 Series of spectrum analyzers. It can be used to ease data collection, remote monitoring, and pre-compliance test sequencing.

Applications include research and development, education, production, maintenance, and pre-compliance.

For a full summary of our RF measurement instruments, click on our Spectrum Analyzer Features and Options Tables.

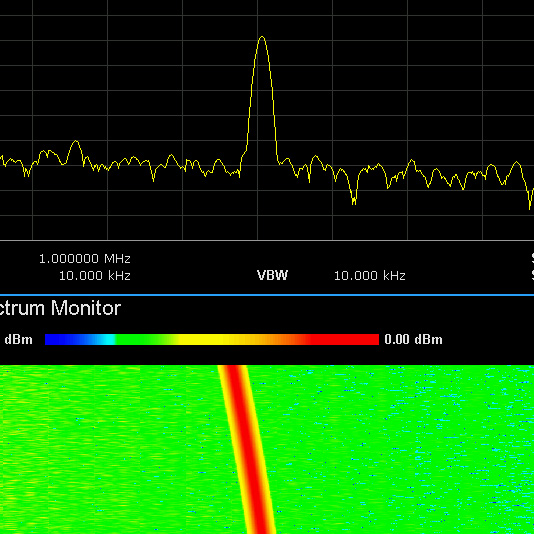

Real Time Spectrum Analysis

Multi-view and dimensions to monitor complex signals

Modulation Analysis

AM/FM, ASK/FSK/PSK/MSK/QAM Vector Signal Modulation Analysis and EVM evaluation

Tracking Generator

All SSAs have the tracking generator hardware installed for easy component/filter testing

SeriesFrequency RangeResolution Bandwidth (RBW)Phase NoiseTotal Amplitude AccuracyDisplay Average Noise Level (DANL)Price
SSA5000A9 kHz to 13.6/26.5 GHz1 Hz~10 MHz<-105 dBc/Hz<0.5 dB-165 dBm/Hz€15,980 - €18,720
SSA3000X-R9 kHz to 3.2/5.0/7.5 GHz1 Hz~3 MHz<-98 dBc/Hz< 0.7 dB-165 dBm/Hz€3,995 - €9,115
SSA3000X Plus9 KHz to 1.5/2.1/3.2/7.5 GHz1 Hz ~3 MHz< -98 dBc/Hz< 0.7 dB-165 dBm/Hz€999 - €6,509
SSA3000X9 KHz to 2.1/3.2 GHz1 Hz to 1 MHz, in 1-3-10 sequence<-98 dBc/Hz @ 1 GHz, 10 kHz offset± 0.7 dB-161 dBm/Hz, Normalized to 1 Hz (typ.)€1,299 - €2,259
SVA1000X 9 KHz to 1.5/3.2/7.5 GHz1 Hz to 3 MHz, in 1-3-10 sequence<-98 dBc/Hz @ 1 GHz, 10 kHz offset± 1.2 dB-165 dBm/Hz, Normalized to 1 Hz (typ.)€1,359 - €7,609
SHA850A9 kHz to 3.6GHz/7.5 GHz1 Hz ~ 3 MHz, in 1-3-10 sequence-104 dBc/Hz±0.7 dB-165 dBm/Hz€3,910 - €6,480
