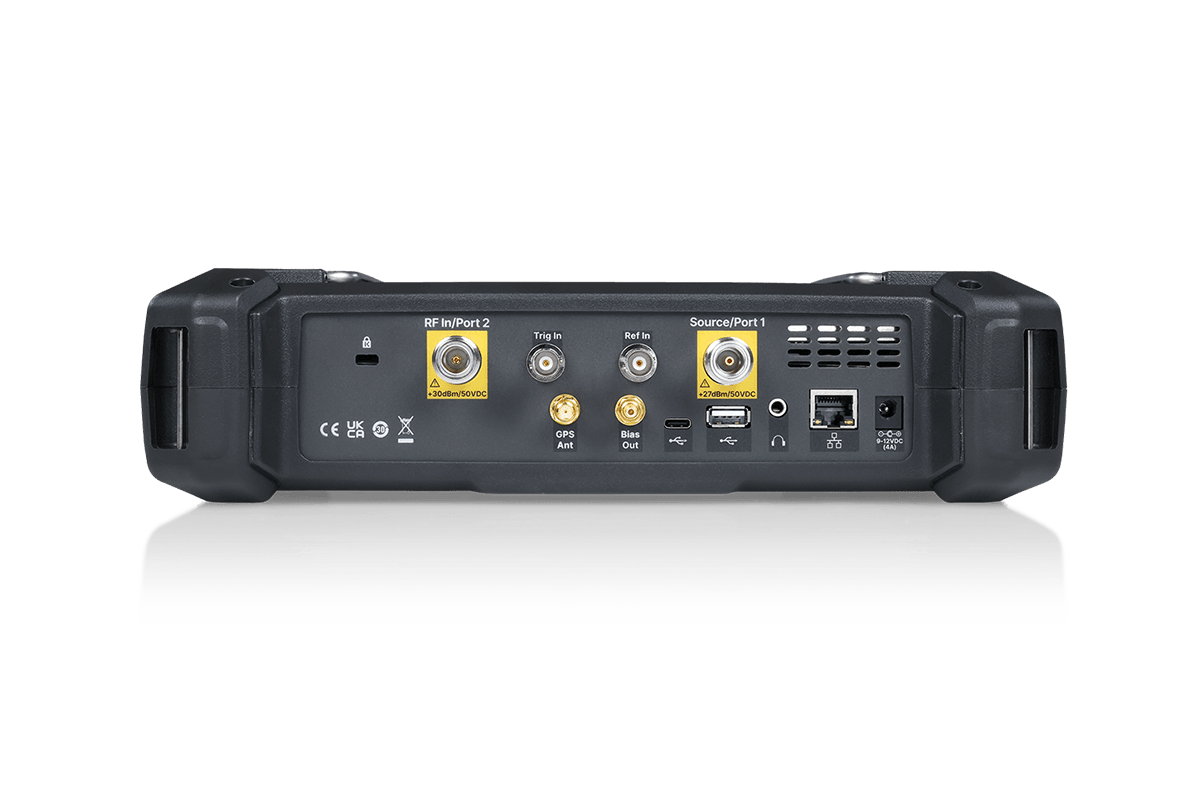

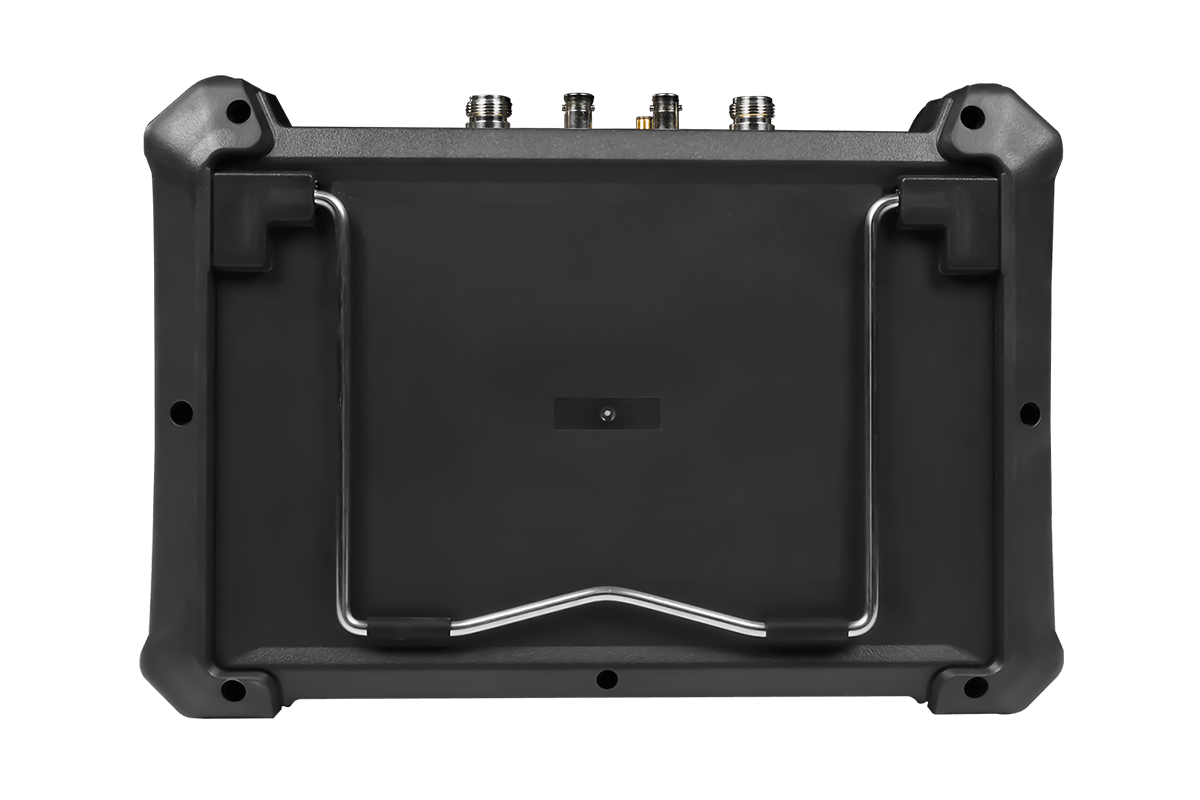

SHA860A Series Handheld Signal Analyzer
- Frequency Range 9 kHz~3.6/7.5 GHz
- Displayed Average Noise Level -165 dBm/Hz
- Phase Noise -104 dBc/Hz at 1 GHz, 10 kHz offset
- Real-Time Analysis Bandwidth 40/110 MHz
- 5G NR and LTE FDD/TDD OTA Measurement
- Trace Recording/Playback with GNSS Location
- Standard Preamplifier, 8.4” Touch Screen, 2.5 hours Working Time
Product Overview

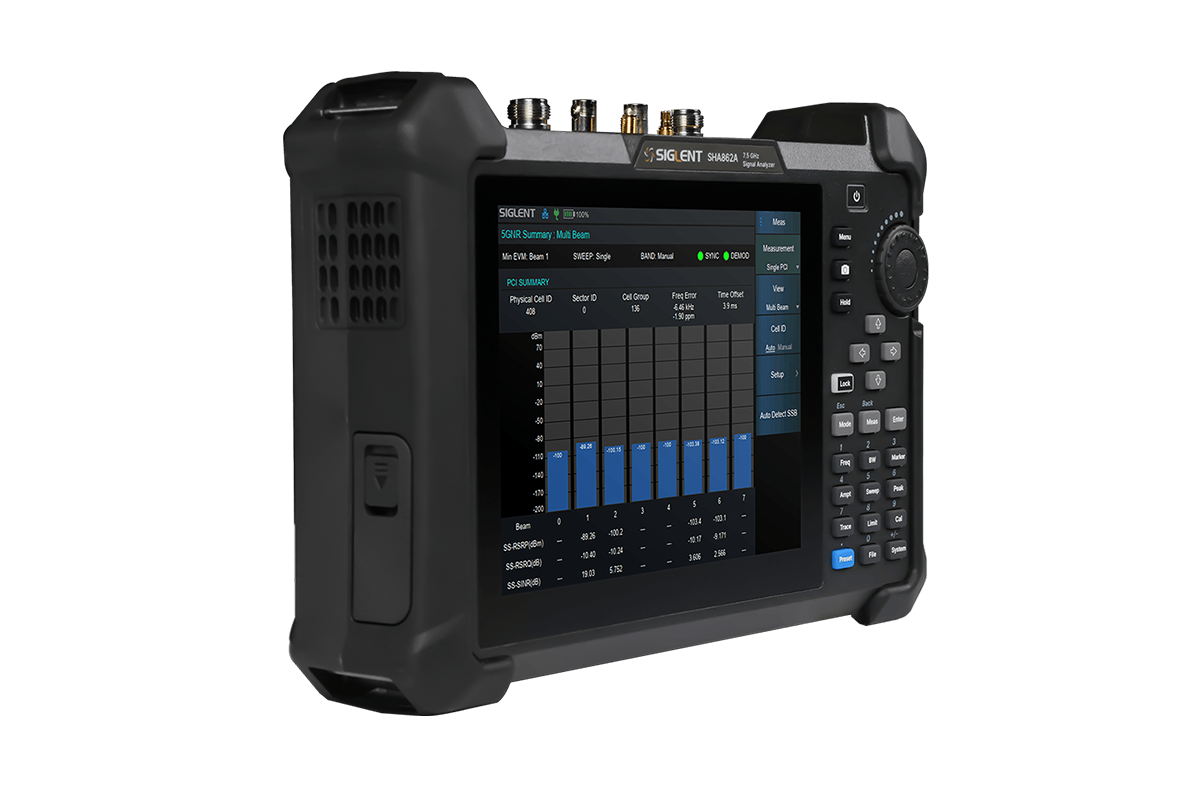

Siglent SHA860A series, a next-generation handheld signal analyzer, integrates spectrum analysis, vector network analysis, and cable/antenna testing into a single portable platform, offering a comprehensive solution for 5G/LTE base station deployment and maintenance. Supporting a 9 kHz to 7.5 GHz frequency range and 110 MHz real-time bandwidth, it features advanced capabilities like 5G NR/LTE OTA testing, real-time spectrum analysis, pulse profile analysis, and GPS-synchronized indoor/outdoor mapping. This empowers technicians to optimize beam performance, troubleshoot interference, and accelerate network deployment with precision, while its integrated design enhances on-site testing efficiency and portability.
| Frequency Range | Resolution Bandwidth (RBW) | Phase Noise | Total Amplitude Accuracy | Display Average Noise Level (DANL) | Price | ||
|---|---|---|---|---|---|---|---|
| SHA861A | 9 kHz~3.6 GHz | 1 Hz ~ 10 MHz, in 1-3-10 sequence | -104 dBc/Hz | ±0.7 dB | -165 dBm/Hz | € 8,520 | Buy Now |
| SHA862A | 9 kHz~7.5 GHz | 1 Hz ~ 10 MHz, in 1-3-10 sequence | -104 dBc/Hz | ±0.7 dB | -165 dBm/Hz | € 12,460 | Buy Now |
Key Features

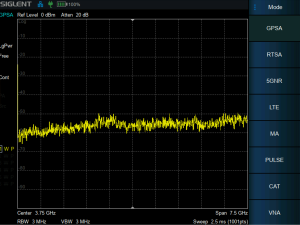

- Frequency Range 9 kHz~3.6/7.5 GHz, 5 kHz usable
- Displayed Average Noise Level (DANL) -165 dBm/Hz
- SSB Phase Noise -104 dBc/Hz.@1 GHz, 10 kHz offset
- Analysis Bandwidth 40/110 MHz
- 5G NR OTA Measurement, multi-PCI and multi-beam analysis
- LTE FDD and TDD OTA Measurement, multi-PCI analysis

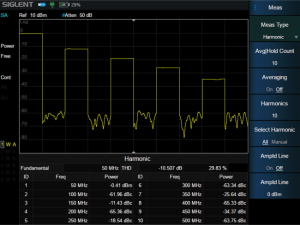

- Channel Power, Occupied Bandwidth, Adjacent Channel Power, SHI and TOI etc.
- IQ Data Acquisition in 110 MHz Band Width
- Real-Time Spectrum Analysis in 110 MHz Band Width, 100% POI time 3.51 μs
- Pulse Profile Measurements
- Indoor and outdoor map for Coverage Mapping

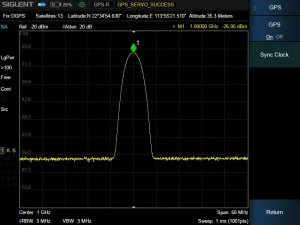

- Trace Recording/Playback with GNSS location

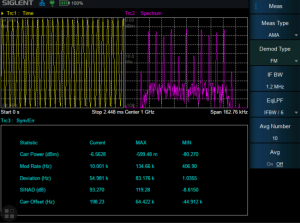

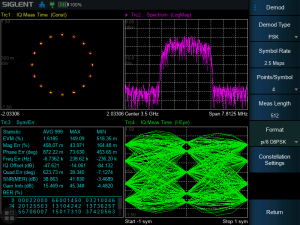

- AM/FM/PM Analog Modulation Analysis, and ASK/FSK/PSK/MSK/QAM Digital Modulation Analysis
- AM/FM/PM Analog Modulation Audio Tune & Listening

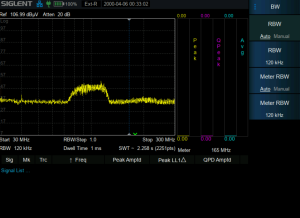

- Field Strength (EMF) Measurements and EMI Measurements
- Independent Source to 7.5 GHz
- Vector Network Analyzer, 1-Path 2-Ports S11 and S21 Network Analysis
- S11 directionality 40 dB, S21 dynamic 114 dB
- Cable and Antenna Test, Distance To Fault and Time Domain Analysis

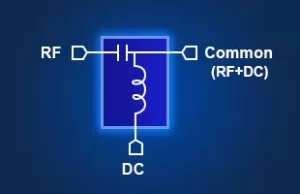

- TTA test, bias out 12V to 32V DC
- Chargeable Battery working time 2.5 hours, 3.2 kg net weight
- 8.4 lnch Multi-Touch Screen, mouse and keyboard supported
Product Characteristics
5G NR OTA Measurement View more

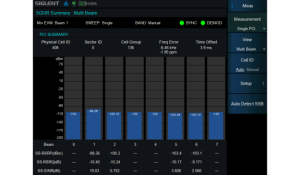

5G NR OTA Measurement
During 5G base station deployment, operators require precise validation of network quality and beam performance. The SHA860A’s 5G NR OTA mode demodulates signals to extract key parameters, including frequency, physical cell identity (PCI), SSB index, frequency error, and error vector magnitude (EVM) for the SSB portion, visualized via constellation diagrams. This functionality is vital for optimizing 5G Non-Standalone (NSA) deployments, ensuring seamless coordination between LTE and 5G networks.
LTE TDD/FDD OTA Measurement View more

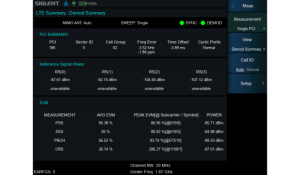

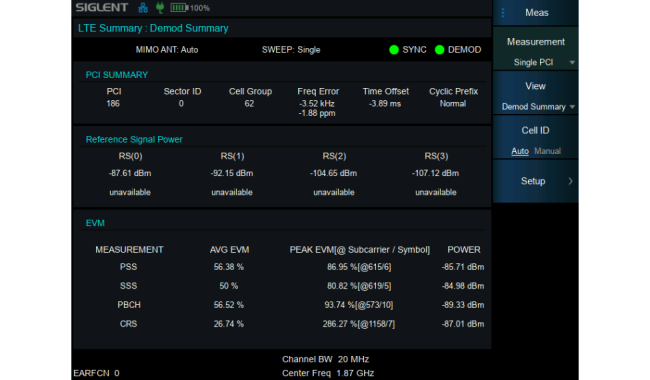

LTE TDD/FDD OTA Measurement
The LTE OTA testing feature provides comprehensive demodulation metrics such as PCI, sector ID, cell group, frequency error, time offset, synchronization status, and power levels (PSS/SSS/CRS/PBCH), alongside EVM measurements and constellation diagrams. By analyzing signal quality, channel performance, and interference across multiple cells, technicians can implement targeted strategies to enhance network efficiency and user experience.
Real-Time Spectrum Analysis View more

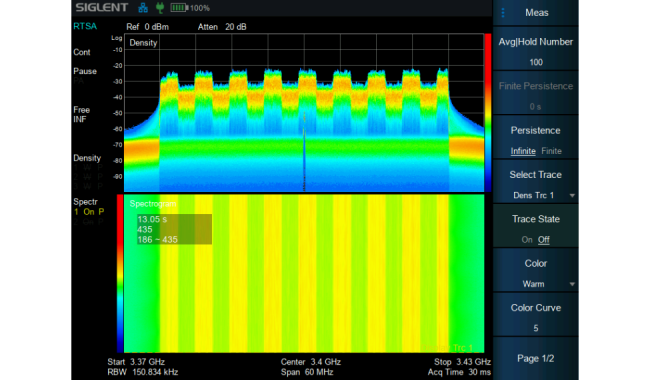

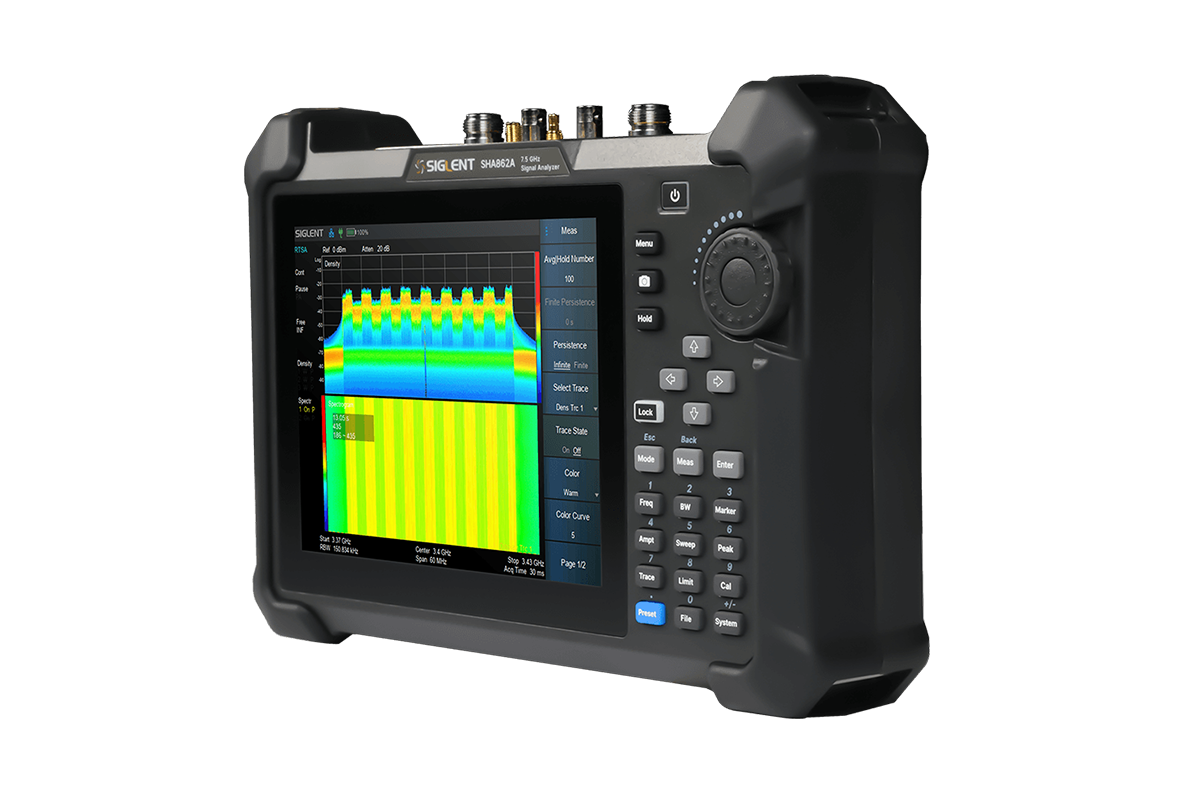

Real-Time Spectrum Analysis

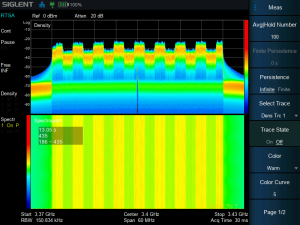

With a 110 MHz real-time bandwidth and 300,000 FFT/s processing speed, the SHA860A captures transient signals as short as 3.51 µs at 100% Probability of Intercept (POI). Advanced tools like frequency mask triggering (FMT), Density, 3D, Spectrogram, and Power vs. Time (PvT) displays enable multi-dimensional analysis of complex signals, ideal for interference hunting and spectrum monitoring in dynamic 5G environments.
Cable and Antenna Test View more

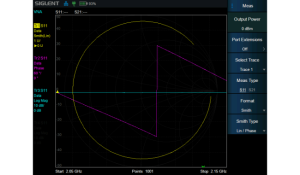

Cable and Antenna Test

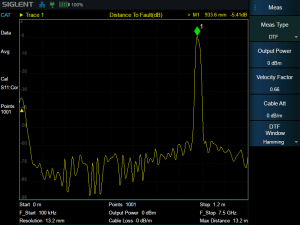

Component faults compromise base station performance, leading to coverage gaps and signal strength degradation. The SHA860A streamlines maintenance with rapid single-port cable loss, return/insertion loss, VSWR, and distance-to-fault measurements. An optional upgrade adds 1-Path 2-Port vector network analyzer functionality, supporting S11/S21 testing, Smith chart displays, and a remarkable 114 dB dynamic range for precise amplitude/phase response analysis.
Pulse Profile Analysis View more
Pulse Profile Analysis

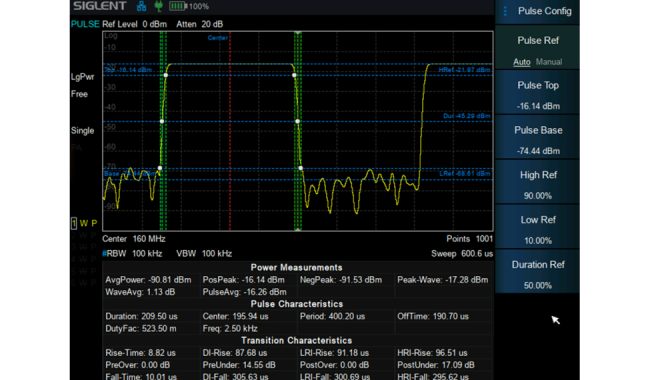

The pulse analysis function featuring 10,001 measurement points to evaluate power, pulse transitions, and signal characteristics using multiple detection modes (positive/negative peak, sample, average, and conventional). This ensures rigorous validation of RF device performance in real-world conditions.
IQ Data Acquisition View more

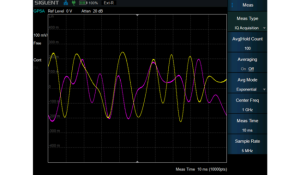

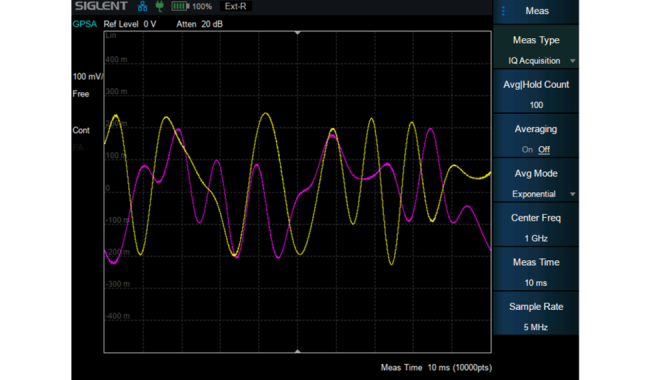

IQ Data Acquisition
Signal and spectrum analyzer with IQ data acquisition function is a common signal acquisition tool. Equipped with 1 GB RAM, 300 MHz sample rate, and 110 MHz bandwidth, the SHA860A provides a powerful combination of specifications, functions and portability for users collecting data in the field environment. Users can transmit and store IQ data via USB or LAN for offline analysis, so as to reproduce signals and visualize spectrum details with unmatched clarity.
Indoor/Outdoor Mapping View more

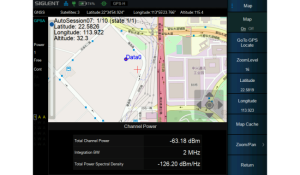

Indoor/Outdoor Mapping

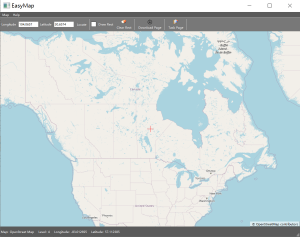

Beyond base station testing, identifying 5G/LTE coverage in specific areas is crucial. The indoor/outdoor mapping feature enables technicians to locate base stations, track antenna orientation/height, and identify weak coverage or high-interference zones. With data logging, playback, and ±0.01 ppm accuracy post-GPS lock, it simplifies network optimization in both indoor and outdoor environments.
Standard Accessories
Optional Accessories
ANT-DA1
Directional Antenna Suit, N type, To know more，click the 《Directional Antenna Datasheet》
Learn more
ANT-DA11
Contains amplifier handle and 10MHz ~ 200MHz antenna. Antenna gain 10dB (typical value); SWR <1:1.9 (typical value); 50Ω/N type, female; polarization direction horizontal and vertical. To know more，click the 《Directional Antenna Datasheet》
Learn more
ANT-DA12
Contains amplifier handle and 200MHz ~ 500MHz antenna. Antenna gain 10dB (typical value); SWR <1:1.9 (typical value); 50Ω/N type, female; polarization direction horizontal and vertical. To know more，click the 《Directional Antenna Datasheet》
Learn more
ANT-DA13
Contains amplifier handle and 500MHz ~ 8GHz antenna. Antenna gain 10dB (typical value); SWR <1:1.9 (typical value); 50Ω/N type, female; polarization direction horizontal and vertical. To know more，click the 《Directional Antenna Datasheet》
Learn more
F504TS
Mechanical Calibration Kit: N-type, Male and Female, 50 Ω Calibration Kit, 0-9 GHz, Torque Wrench
Learn more
F503FE
Mechanical Calibration Kit: N-type, Open (F), Short (F), Match (F,50), Through (F-F), 50 Ω, DC-4.5 GHz
Learn more
F503ME
Mechanical Calibration Kit: N-type, Open (M), Short (M), Match (M,50), Through (M-M), 50 Ω, DC-4.5 GHz
Learn more
F504FS
Mechanical Calibration Kit: N-type, Open (F), Short (F), Match (F,50), Through (F-F), 50 Ω, DC-9 GHz
Learn more
F504MS
Mechanical Calibration Kit: N-type, Open (M), Short (M), Match (M,50), Through (M-M), 50 Ω, DC-9 GHz
Learn more
F603FE
Mechanical Calibration Kit 3.5 mm, Open (F), Short (F), Match (F,50), Through (F-F), DC-4.5 GHz
Learn more
F603ME
Mechanical Calibration Kit: 3.5 mm, Open (M), Short (M), Match (M,50), Through (M-M), 50 Ω, DC-4.5 GHz
Learn more
