SSA3000X-R real-time spectrum analyzers

Spectrum Analyzer Frequency Range from 9 kHz up to 3.2 GHz / 5.0 GHz / 7.5 GHz
Now with VNA and DTF functions, free!
-165 dBm/Hz Displayed Average Noise Level (Typ.)
-98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
Level Measurement Uncertainty < 0.7 dB (Typ.)
Up to 40 MHz Real Time Analysis Bandwidth
Web Browser Remote Control on PC and Mobile Terminals and File Operation

Product Overview

The SIGLENT SSA3000X-R real-time spectrum analyzers are powerful and flexible tools for complex RF signal monitor and analysis. With a capability of 40 MHz analysis bandwidth and 7.2 µs 100% POI, the analyzer can provide multi-dimensions data displays, advanced triggering, and RF data capturing, to solve modern RF spectrum challenges, like hopping frequency, conflict channel, spectrum interference, etc. They also provide a standard tracking generator for network analysis, optional wideband digital modulation analysis, and EMI pre-compliance test.
Applications include broadcast monitoring/evaluation, cellular site, IoT, WiFi, Bluetooth surveying, research and development, education, production, and maintenance.

Having trouble choosing? Click on Analyzer Features and Options to learn more.

	Frequency Range	Resolution Bandwidth (RBW)	Phase Noise	Total Amplitude Accuracy	Display Average Noise Level (DANL)	Price
SSA3032X-R	9 kHz~3.2 GHz	1 Hz~3 MHz	<-98 dBc/Hz	< 0.7 dB	-165 dBm/Hz	€3,995	Buy Now
SSA3050X-R	9 kHz~5.0 GHz	1 Hz~3 MHz	<-98 dBc/Hz	< 0.7 dB	-165 dBm/Hz	€7,495	Buy Now
SSA3075X-R	9 kHz~7.5 GHz	1 Hz~3 MHz	<-98 dBc/Hz	< 0.7 dB	-165 dBm/Hz	€9,115	Buy Now

Key Features

Spectrum Analyzer Frequency Range from 9 kHz up to 3.2 GHz / 5.0 GHz / 7.5 GHz
-165 dBm/Hz Displayed Average Noise Level (Typ.)
-98 dBc/Hz.@10 kHz Offset Phase Noise (1 GHz, Typ.)
Level Measurement Uncertainty < 0.7 dB (Typ.)
1 Hz Minimum Resolution Bandwidth (RBW)
Preamplifier Standard
Tracking Generator (incl. free of charge)
Vector Network Analyzer Mode Standard (100 kHz up to 3.2 GHz / 5 GHZ / 7.5 GHz)
Distance to Fault Mode Standard
Up to 40 MHz Real Time Analysis Bandwidth
100% POI 7.20 μs, Dynamic Range 60 dB
Multi-view for Density, Spectrogram, PvT, and multi trigger and FMT
Modulation Analysis (Opt.)
EMI Filter and Quasi-Peak Detector Kit(Opt.)
Advanced Measurement Kit (Opt.)

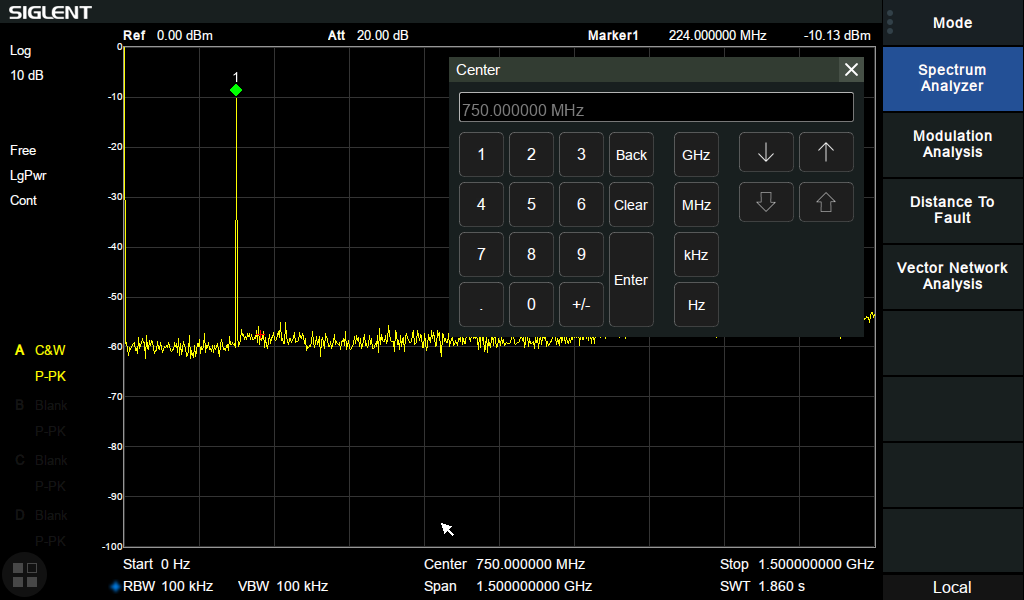

10.1 inch Multi-Touch Screen , Mouse and Keyboard supported
Web Browser Remote Control on PC and Mobile Terminals and File Operation

Need more information? Call us now +49 821 666 0 111 0

Product Characteristics

10.1 lnch Display with Multi-Touch Screen View more

10.1 lnch Display with Multi-Touch Screen

Phase noise <-98 dBc/Hz@1 GHz View more

Phase noise <-98 dBc/Hz@1 GHz

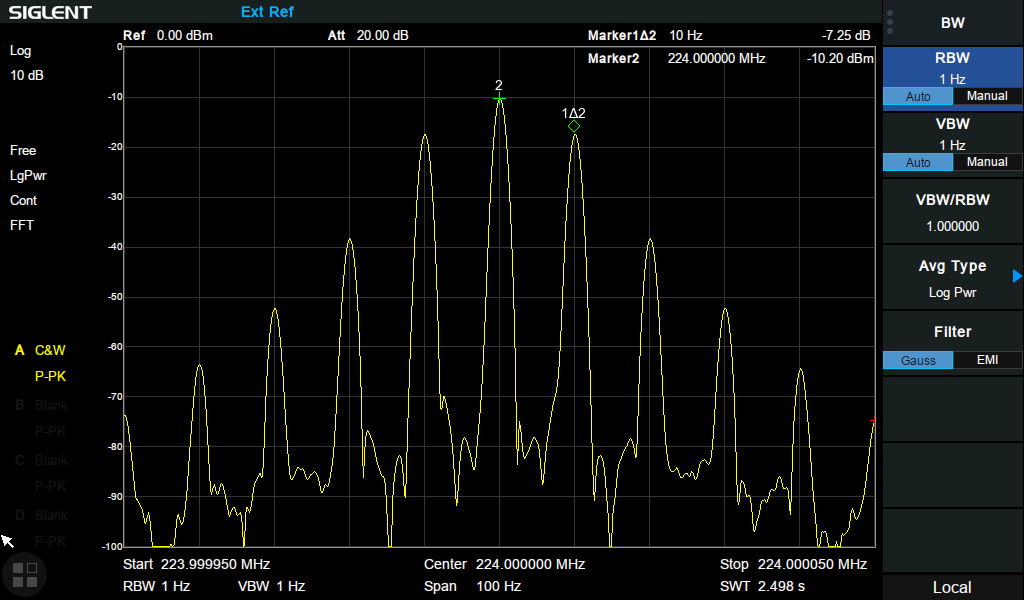

Minimum 1 Hz Resolution Bandwidth (RBW) View more

Minimum 1 Hz Resolution Bandwidth (RBW)

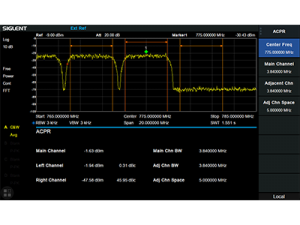

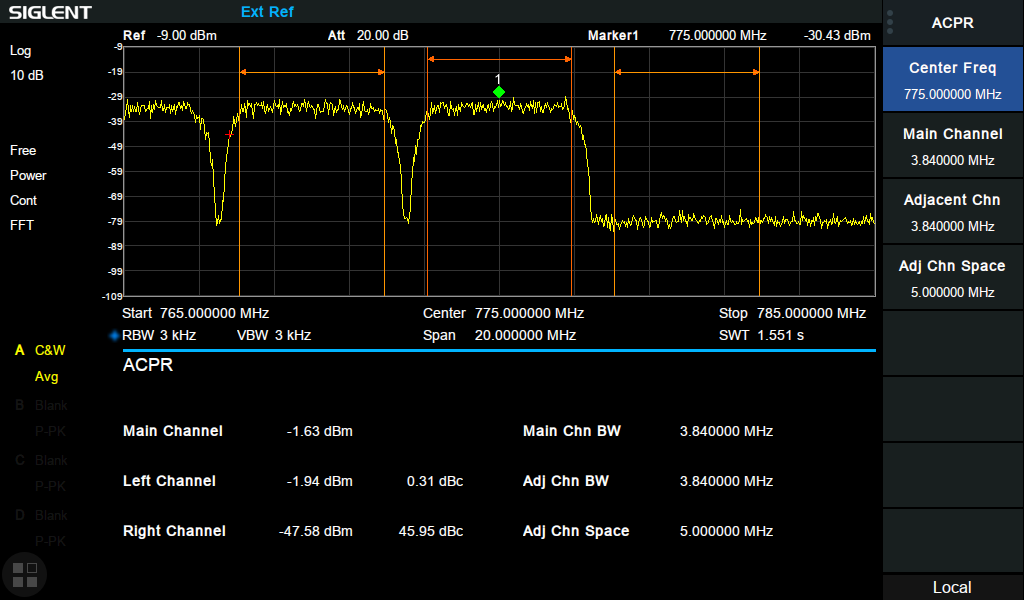

ACPR in Advanced Measurement Kit View more

ACPR in Advanced Measurement Kit

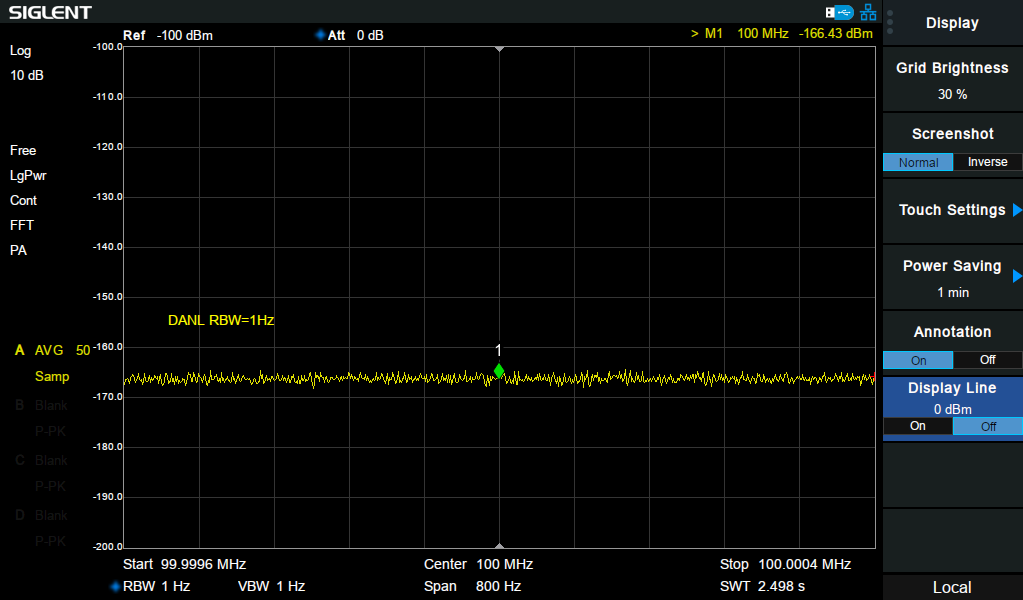

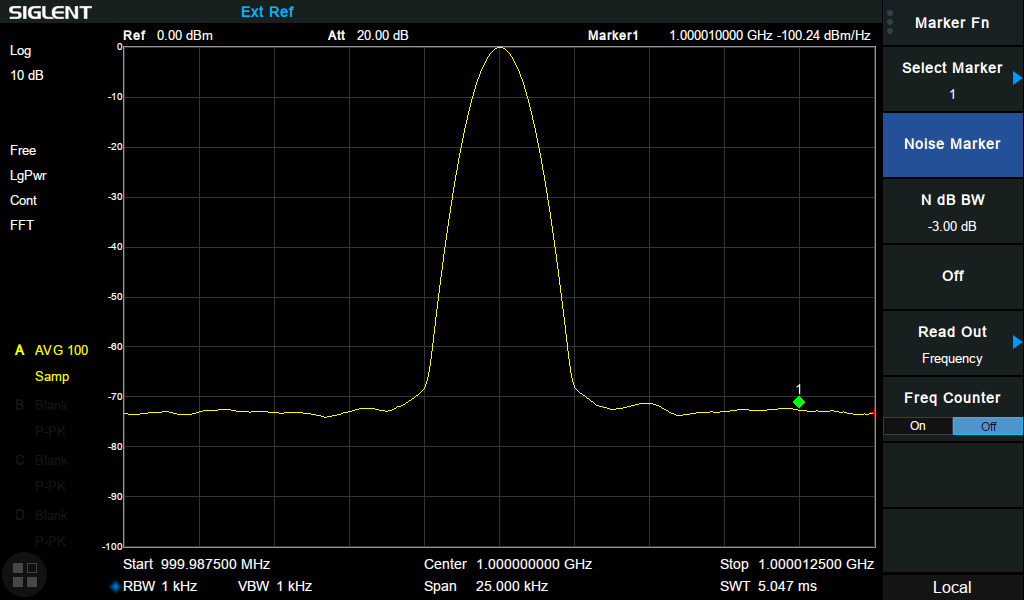

-165 dBm/Hz Displayed Average Noise Level View more

-165 dBm/Hz Displayed Average Noise Level

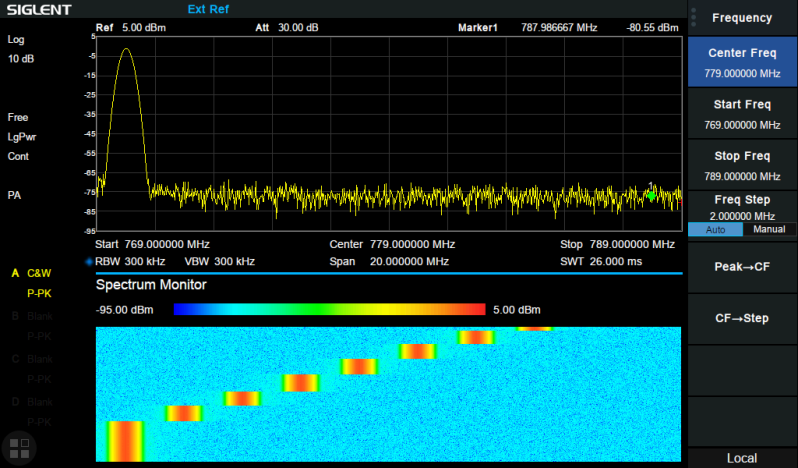

Monitor in Advanced Measurement Kit View more

Monitor in Advanced Measurement Kit

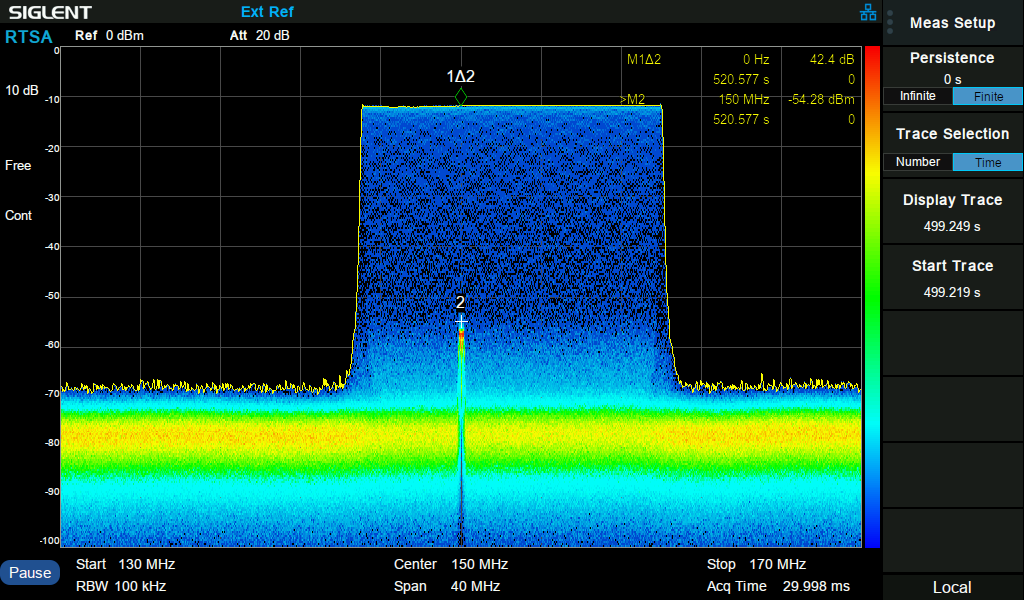

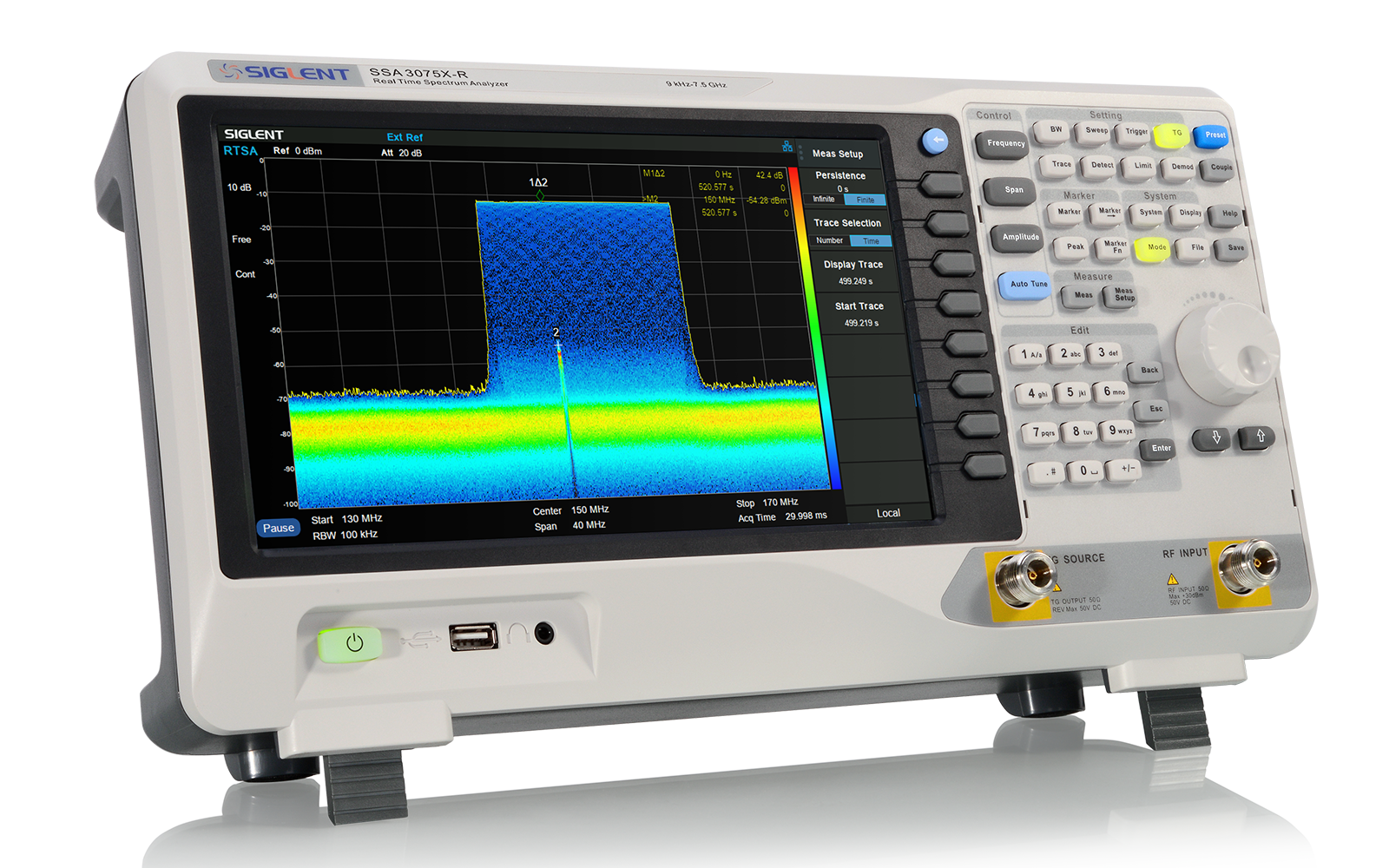

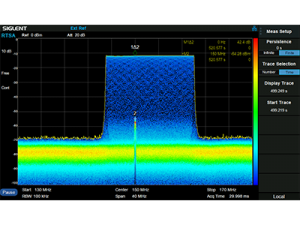

Real Time Analysis Mode View more

Real Time Analysis Mode

Density,3D,Spectrogram,PvT,Multi-view and dimensions to monitor complex signals

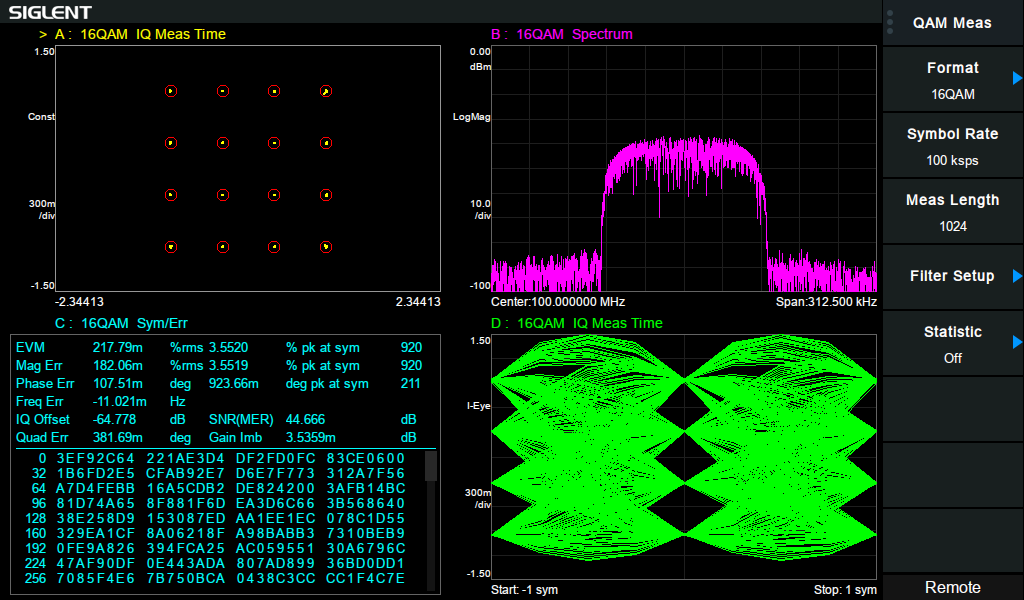

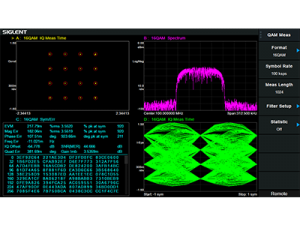

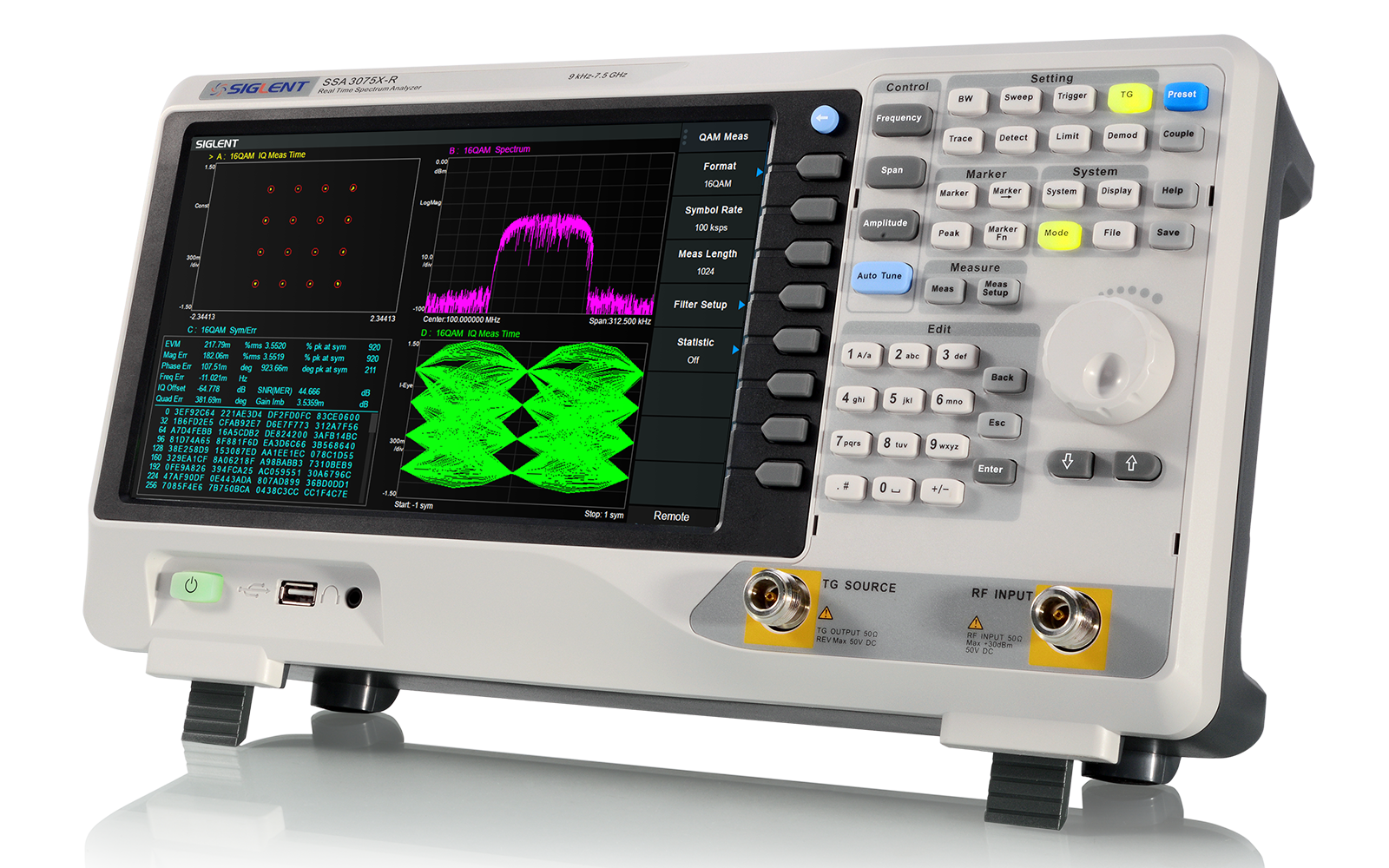

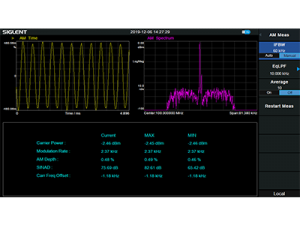

Modulation Analysis Mode View more

Modulation Analysis Mode

AM/FM, ASK/FSK/PSK/MSK/QAM Vector Signal Modulation Analysis and EVM evaluation. The analysis BW is same with real-time BW in RTSA mode

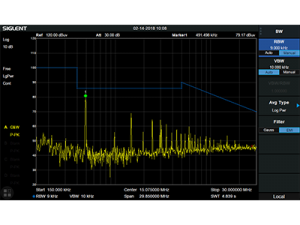

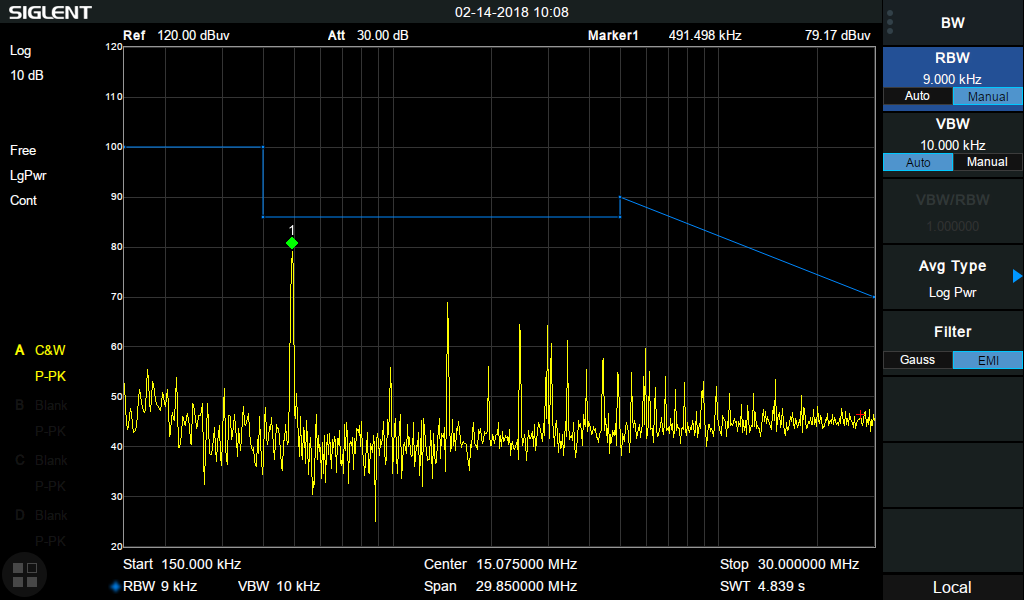

EMI Pre-Compliance Test View more

EMI Pre-Compliance Test

CISPR 16-1-1 EMI filter and Quasi-peak Detector , Log scale and Limit line

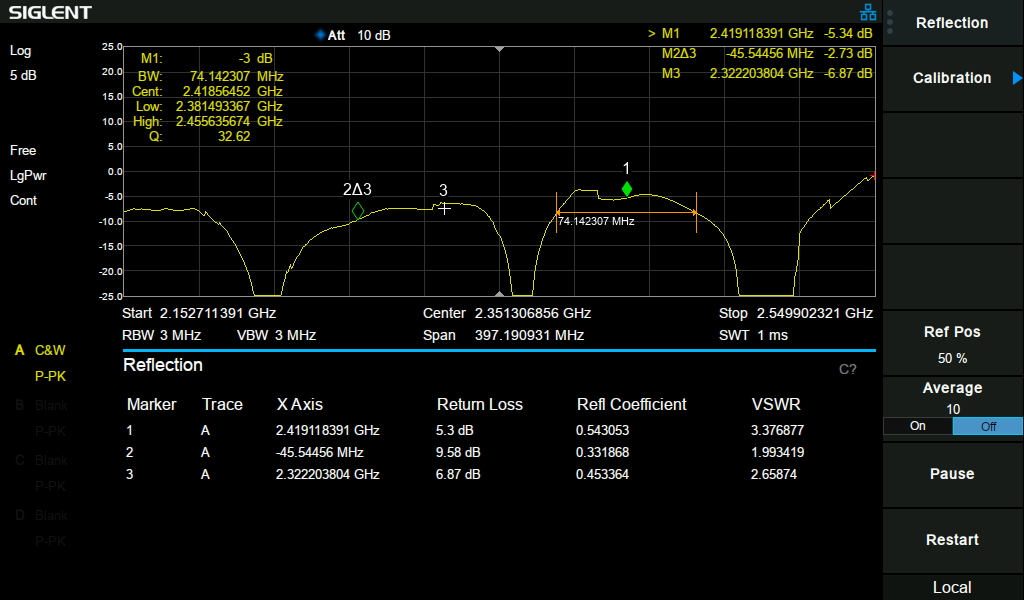

Reflection Measurement View more

Reflection Measurement

VSWR and Return Loss measurement with Q value measurement

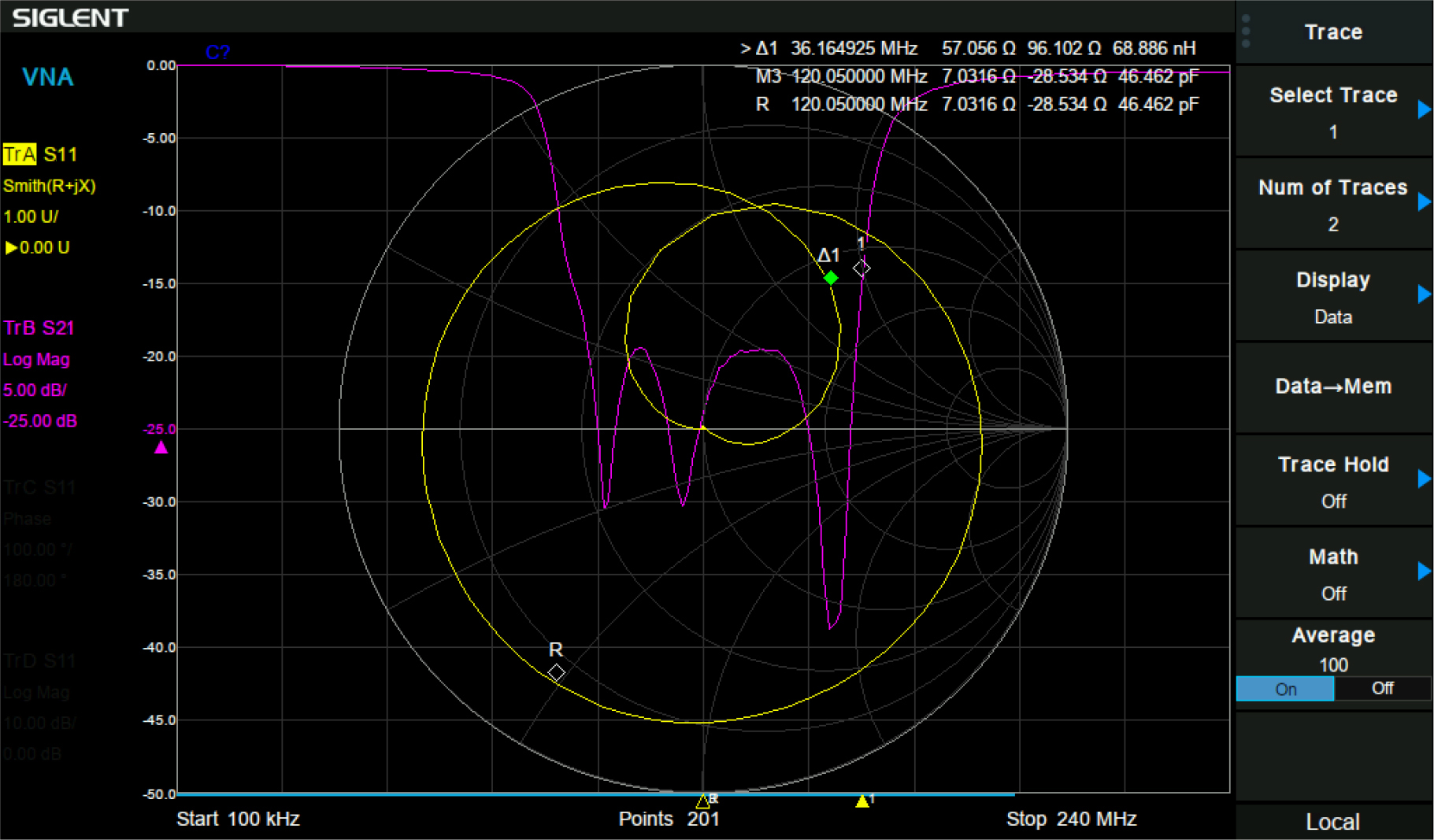

Vector Network Analyzer Mode View more

Vector Network Analyzer Mode

100 KHz – 7.5 GHz Vector S11 and S21 measurement, Multi Formats Overlay Display

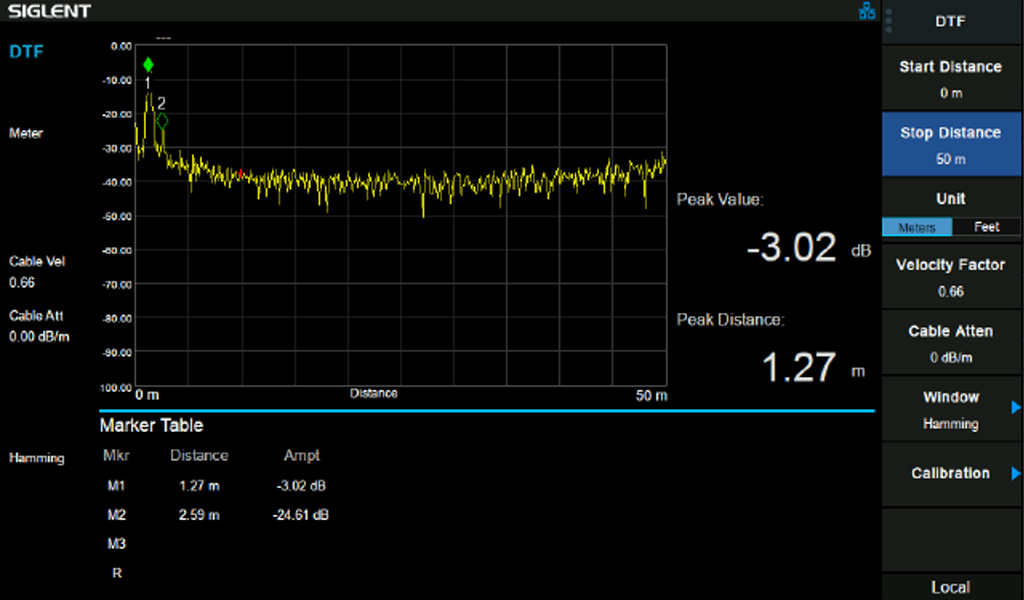

Distance to Fault Mode View more

Distance to Fault Mode

Cable and Antenna Test based on Timing Domain Analysis

Standard Accessories

USB Cable

Standard USB cable.

Power Cord

Proper cord for country of operation

Quick Start Guide-SSA3000X-R

Quick Start Guide-SSA3000X-R

Optional Accessories

UKitSSA3X

Spectrum Analyzer Hardware Utility Kit

N-N-18L

N(M)-N(M) cable, 100 cm, 18 GHz

N-SMA-18L

N(M)-SMA(M) cable, 100cm, 18 GHz

N-N-6L

Male N to Male N cable

N-SMA-6L

Male N to Male SMA cable

N-BNC-2L

Male N-to-BNC cable

USB-GPIB adapter

Converts GPIB signals to USB

BAG-S2

Soft Carry Bag

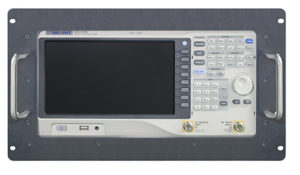

SSA-RMK

Rack Mount Kit

SRF5030T

Non-contact near-field probes

F503ME

Mechanical Calibration Kit: N-type, Open (M), Short (M), Match (M,50), Through (M-M), 50 Ω, DC-4.5 GHz

F503FE

Mechanical Calibration Kit: N-type, Open (F), Short (F), Match (F,50), Through (F-F), 50 Ω, DC-4.5 GHz

F603ME

Mechanical Calibration Kit: 3.5 mm, Open (M), Short (M), Match (M,50), Through (M-M), 50 Ω, DC-4.5 GHz

F603FE

Mechanical Calibration Kit 3.5 mm, Open (F), Short (F), Match (F,50), Through (F-F), DC-4.5 GHz

F504MS

Mechanical Calibration Kit: N-type, Open (M), Short (M), Match (M,50), Through (M-M), 50 Ω, DC-9 GHz

F504FS

Mechanical Calibration Kit: N-type, Open (F), Short (F), Match (F,50), Through (F-F), 50 Ω, DC-9 GHz

F604MS

Mechanical Calibration Kit: 3.5 mm, Open (M), Short (M), Match (M,50), Through (M-M), 50 Ω, DC-9 GHz

F604FS

Mechanical Calibration Kit: 3.5 mm, Open (F), Short (F), Match (F,50), Through (F-F), 50 Ω, DC-9 GHz

SSA3000XR-AMK

Advanced Measurement Kit (SSA3000X-R Series)

SSA3000XR-RT40

40 MHz Real-Time BandWidth

SSA3000XR-EMI

EMI activation license (SSA3000X-R series)

SSA3000XR-AMA

Analog modulation analysis (AM/FM) activation license (SSA3000X-R)

SSA3000XR-WDMA

Digital modulation analysis activation license (SSA3000X-R)
