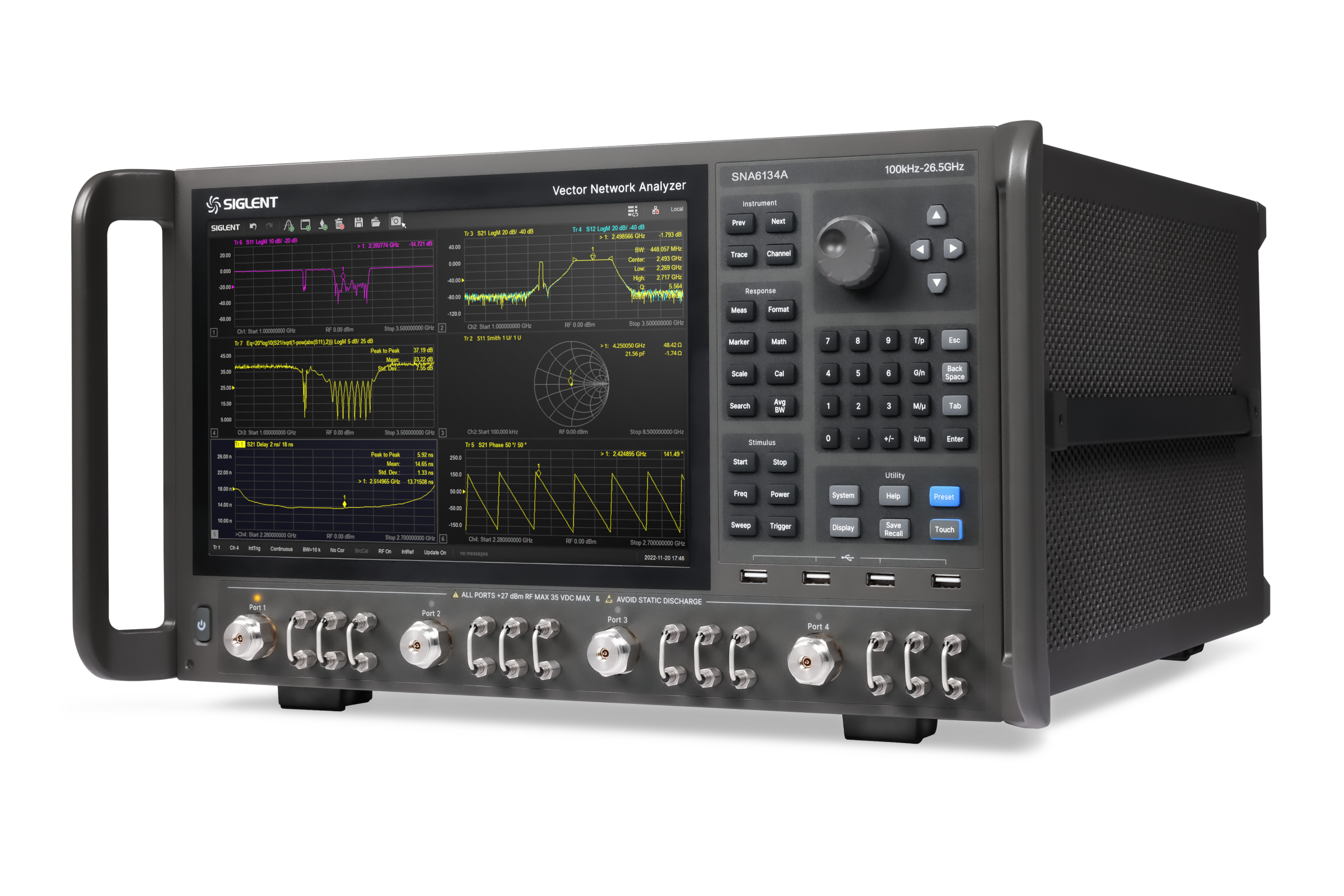

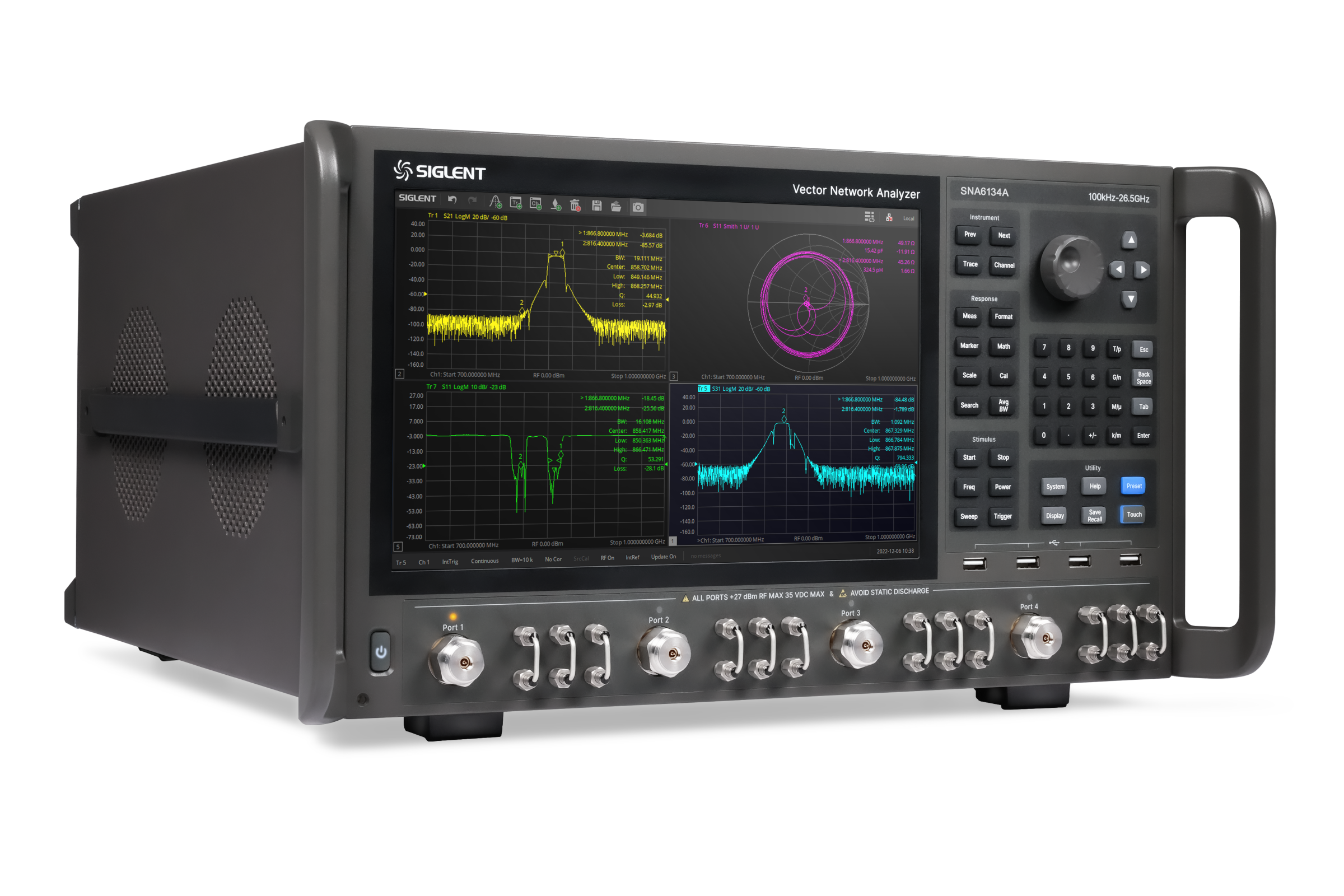

SNA6000A Vector Network Analyzer
- Frequency Range: 100 kHz to 13.5 GHz and 100 kHz to 26.5 GHz
- Range of IFBW: 1 Hz to 10 MHz
- Dynamic Range: 135 dB
- Setting Range of Output Level: -55 dBm to +10 dBm
- Standard Bias-Tee connection and pulse hardware
- 4-port models include standard second source
-
Jumpers / DRA (Source, Ref and Meas) standard on SNA61xxA models
Product Overview
| Frequency Range | Ports | Dynamic Range | Trace Noise | Range of Output | Price | ||
|---|---|---|---|---|---|---|---|
| SNA6034A | 100 kHz to 26.5 GHz | 4 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm | € 55,895 | Buy Now |
| SNA6032A | 100 kHz to 26.5 GHz | 2 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm | € 43,385 | Buy Now |
| SNA6024A | 100 kHz to 13.5 GHz | 4 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm | € 45,985 | Buy Now |
| SNA6022A | 100 kHz to 13.5 GHz | 2 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm | € 34,135 | Buy Now |
| SNA6134A | 100 kHz to 26.5 GHz | 4 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm | € 65,495 | Buy Now |
| SNA6132A | 100 kHz to 26.5 GHz | 2 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm | € 48,185 | Buy Now |
| SNA6124A | 100 kHz to 13.5 GHz | 4 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm | € 55,585 | Buy Now |
| SNA6122A | 100 kHz to 13.5 GHz | 2 | 135 dB | 0.005 dB rms, 0.012° rms | -55 dBm ~ +10 dBm | € 38,935 | Buy Now |
Key Features
- Frequency Range: 100 kHz to 13.5 GHz and 100 kHz to 26.5 GHz
- Number of Points: 2 to 100,001
- Frequency Resolution: 1 Hz
- Level Resolution: 0.05 dB
- Range of IFBW: 1 Hz to 10 MHz
- Dynamic Range: 135 dB
- Setting Range of Output Level: -55 dBm to +10 dBm
- Noise Floor: -135 dBm/Hz, 8 GHz to 20 GHz
- Standard Bias-Tee connection and pulse hardware
- 4-port models include standard second source
- Jumpers / DRA (Source, Ref and Meas) standard on SNA61xxA models

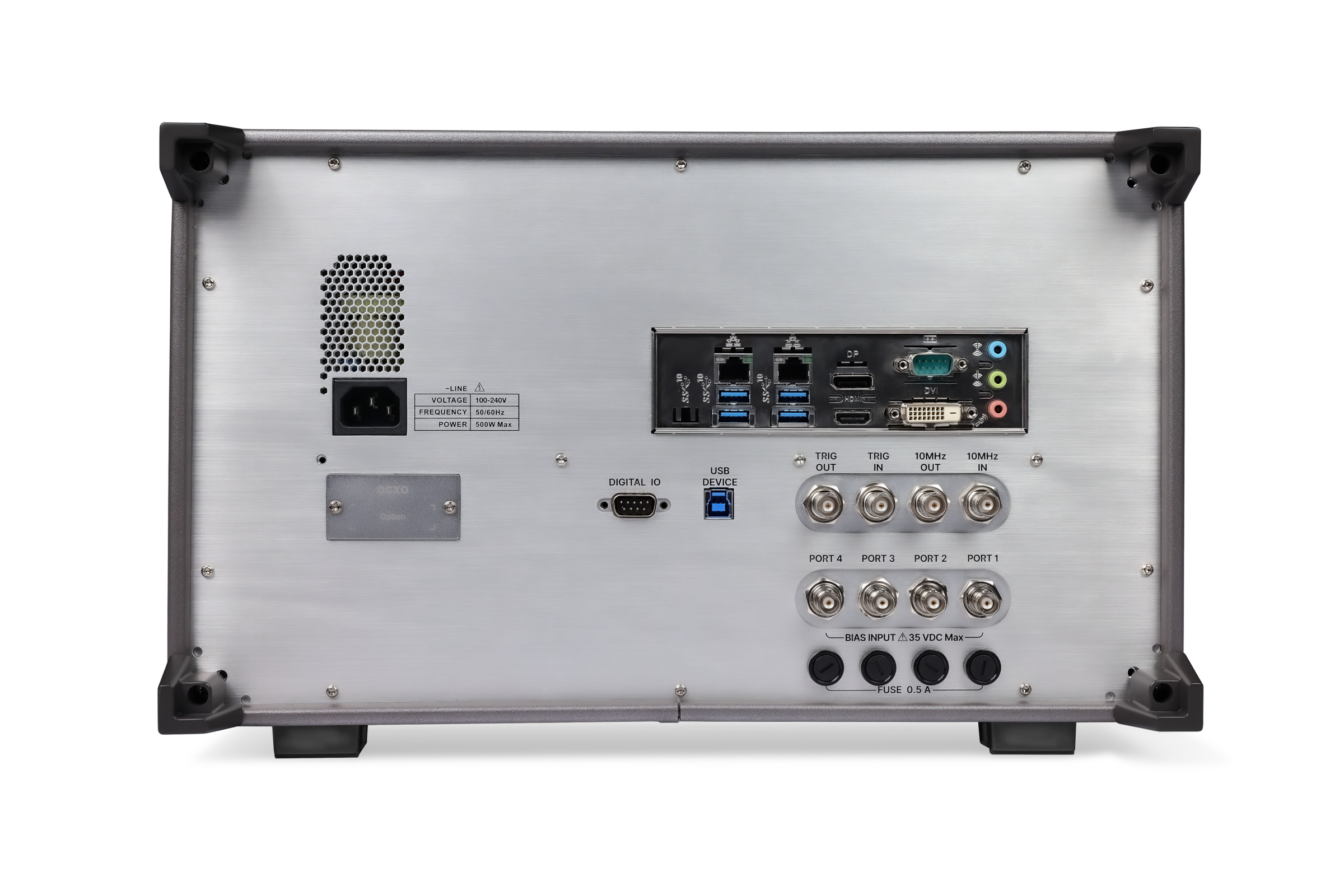

- Interface: LAN, USB Device, USB Host (USB-GPIB)
- Remote Control: SCPI / Labview / IVI based on USB-TMC / VXI-11 / Socket / Telnet / WebServer
Product Characteristics
High Dynamic Range and Precision View more

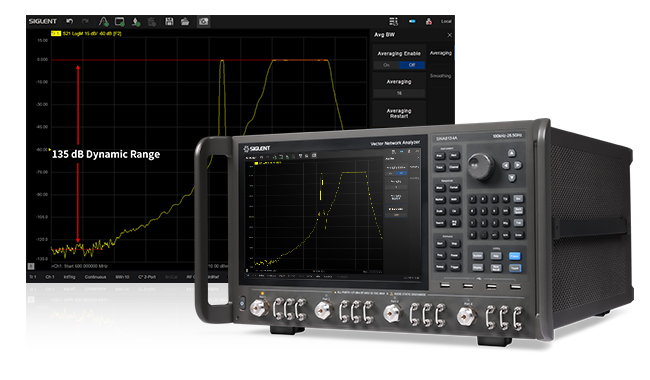

High Dynamic Range and Precision
High dynamics enable more precise and reliable measurements, which is of great importance in research, development and production. The SNA6000A impresses with a dynamic range of over 135 dB, which makes it ideal for the detailed analysis of weak signals, even when they occur alongside stronger signals. This makes the analyzer ideal for measuring filters with low insertion loss and high stopband attenuation. In addition, high dynamics help to minimize signal distortion, which improves signal integrity. It also increases calibration accuracy, especially in scenarios where external influences such as cables or adapters must be minimized.
Spectrum Analyzer for Component Characterization View more

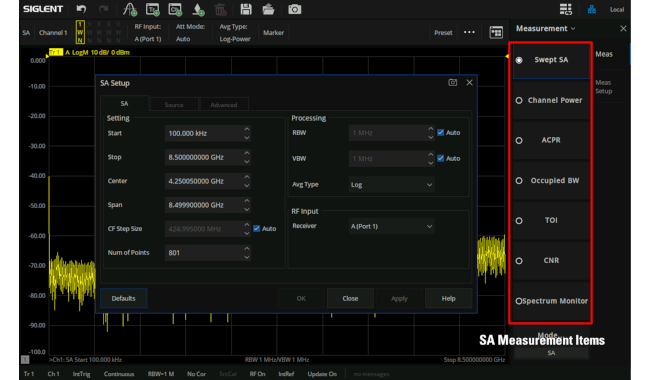

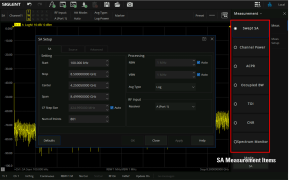

Spectrum Analyzer for Component Characterization
The integration of a spectrum analysis function into a vector network analyzer (VNA) opens up expanded possibilities, especially in the development and testing of high-frequency amplifiers, oscillators and communication systems. This extension is also available as an option namely SNA6000-SA. It allows precise analysis of harmonics, intermodulation products and other nonlinear effects, while simultaneously optimizing signal quality and bandwidth utilization in communication applications. The combination of VNA and spectrum analysis in one device not only offers space and cost-saving advantages, but also enables deeper and more comprehensive signal characterization.

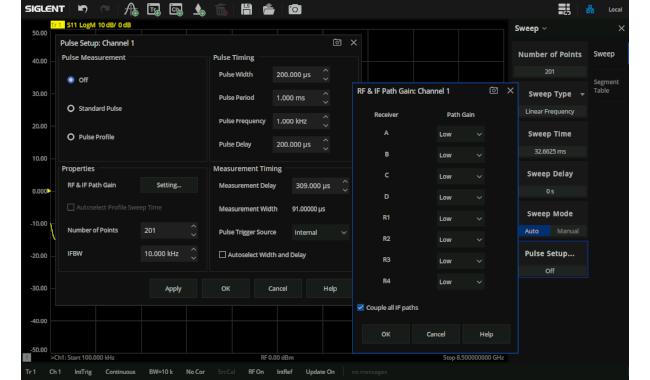

Simple, Fast and Accurate Pulsed-RF Measurement View more

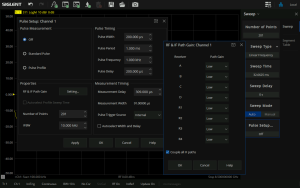

Simple, Fast and Accurate Pulsed-RF Measurement
The SNA6000A can also be extended to include the ability to perform pulsed measurements, which is particularly advantageous when characterizing high-frequency components under real operating conditions, such as in radar and communication systems. This measurement method makes it possible to analyze the behavior of components with short pulses, precisely evaluate fast switching operations and optimize performance in time-critical applications.

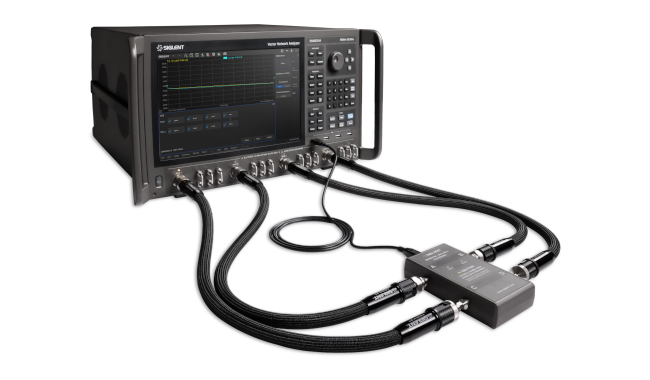

Advanced Calibration View more
Advanced Calibration
Calibrating network analyzers is critical for high accuracy measurements. The SNA family supports a broad range of mechanical and electronic calibration kits with the frequency up to 26.5 GHz for both general purpose and precision-level requirements and offers advanced calibration methods to enhance ease-of-use while providing best-in-class accuracy. SIGLENT protects your investment by supporting the import of calibration kits from other manufacturers and customer-defined calibration kits.

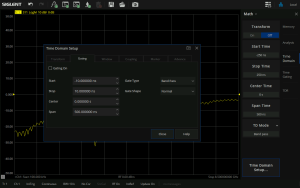

Time Domain Analysis View more

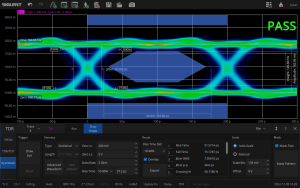

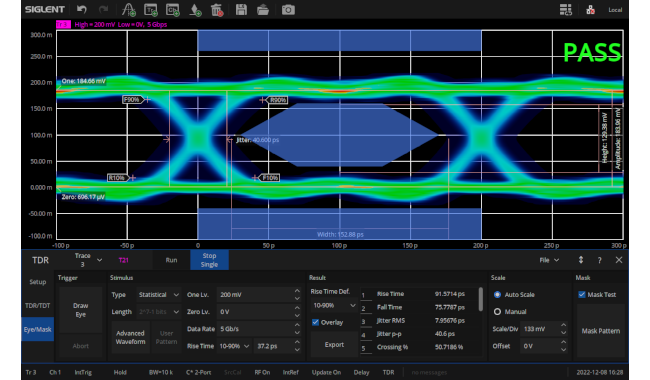

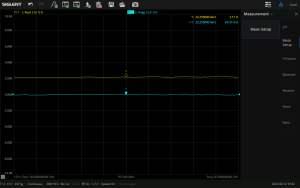

Time Domain Analysis
To be able to perform time domain analysis the options SNA6000-TDA and SNA6000-TDR are available. The Time Domain Reflectometry functions extend the VNA to include the ability to comprehensively diagnose and characterize signal paths, lines and cables. In addition, eye diagrams can be created, which are crucial for evaluating signal integrity in digital communications. The combination of TDR and VNA also enables the analysis of jitter, which is essential for investigating the temporal stability of signals. Both functions are of particular interest in high-speed digital development.

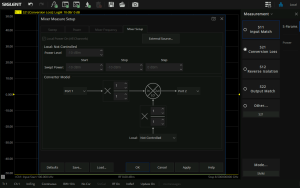

Extend the Power to Multiport Devices View more

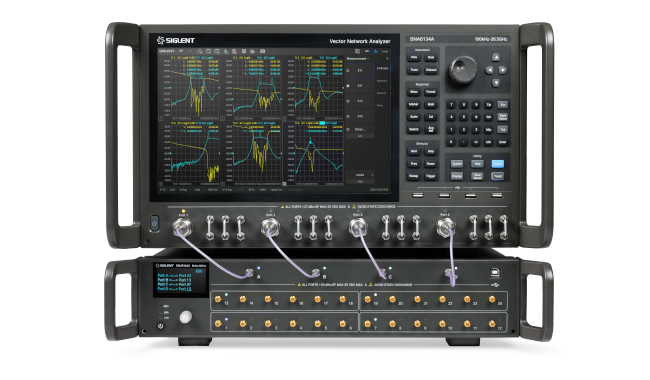

Extend the Power to Multiport Devices
SSM single unit can expand the output ports to 24 and can be easily integrated, greatly adapt to the automatic test system and production line scenarios. The multi-port measurement capability of VNA can improve test throughput and thereby significantly reduce device test costs. Typical applications include design, verification and production of antenna, data converter interfaces, automatic test of RF components and other devices, etc.
Standard Accessories
Optional Accessories
SEM5000A
Electronic Calibration Kit: frequency range up to 4.5/9/13.5/26.5GHz, the RF connectors come in three forms: SMA female, 3.5mm female, and Type-N female. Click to download datasheet.
Learn more
F503FE
Mechanical Calibration Kit: N-type, Open (F), Short (F), Match (F,50), Through (F-F), 50 Ω, DC-4.5 GHz
Learn more
F503ME
Mechanical Calibration Kit: N-type, Open (M), Short (M), Match (M,50), Through (M-M), 50 Ω, DC-4.5 GHz
Learn more
F504FS
Mechanical Calibration Kit: N-type, Open (F), Short (F), Match (F,50), Through (F-F), 50 Ω, DC-9 GHz
Learn more
F504MS
Mechanical Calibration Kit: N-type, Open (M), Short (M), Match (M,50), Through (M-M), 50 Ω, DC-9 GHz
Learn more
F504TS
Mechanical Calibration Kit: N-type, Male and Female, 50 Ω Calibration Kit, 0-9 GHz, Torque Wrench
Learn more
F603FE
Mechanical Calibration Kit 3.5 mm, Open (F), Short (F), Match (F,50), Through (F-F), DC-4.5 GHz
Learn more
F603ME
Mechanical Calibration Kit: 3.5 mm, Open (M), Short (M), Match (M,50), Through (M-M), 50 Ω, DC-4.5 GHz
Learn more
F604FS
Mechanical Calibration Kit: 3.5 mm, Open (F), Short (F), Match (F,50), Through (F-F), 50 Ω, DC-9 GHz
Learn more
