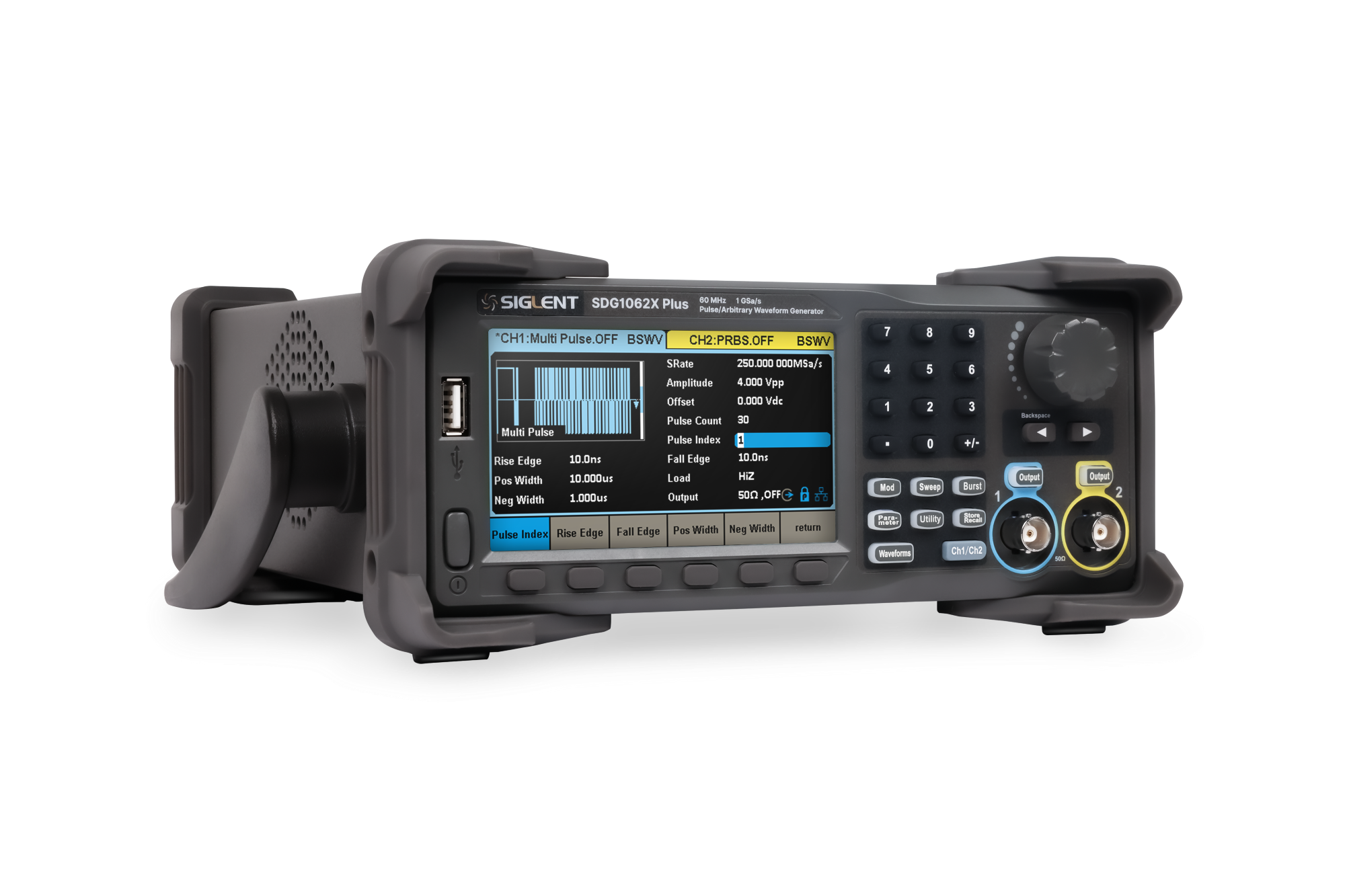

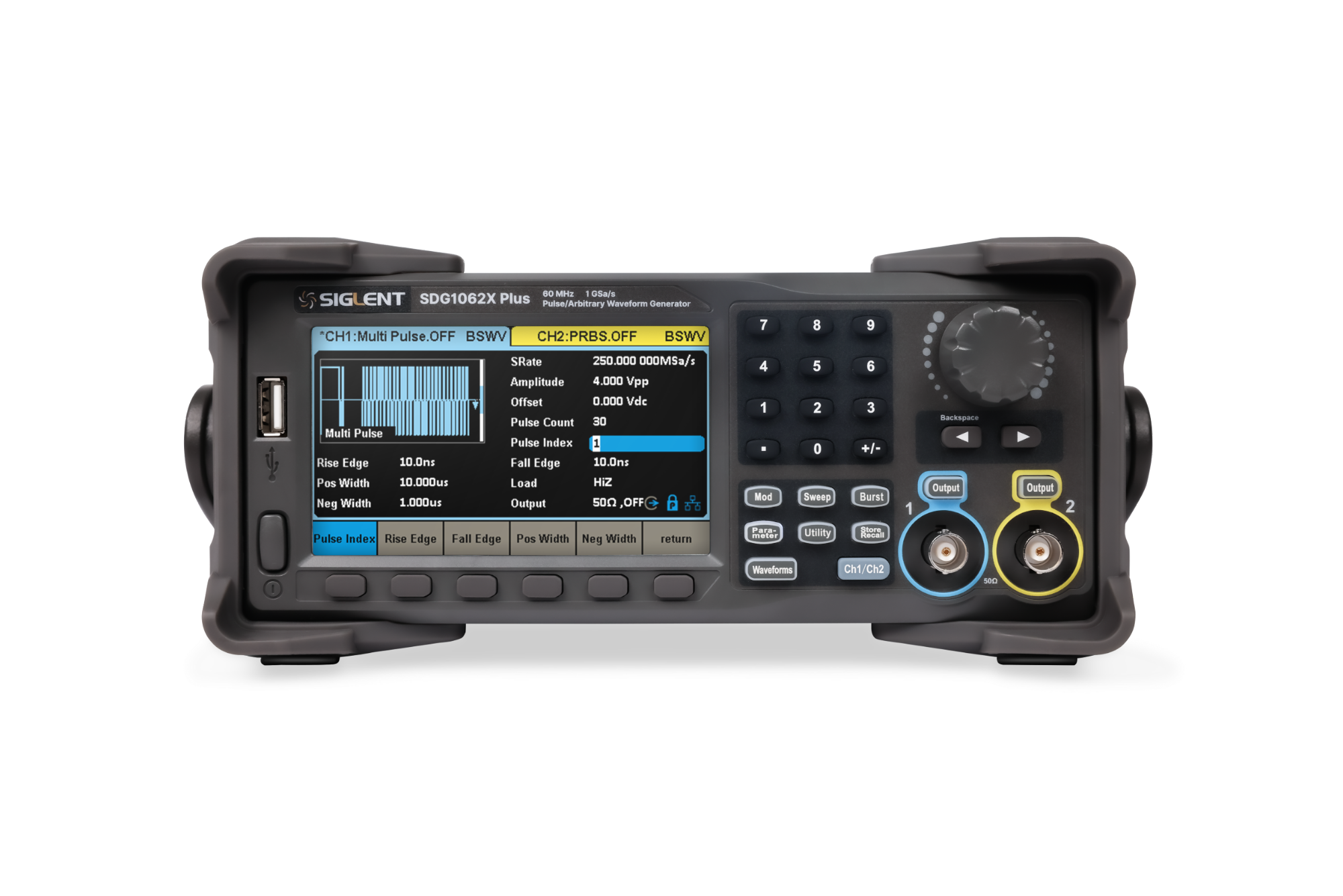

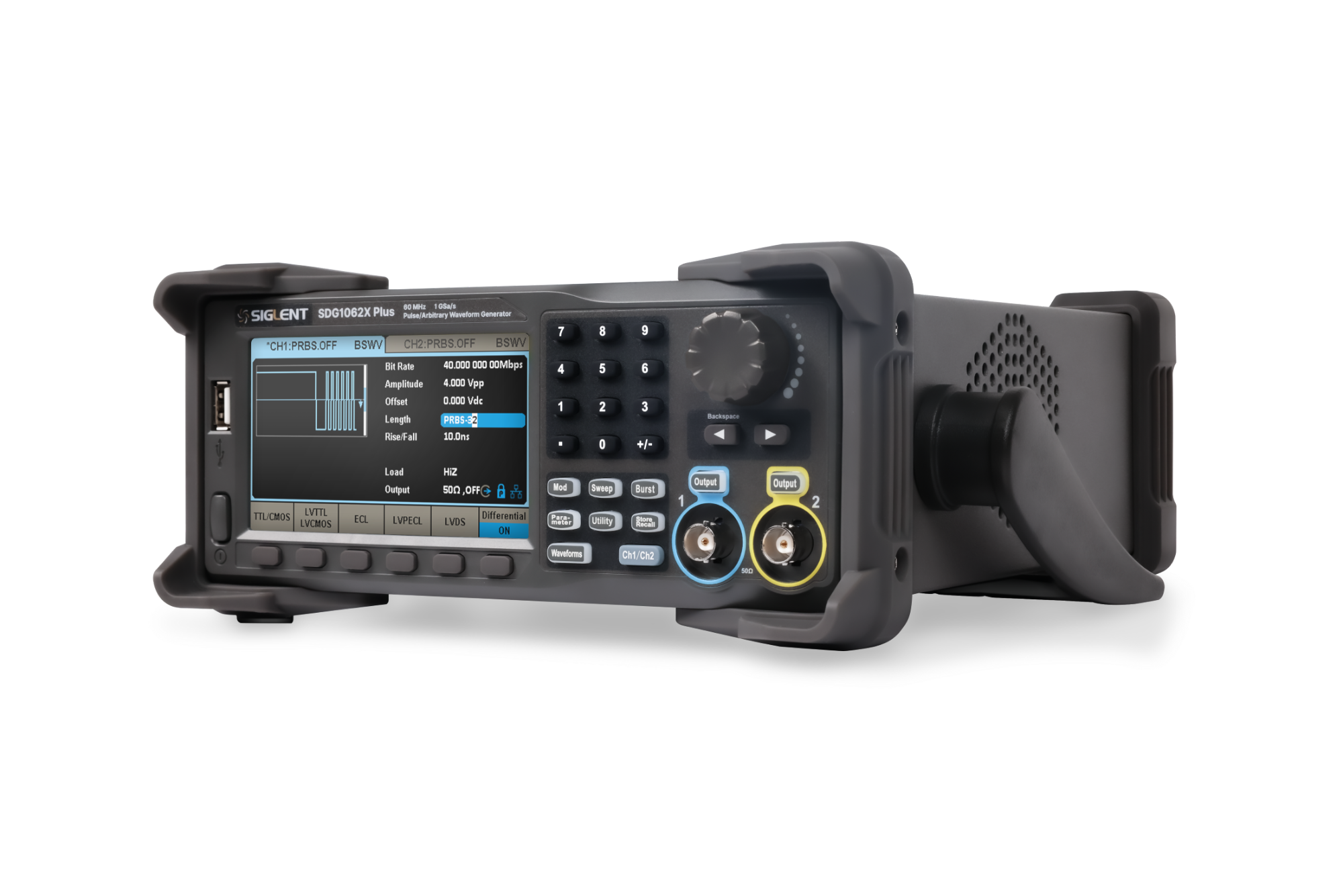

SDG1000X Plus Series Function/Arbitrary Waveform Generators

  • Dual channel, maximum output amplitude 20 Vpp
  • 1 GSa/s Sampling rate, 16-bit vertical resolution
  • Arbitrary wave length 8 Mpts/CH
  • Multi-pulse output function
  • Supports PRBS up to 40 Mbps

Product Overview

SIGLENT’s SDG1000X Plus series dual-channel function/arbitrary waveform generator, with a maximum bandwidth of 60MHz, has excellent sampling system indicators of 1GSa/s sampling rate and 16-bit vertical resolution. Based on the traditional DDS technology, the innovative TrueArb and EasyPulse technologies are used to overcome the inherent defects of DDS technology in outputting arbitrary waves and square waves/pulses. It can provide users with high-fidelity, low jitter signals. In addition, SDG1000X Plus also provides PRBS pattern generation, sequence wave output, and dual pulse output functions to meet a wider range of application needs.



Max Output Frequency Max Sampling Rate Vertical Resolution Waveform Length Channels Price
SDG1062X Plus 60 MHz 1 GSa/s 16-bit 8 Mpts 2 CH € 459 Buy Now
SDG1032X Plus 30 MHz 1 GSa/s 16-bit 8 Mpts 2 CH € 369 Buy Now

Key Features

  • Plenty of analog and digital modulation types: AM, DSB-AM, FM, PM, FSK, ASK, PSK and PWM
  • Sweep and Burst function
  • Harmonic function
  • Waveform Combining function
  • High precision Frequency Counter
  • 196 built-in arbitrary waveforms
  • Built-in WebServer supports instrument control via web browser
  • Standard interfaces: USB Host, USB Device(USBTMC), LAN (VXI-11)
  • 4.3” LCD display

Need more information? Call us now +49 821 666 0 111 0

Product Characteristics

High-performance Sampling System View more

High-performance Sampling System

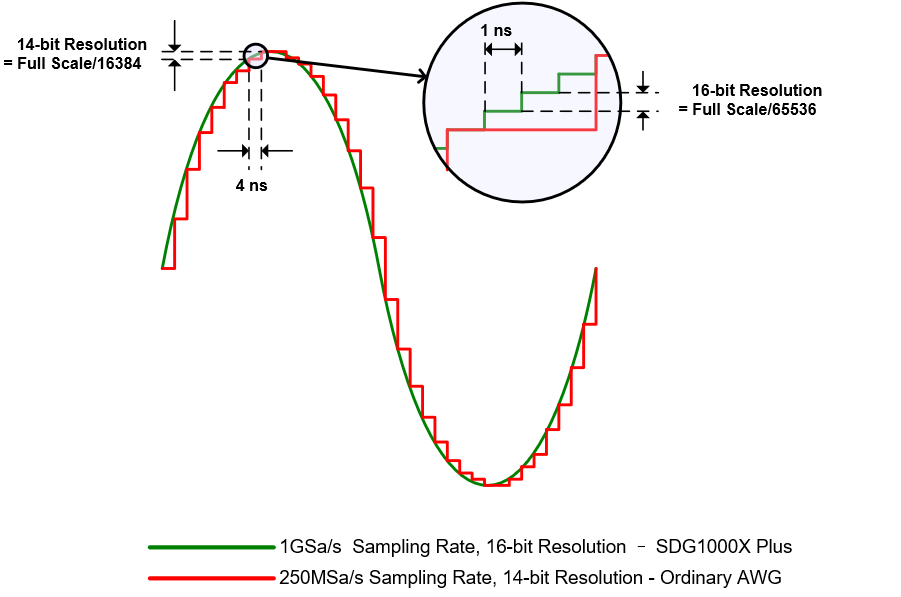

Benefiting from a 1GSa/s and 16-bit sampling system, SDG1000X Plus achieves extremely high accuracy performance in both time domain and amplitude, which results in more accurately reconstructed waveforms and lower distortion.

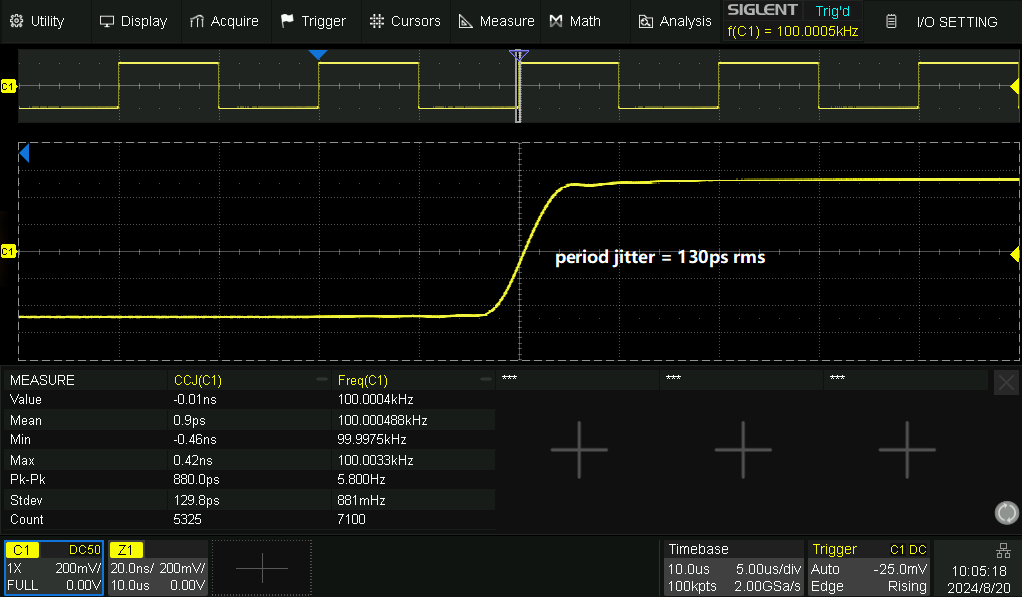

Innovative EasyPulse Technology View more

Innovative EasyPulse Technology

When a Square/Pulse waveform is generated by DDS, there will be a one-clock-jitter if the sampling rate is not an integer-related multiple of the output frequency. SDG1000X Plus EasyPulse technology successfully overcomes this weakness in DDS designs and helps to produce low jitter Square/Pulse waveforms

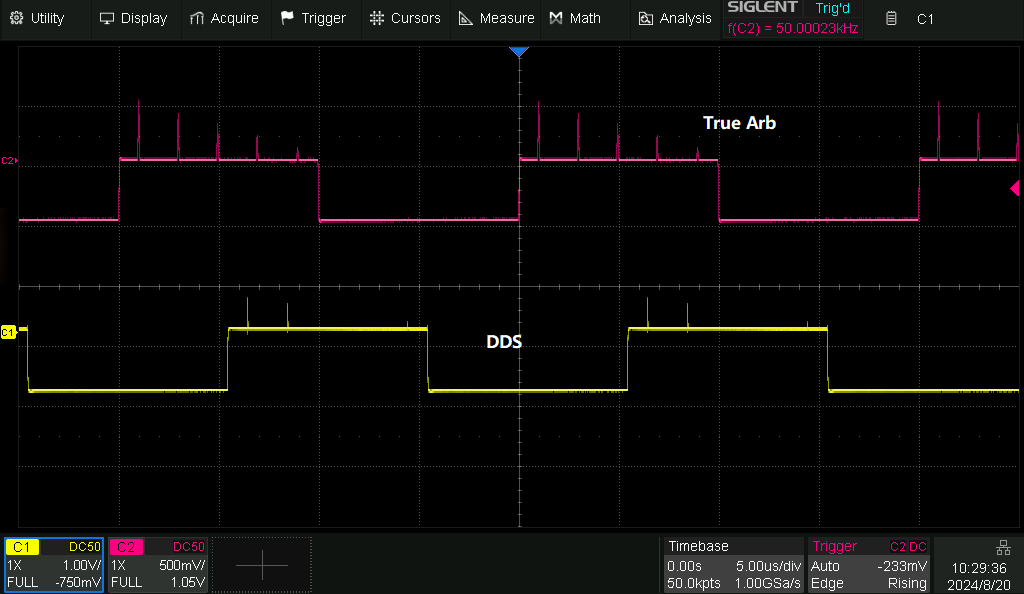

Innovative TrueArb Technology View more

Innovative TrueArb Technology

For arbitrary waveforms, TrueArb not only has all the advantages of traditional DDS, but also eliminates the probability that DDS may cause serious jitter and distortion.

TrueArb generates arbitrary waveforms point by point, never skips any point so that it can reconstruct all the details of the waveform as defined.

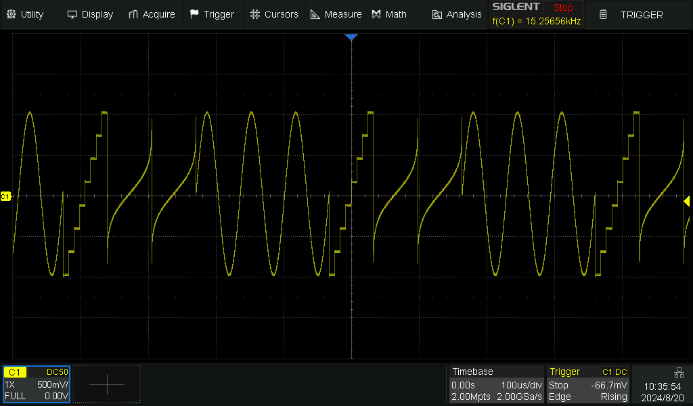

Powerful arbitrary wave generation capability View more

Powerful arbitrary wave generation capability

Provides sequence playback function to easily meet various testing needs. Maximum waveform storage depth reaches 8 Mpts/ch.

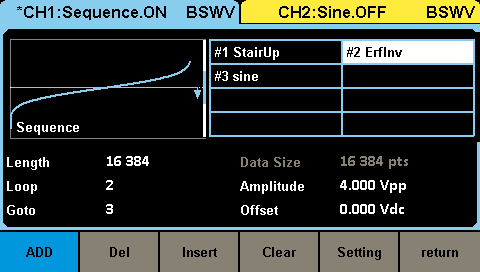

Sequence playback function View more

Sequence playback function

Easily set the number of cycle times for each waveform and the order of waveform playback.

Three operating modes: continuous, burst and single.

Three trigger sources are available: “internal”, “external” and “manual”

Built-in multi-pulse output function View more

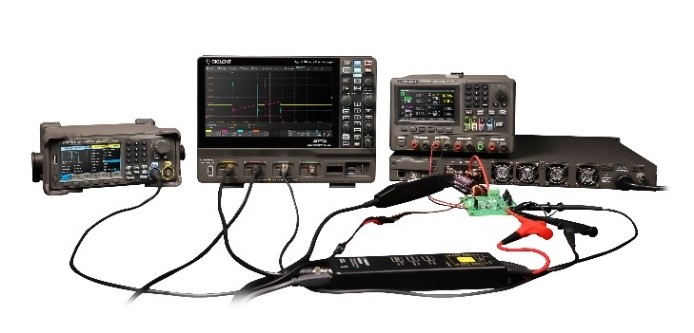

Built-in multi-pulse output function

Built-in dual pulse output function, combined with siglent’s oscilloscope, can quickly measure the switching parameters and dynamic characteristics of power devices without the need for host computer software.

PRBS pattern output View more

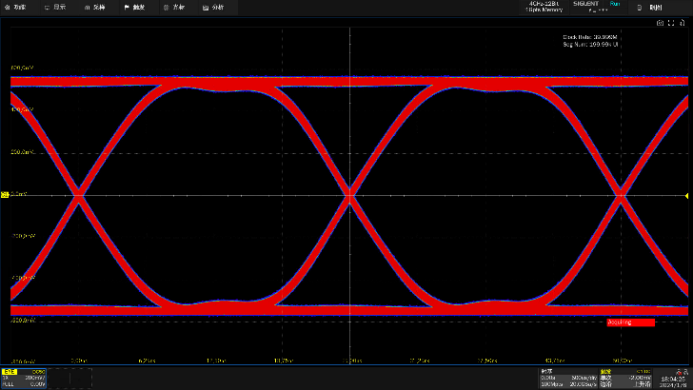

PRBS pattern output

Provides PRBS3 ~ PRBS32 multiple pattern outputs, the rate is arbitrarily adjustable between 10-6 bps ~ 40 Mbps, and the edge is arbitrarily adjustable between 10 ns ~ 1us.

Modulation View more

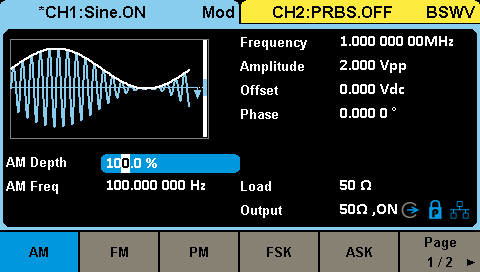

Modulation

Rich modulation functions, supporting commonly used AM/DSB-AM/ FM/ PM/ ASK/ FSK/ PSK/ PWM modulation methods.

Optional internal and external modulation sources.

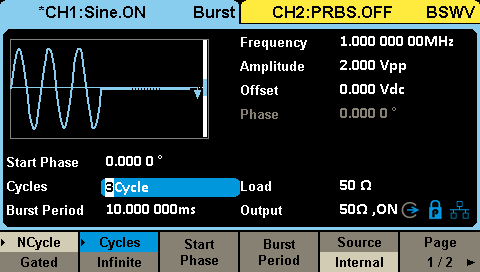

Burst View more

Burst

Supports two Burst modes: N cycle and Gating.

Three trigger sources are available: internal, external and manual.

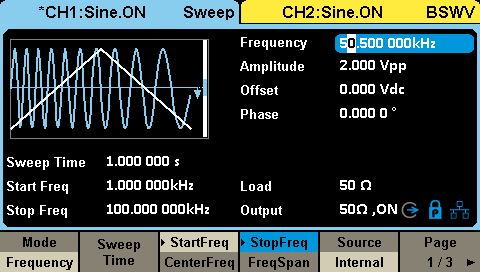

Sweep View more

Sweep

Supports two sweep modes, frequency and amplitude, to easily implement frequency sweep and amplitude sweep tests.

Frequency Counterm View more

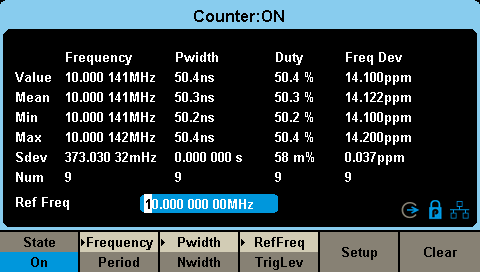

Frequency Counterm

High-precision frequency counter, capable of testing the frequency range of 0.1Hz~200MHz.

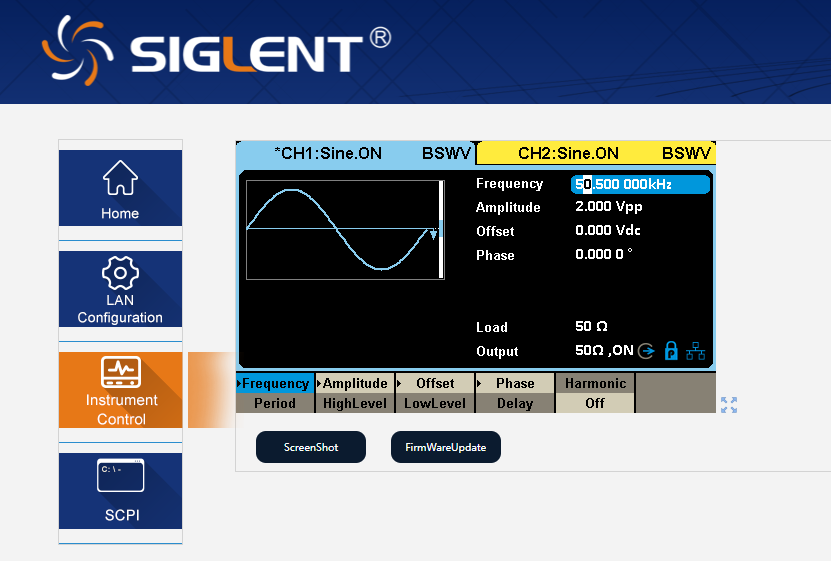

Built-in WebServer View more

Built-in WebServer

Supports instrument control through a web browser, allowing testing tasks to be completed remotely.
