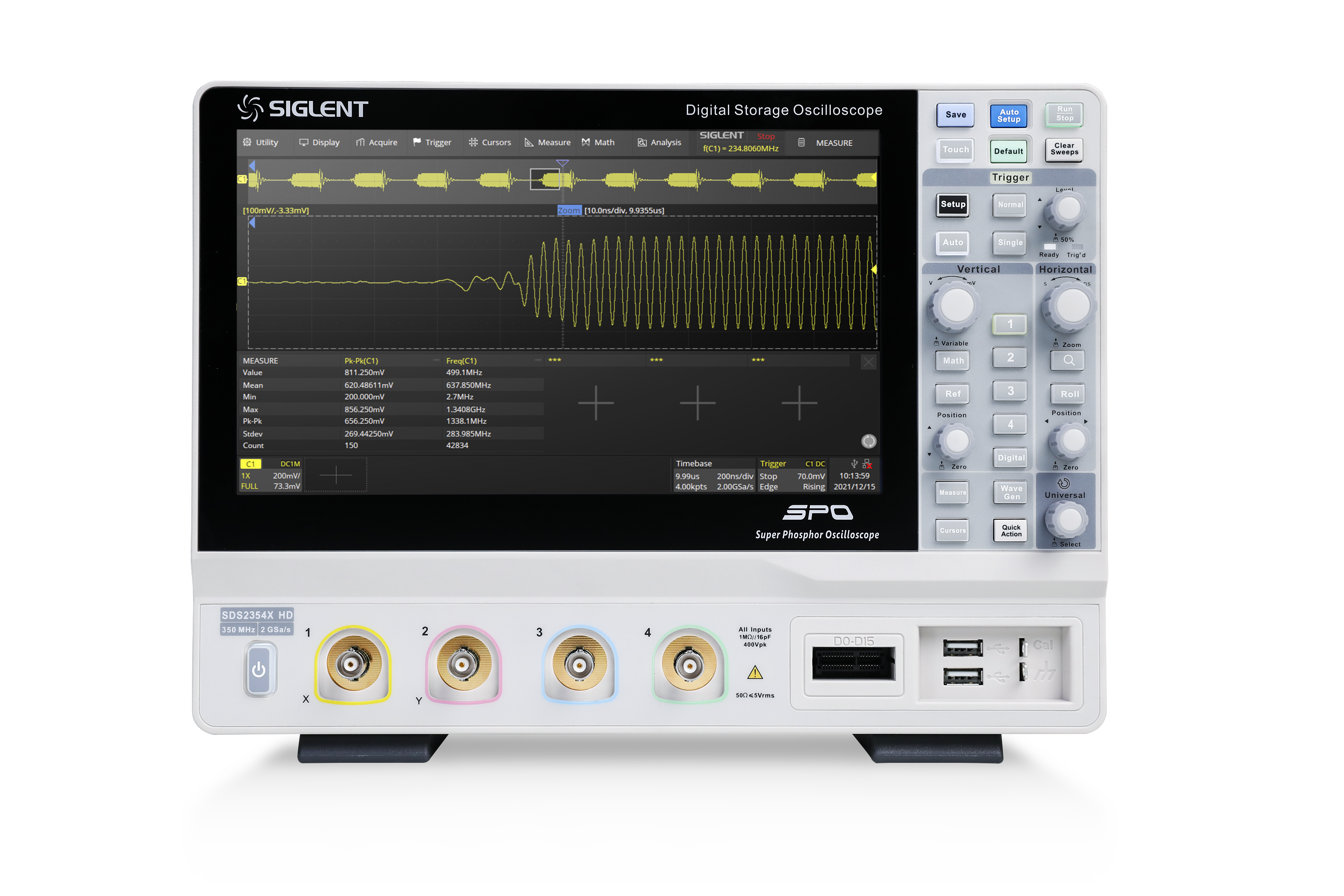

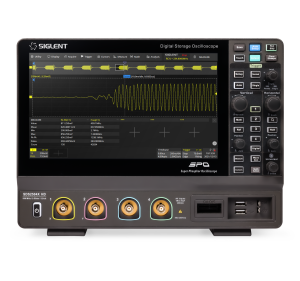

SDS2000X HD Digital Storage Oscilloscope
- 100 MHz, 200 MHz, 350 MHz models
- 12-bit High Resolution
- Record Length up to 200 Mpts
- Waveform capture rate up to 500,000 wfm/s (Sequence mode)
- Sampling rate up to 2 GSa/s (interleaving mode）
- Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT and Manchester
Product Overview
SIGLENT’s SDS2000X HD series high resolution digital storage oscilloscopes are based on 2 GSa/s, 12-bit AnalogDigital Convertors and front ends with excellent noise floor performance. They are available in bandwidths of 350 MHz, 200 MHz and 100 MHz, have maximum record length of 200 Mpts/ch, and display 4 analog channels + 16 digital channels mixed signal analysis ability.
The SDS2000X HD series employs Siglent’s SPO technology with a maximum waveform capture rate of up to 100,000 wfm/s (normal mode, up to 500,000 wfm/s in Sequence mode), 256-level intensity grading display function plus a color temperature display mode. It also employs an innovative digital trigger system with high sensitivity and low jitter. The trigger system supports multiple powerful triggering modes including serial bus triggering. Tools such as History waveform recording, Search and Navigate functions, Mask Test, Bode Plot, Power Analysis and Histogram allow for extended waveform records to be captured, stored, and analyzed. An impressive array of measurement and math capabilities, options for a 25 MHz arbitrary waveform generator, as well as serial decoding are also features of the SDS2000X HD.
The large 10.1’’ display capacitive touch screen supports multitouch gestures, with the addition of user-friendly UI design, can greatly improve the operation efficiency. It also supports mouse control, and remote web control over LAN.
| Max Output Frequency | Max Sampling Rate | Vertical Resolution | Waveform Length | Channels | Price | ||
|---|---|---|---|---|---|---|---|
| SDS2104X HD | 100 MHz | 2 GSa/s (interleaving mode) | 12-bit | 500,000 wfm/s (Sequence mode) | 4+EXT | €2,980 | Buy Now |
| SDS2204X HD | 200 MHz | 2 GSa/s (interleaving mode) | 12-bit | 500,000 wfm/s (Sequence mode) | 4+EXT | €3,680 | Buy Now |
| SDS2354X HD | 350 MHz | 2 GSa/s (interleaving mode) | 12-bit | 500,000 wfm/s (Sequence mode) | 4+EXT | €4,480 | Buy Now |
Key Features
- 12-bit High Resolution
- 12-bit Analog-Digital Convertors with sample rate up to 2 GSa/s
- Front ends with 70 μVrms noise floor @ 500 MHz bandwidth and 0.5% DC gain accuracy
- 4 analog channels, up to 350 MHz bandwidth (upgradable to 500 MHz)
- SPO technology
- Waveform capture rate up to 100,000 wfm/s (normal mode), and 500,000 wfm/s (sequence mode)
- Supports 256-level intensity grading and color temperature display modes
- Up to 200 Mpts/ch record length
- Digital trigger system
- Intelligent trigger: Edge, Slope, Pulse, Window, Runt, Interval, Dropout, Pattern, Qualified, Nth edge, Setup/hold, Delay and Video (HDTV supported). Zone Trigger simplifies advanced triggering
- Serial bus triggering and decoder, supports protocols I2C, SPI, UART, CAN, LIN, CAN FD, FlexRay, I2S, MIL-STD-1553B, SENT and Manchester
- Segmented acquisition (Sequence) mode, dividing the maximum record length into multiple segments (up to 80,000), according to trigger conditions set by the user, with a very small dead time between segments to capture the qualifying event
- History waveform record (History) function, the maximum recorded waveform length is 80,000 frames
- Automatic measurements on 50+ parameters, supports statistics with histogram, track, trend, Gating measurement, and measurements on Math, History and Ref
- 2 Math traces (2 Mpts FFT, addition, subtraction, multiplication, division, integration, differential, square root, etc.), supports formula editor
- Abundant data analysis functions such as Search, Navigate, Digital Voltmeter, Counter, Waveform Histogram, Bode plot and Power Analysis
- High Speed hardware-based Average, ERES; High Speed hardware-based Mask Test function, with Mask Editor tool for creating user-defined masks
- 16 digital channels (optional)
- Built-in 25 MHz waveform generator
- Large 10.1” TFT-LCD display with 1024 * 600 resolution; Capacitive touch screen supports multi-touch gestures
- Interfaces include: USB Hosts, USB Device (USBTMC), LAN (VXI-11/Telnet/Socket), Pass/Fail, Trigger Out
- Built-in web server supports remote control over the LAN port using a web browser. Supports SCPI remote control commands. Supports external mouse and keyboard
