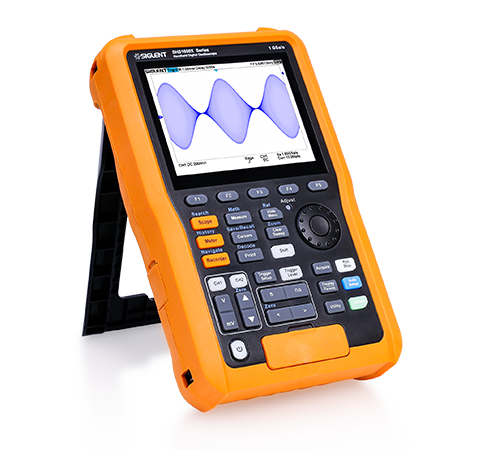

SHS1000X Series Handheld Oscilloscope
- Isolation voltage: CATIII 600 Vrms, CATII 1000 Vrms
- Integrated oscilloscope, serial trigger and decoder, spectrum analysis, data logger, and multimeter functions into a convenient and portable design
- 100 MHz or 200 MHz bandwidth models
- Sample rate of 1 GSa/s (single-channel)/500 MSa/s (two-channels)
- Record length up to 12 Mpts.
- Hardware-based true RMS multimeter
- IP51 dust/water resistance certified
Product Overview
The SHS1000X series features full isolation between the two oscilloscope channels, one multimeter channel, power adapter and the USB host/device port. including 200 MHz and100 MHz model.A single ADC with 1 GSa/s maximum sample rate, and a single memory module with 12 Mpts memory depth. When two channels are enabled, each channel has sample rate of 500 MSa/s and a standard record length of 6 Mpts. When only a single channel is actived, the maximum sample rate is 1 GSa/s and the maximum record length is 12 Mpts. For ease-of-use, the most commonly used functions can be accessed with its user-friendly front panel design.The full isolation makes it ideal for both laboratory and floating signal measurement because it reduces the risk of accidental short circuits.
| Bandwidth | Channels | Real Time Sampling Rate |
Multimeter | Isolation Level | Memory Depth | Price | ||
| SHS1102X | 100 MHz | 2 | 1 GSa/s | Voltage, current, resistance and other eight common functions | 1000 V CAT II, 600 V CAT III |
12 Mpts | €1,399 | Buy Now |
| SHS1202X | 200 MHz | 2 | 1 GSa/s | Voltage, current, resistance and other eight common functions | 1000 V CAT II, 600 V CAT III |
12 Mpts | €1,699 | Buy Now |
Key Features
Siglent SPO technology
-
- Waveform capture rates up to 100,000 wfm/s (normal mode) and 400,000 wfm/s (sequence mode)
- Supports 256-level intensity grading and color temperature display modes
- Record length up to 12 Mpts
- Digital trigger system
- Intelligent trigger: Edge, Slope, Pulse Width, Window, Runt, Interval, Time out (Dropout), Pattern
- 6000 counts Digital Multimeter, Support DCV, ACV, DCI, ACI, Resistance, Diode, Capacitance, Continuity test.
- 3 one-button shortcuts for Oscilloscope, Multimeter and Recorder functions
- 5.6-inch TFT-LCD display with 640 * 480 resolution
Product Characteristics
Full Isolation View more

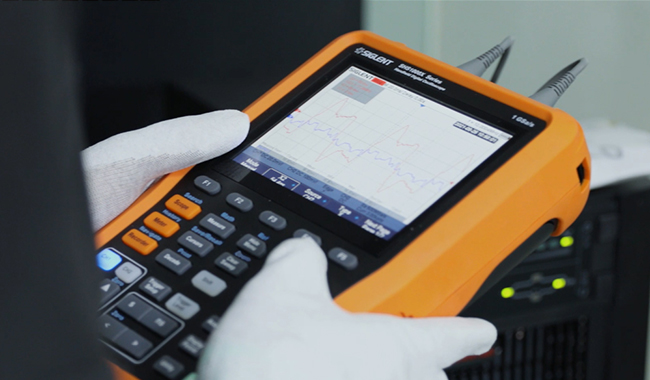

Full Isolation
IEC61010-2-030 defines measurement categories that rate the ability of measuring instruments to withstand short-term transient overvoltages outside the operating voltage.
For SHS1000X series, the max voltage input to the analog scope inputs is CATIII 600 Vrms, CATII 1000 Vrms, and the max input for the multimeter is CATIII 600 Vrms, CATII 1000 Vrms.
SHS1000X series features full isolation between the two oscilloscope channels, one multimeter channel, power adapter and the USB host/device port. The full isolation makes it ideal for both laboratory and floating signal measurement because it reduces the risk of accidental short circuits.
Standard Serial trigger and decode View more

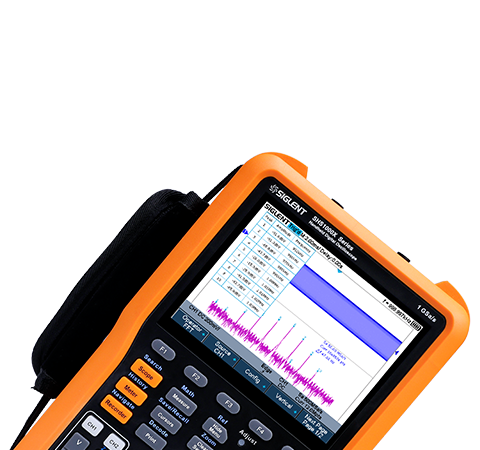

Standard Serial trigger and decode
Standard Serial trigger and decode: IIC, SPI, UART, CAN, LIN, widely used in automotive and embedded industries. Because of its unique portable design and battery power supply, it can better meet the testing needs of the automotive and embedded industries that require on-site decoding.
Hardware-based True RMS multimeter View more
Hardware-based True RMS multimeter

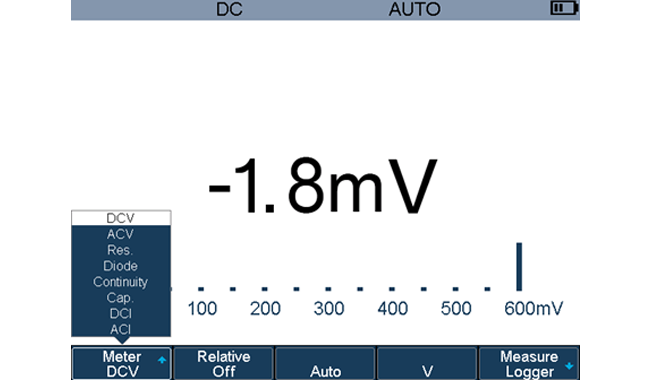

Integrated 6000 count (~ 3.5 digit) digital multimeter
Hardware-Based True RMS Measurement
Features up to 4-channel measurement value trend graphing that can store 3.5 M measurement points
IP Rating: IP51 View more

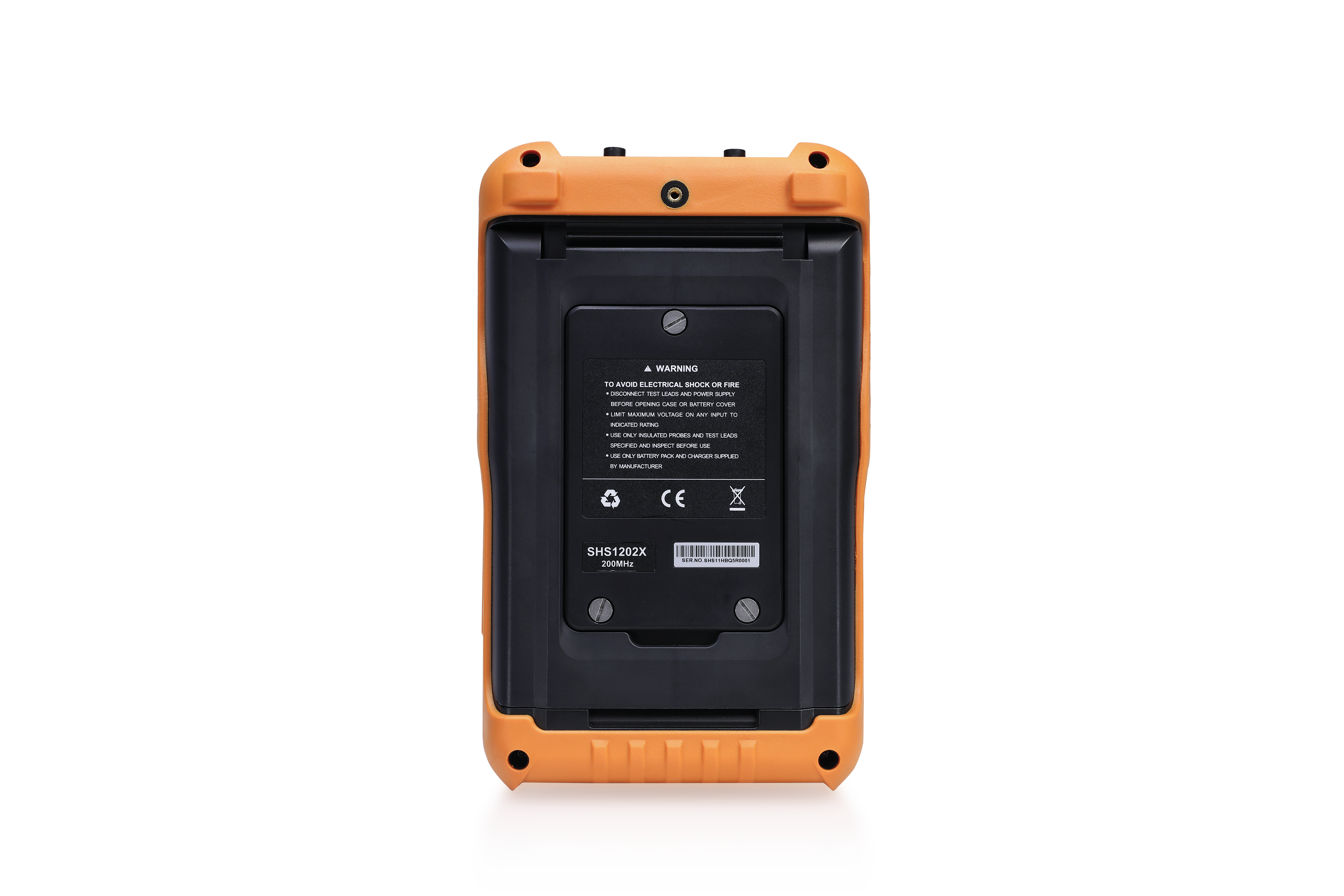

IP Rating: IP51

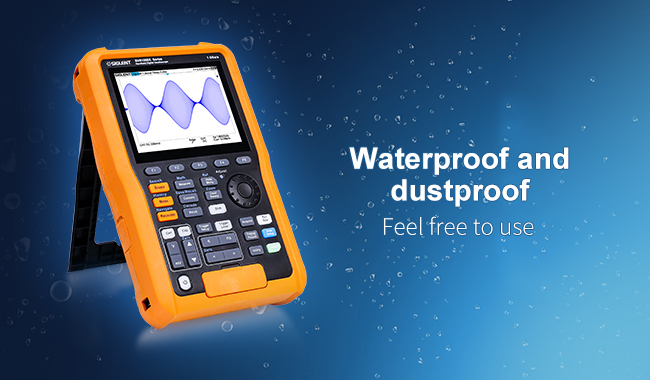

The handheld oscilloscopes feature a sealed IP51 dust and drip-proof housing and has been tested to IEC60529 to guarantee the ruggedness that is needed to survive harsh environments. A rubberized surface with large keys also makes it easy to use in difficult environments.

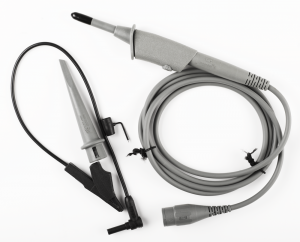

Standard Accessories
SHSX 600 mA Current Measurement Adapter
SHS800X, SHS1000X current measurement accessory, 600 mA range
Learn more
Optional Accessories
SHSX 10A Current Measurement Adapter
SHS800X, SHS1000X current measurement accessory, 10 A range
Learn more
